Environmental Test Equipment

Ingress Protection, Rain & Mechanical Test Equipment

IP Rain, Spray, Jet and Dust Testing, plus IK Impact and Physical Stress Testing

A product's IP or IK rating on a datasheet is only as credible as the test equipment used to verify it, and ingress protection and mechanical durability testing cover meaningfully different failure modes — water and dust ingress, impact resistance, drop and shock survivability, vibration endurance, and transport packaging integrity each require purpose-built equipment rather than a single general-purpose tester.

On the ingress side, this range spans the full IP waterproof test family from rain, drip and spray testing (IPX1–IPX4) through immersion (IPX7/IPX8) to high-pressure jet testing (IPX9K, via the JL-9K1L and related equipment) — each IP digit corresponds to a distinct test method and severity, so equipment needs to match the specific rating being verified, not just the general "waterproof" requirement. Dedicated IEC 60335-2-42 and UL 1598 splash and spray devices address ratings tied to specific product standards where the general IP test method doesn't apply directly.

Impact resistance is covered by IK impact testers spanning IK01 through IK10 (0.14J to 20J impact energy), plus spring impact hammer calibration devices to verify the testers themselves remain in calibration — an impact tester that's drifted out of calibration produces IK ratings that don't reflect the actual standard. Vibration testing is available with CNAS/ISO 17025 accreditation, relevant wherever a test report needs to be accepted by a customer or certification body requiring accredited test data rather than in-house verification alone.

Drop, shock, and packaging testing round out the range: rotating barrel and standard drop test machines, a hydraulic vertical shock test bench, pendulum impact devices, and box/carton compression testers for transport and packaging qualification to IEC and ASTM standards — covering the handling and shipping stresses a product experiences between manufacture and end use, distinct from in-service durability testing.

For enclosed, chamber-based rain testing of larger products, see Sonacme's Rain Test Chambers: four chambers covering IPX1/2, IPX3/4, IPX5/6 and IPX9K, summarised at the bottom of this page.

Frequently Asked Questions

Do I need a different tester for each IP rating, or does one machine cover the range?

Different IP digits correspond to genuinely different test methods — splash, spray, immersion, and high-pressure jet testing each use different equipment and procedures rather than the same machine at different settings. The right equipment depends on which specific IP rating (or range of ratings) the product needs to be verified against.

Why does vibration testing accreditation (CNAS/ISO 17025) matter?

Accredited test data carries recognised validity for customers, regulators, or certification bodies that require testing performed under a formally audited quality system, rather than accepting in-house test results alone. Where a product's end customer or certification pathway requires accredited data, using accredited vibration testing avoids having to repeat the test elsewhere.

What's the difference between drop testing and shock testing?

Drop testing evaluates how a product survives an actual fall from a defined height, testing the combined effect of impact orientation, packaging, and structural design. Shock testing (via a shock test bench) applies a controlled, defined shock pulse of specific magnitude and duration, isolating a more precise, repeatable mechanical stress than a real-world drop provides — the two methods are often used together rather than as substitutes.

Ingress Protection, Rain & Mechanical Test Equipment
Inquire About This Range →
JL-XC Series IPX1–IPX8 Waterproof Test Chambers
IP Waterproof Testing — General & High-Pressure
General-purpose spray/drip testing across IPX1–IPX8, plus high-pressure jet and UL rain-specific test methods.
View Product Details →
ModelIP rating / testKey parametersStandard
JL-XC series (JL-X)IPX1–IPX8: drip, oscillating tube and jet configurationsDrip boxes 600–1200mm; oscillating tubes R200–R800mmIEC 60529, ISO 20653View
JL-9K1LIPX9K high-pressure hot water jet8–10MPa, 14–16 L/min, water to 80°C, 4 anglesIEC 60529 Cl. 14.2.9, ISO 20653View
JL-ULUL rain + 45° spray3 rain nozzles + 1 spray nozzle, hand-cranked liftUL 60507, UL 1598, ANSI Z21.58View

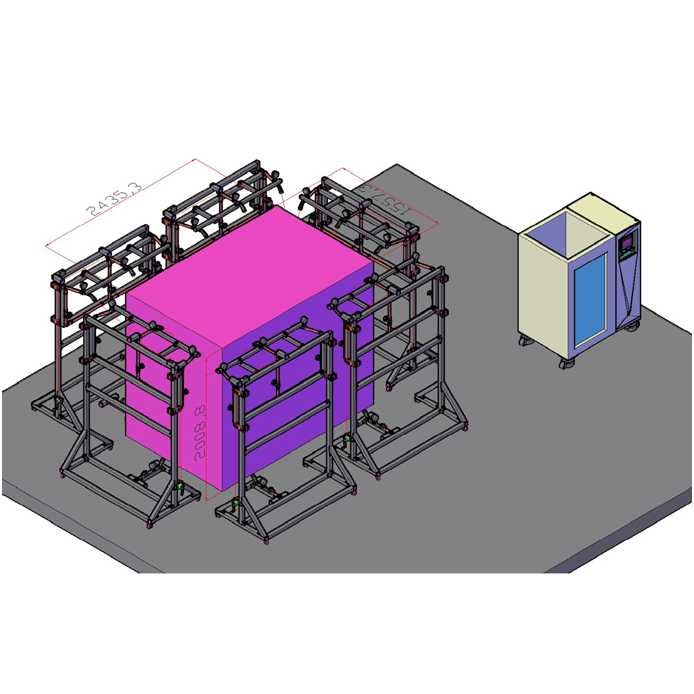

LISUN JL-ULX1 UL 1598 Water Spray Test Device
IP Waterproof Testing — Standard-Specific
Purpose-built water ingress test devices for specific product standards.
View Product Details →
ModelTestKey parametersStandard
UL 1598 Water Spray Test DeviceRain and 45° spray for wet-location luminaires6 frames, 24 nozzles at 34.5kPa; samples to 2435×1557×2009mmUL 1598 Cl. 19.17View
IEC 60335-2-42 Splash Water Test DeviceSplash water for commercial kitchen equipmentFig. 104 / 101 / 102 apparatusIEC 60335-2-42, -2-64, -2-36View

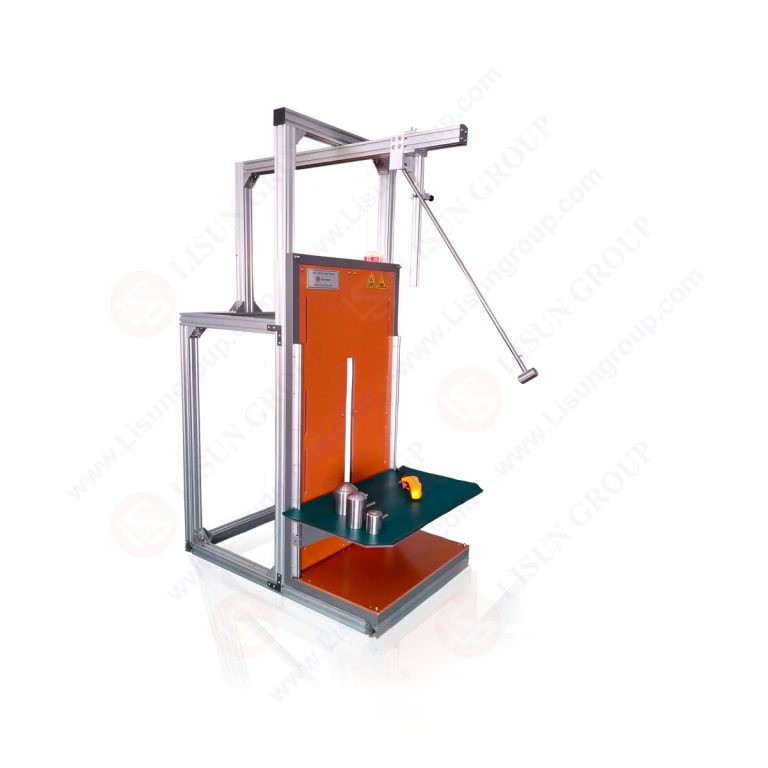

LISUN IK07-10 Pendulum Impact Hammer IK Level Tester
IK Impact Testing
Enclosure impact resistance testing across the full IK rating range, plus calibration equipment for the spring hammer method.
View Product Details →
ModelImpact methodEnergy rangeStandard
IK07-10Pendulum, 1000mm arm2–20J (IK07–IK10; IK11 50J optional)IEC 60068-2-75 Eha, IEC 62262View
IK07-10VTVertical drop hammer, 200–600mm2–20J (IK07–IK10)IEC 60068-2-75 Ehc, IEC 62262View
IK01-06Spring hammer, hand-held0.14–1J (IK01–IK06; IK07 2J single hammer)IEC 60068-2-75 Ehb, IEC 62262View
IK01-07-CALCalibrator for spring hammers0–2J, ±0.01J repeatabilityIEC 60068-2-75 Annex BView

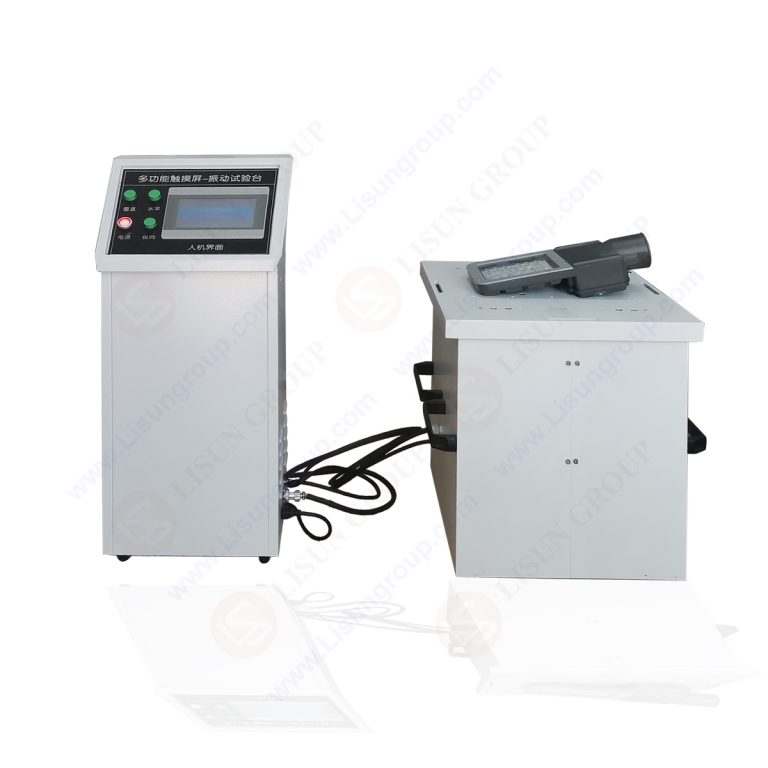

LISUN LVD-100KG Electrodynamic Vibration Generator System
Vibration Testing & Measurement
Vibration generation systems for transport/durability testing, plus handheld meters for field vibration measurement.
View Product Details →
ModelTypeKey parametersStandard
LVD-100KG-6DElectrodynamic shaker, 4 or 6 directions100kg, 1–600Hz, 0–20g, 0–5mm p-pIEC 60068-2-6, ASTM D999View
LVD-AT01 to AT60 (CNAS)Electrodynamic shaker, sine/random/shock1–60kN, up to 800kg, 5–6000HzIEC 60068-2-6, ASTM D4728View
MEWOI Vibration MetersHand-held meterAcceleration, velocity, displacementISO 10816View

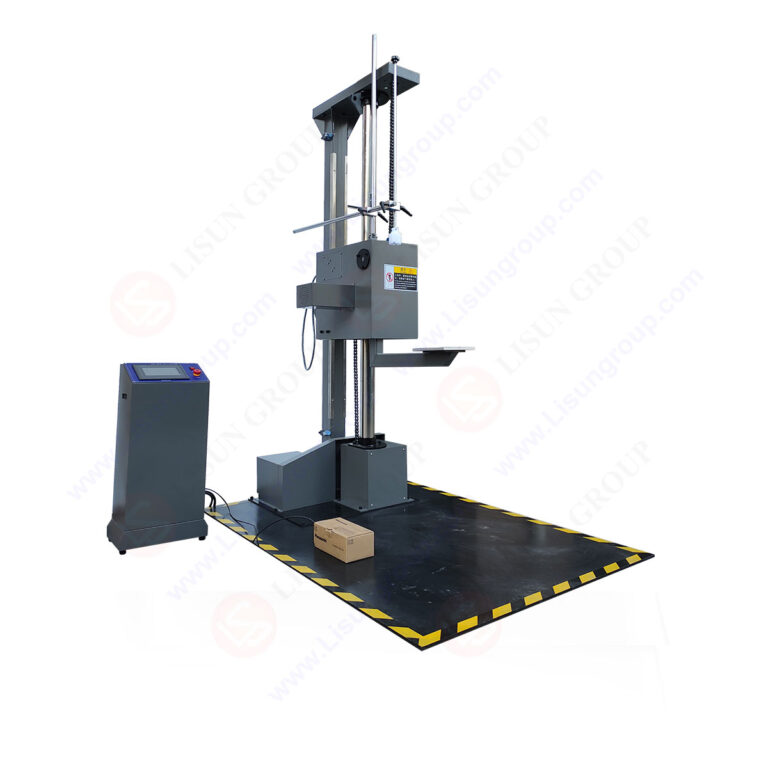

LISUN DT-60KG Automatic Double-Arms Drop Test Machine
Drop, Shock & Pendulum Impact Testing
Simulates transport and handling shocks, tumbling drops, and material impact resistance.
View Product Details →
ModelTestKey parametersStandard
DT series (DT-60KG)Free-fall drop, single or double arm300/400–1500mm drop, 60–100kg samplesISO 2248, ASTM D5276, ISTA 3AView
LS-DDT rotating barrelTumbling barrel drop500mm or 1000mm drop, samples to 5kgIEC 60068-2-31 Annex A, IEC 60884-1View
LS-VS seriesHydraulic vertical shock, half-sine/trapezoid50–1000kg load, half-sine to 6000m/s²IEC 60068-2-27View
IK01-06PPendulum impact for switches and accessories0.14–1J (IK01–IK06), 150g/200g strikersIEC 60068-2-75 Eha, IEC 60669-1View

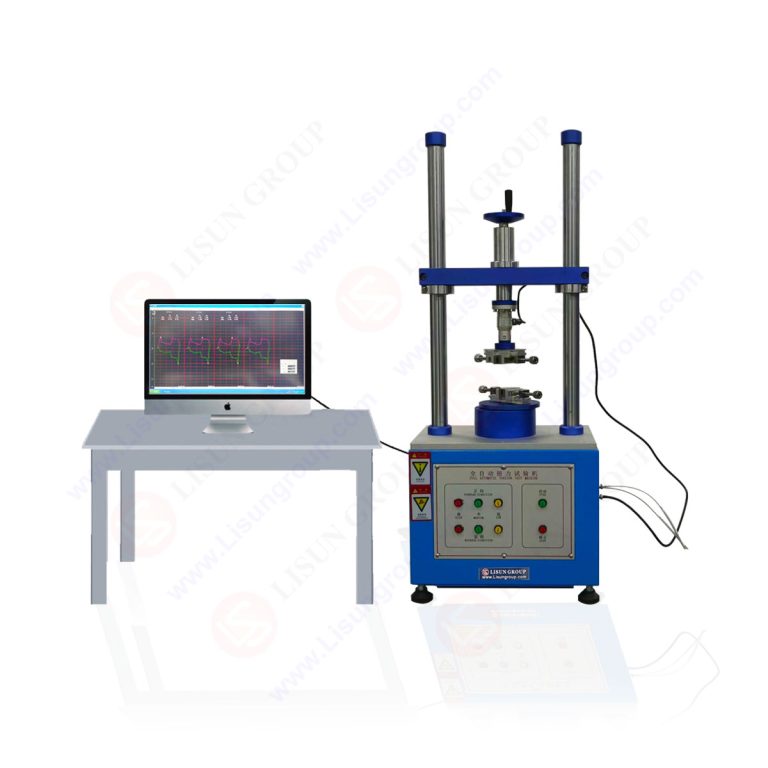

LISUN LS-T2205 Automatic Torque Testing Machine
Mechanical & Packaging Testing
Torque profile verification and compression testing for packaging and shipping qualification.
View Product Details →
ModelTestKey parametersStandard
LS-T2205 / LS-T2205ATorque and torsion10 or 50kgf·cm max, 2–15,000°/minISO 16047, ISO 6789View
LS-PUSH seriesBox and carton compression1000–5000kg, 600–1200mm test spaceASTM D642, ISO 12048, TAPPI T804View
Hosedown Test Apparatus
High-Volume Hosedown & Mechanical Durability
UL 50E hosedown testing plus power-tool durability rigs for impact and glancing-blow mechanical strength.
View Product Details →
ModelTestKey parametersStandard
JL-UL50EC86 hosedownHosedown water stream25mm nozzle, 170 or 240 L/minUL 50E Cl. 8.4.1.2View
LS60745-F103Hammer / impact drill enduranceTools up to 2.5kW; axial force 100–400NIEC 60745-2-1, -2-6View
LS-UL2556F17Glancing impact (45°)0.454kg hammer, 1390mm guide tubeUL 2556 Cl. 7.14.2View

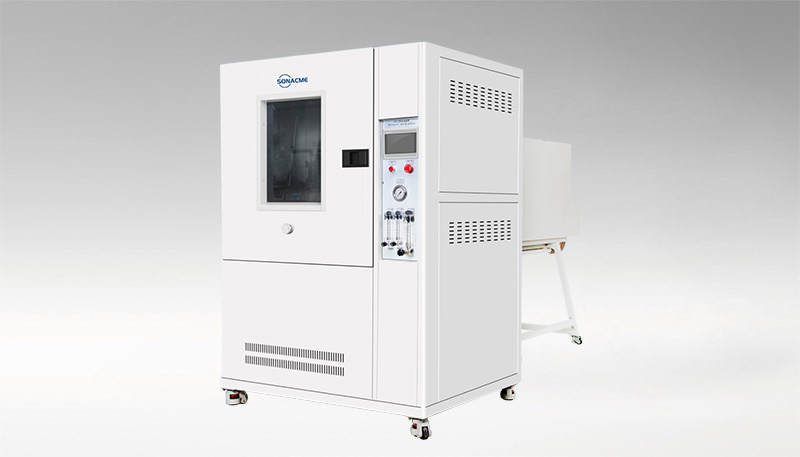

Sonacme Rain Test Chamber IPX Water Ingress Testing
Rain Test Chambers (Sonacme)
Enclosed chambers for larger products and production QC, one per IEC 60529 water test method. Each has a test space of about 1m³, so choose by IP rating.
View Rain Chambers →
ModelIP rating testedTest methodTest space W×H×D
SR/IPX12/1000IPX1, IPX2Drip box, 3–5mm/min1000×1000×1000mmView
SR/IPX34/1000IPX3, IPX4Oscillating spray tube, R400mm1000×1000×1000mmView
SR/IPX56/1000IPX5, IPX6Water jet, 12.5 or 100L/min1000×1080×1050mmView
SR/IPX9K/1000IPX9K80°C high-pressure spray, 8000–10000kPa1000×1080×1050mmView
Send an Enquiry →Send an Enquiry →

Related Reading

Where This Fits

IP and IK ratings verify different failure modes and use different rigs. LISUN's JL-series (JL-X, JL-XC, JL-9K1L, JL-UL, JL-ULX1, JL-IWJ-010) and SC-015 cover IEC 60529 water and dust ingress testing from IPX1 through IPX9K and IP5X/IP6X, including specific UL 1598 and UL 50E hosedown variants for luminaire certification — a distinct requirement from the general IEC 60529 spray tests. IK impact resistance and drop/shock testing verify mechanical robustness instead, and are typically specified alongside IP testing in enclosure and luminaire standards rather than substituting for it, since a product can be fully waterproof and still fail an impact test, or vice versa.
