LISUN JL-XC Series IPX1–IPX8 Waterproof Test Chambers

Overview

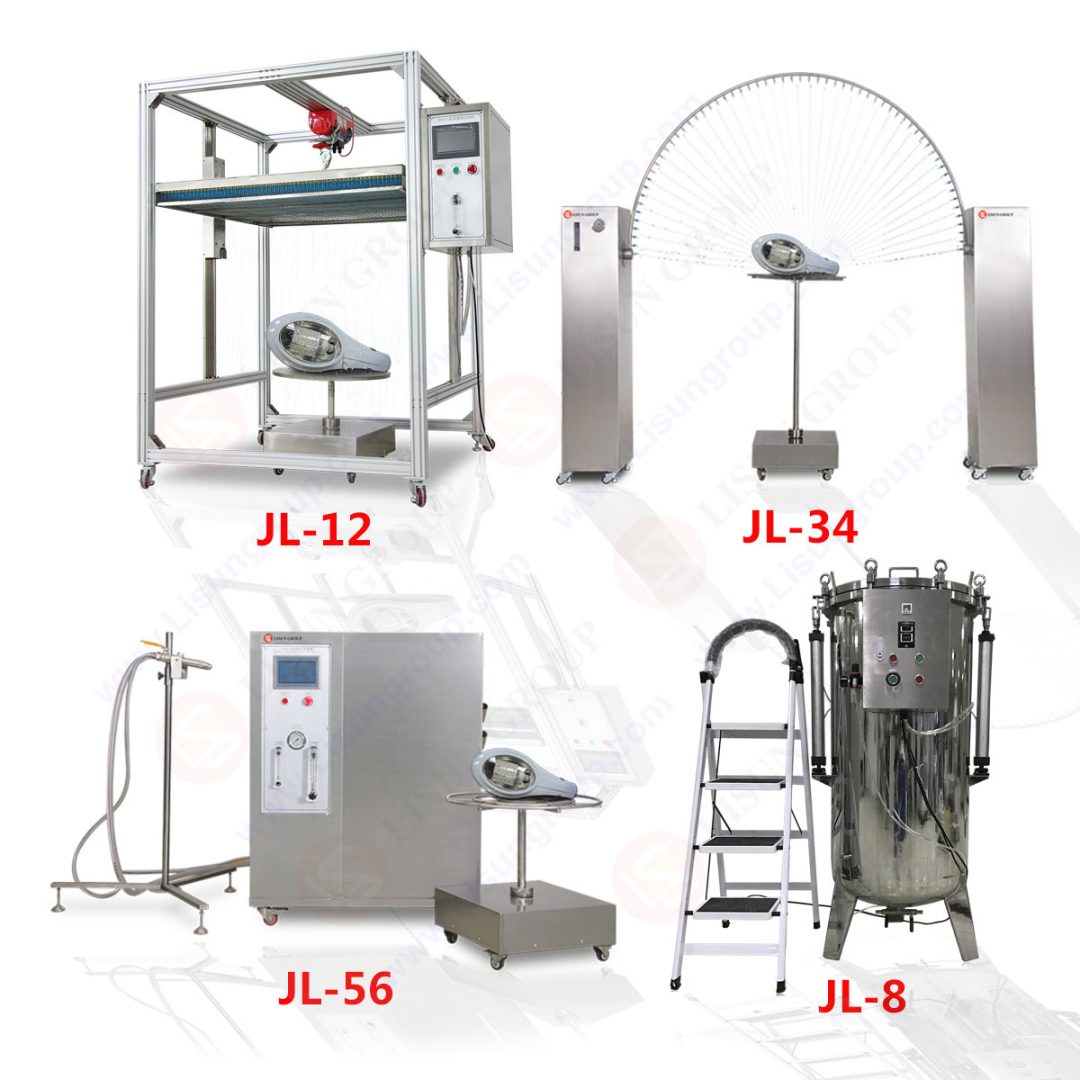

The LISUN JL-XC series covers the water tests of IEC 60529 and ISO 20653 for enclosures of electrical appliances, luminaires, automotive parts and other products: dripping water (IPX1, IPX2), spraying and splashing (IPX3, IPX4 and IPX4K), water jets (IPX5, IPX6 and IPX6K) and immersion (IPX7, IPX8). Chambers can be bought for one pair of tests or combined, and the touchscreen lets the operator choose the IP rating and runs the matching standard test.

Range

Construction

The outer case is baked-enamel steel; the inner chamber (1.2mm), turntable and all wetted parts are SUS304 stainless steel. Drip trays are dried with compressed air to stop scale blocking the 0.4mm holes. Oscillating tubes are driven by a servo stepper motor for accurate speed and angle. Jet chambers hold the nozzle on a fixed mount, so no one has to hold a hose. A filter protects the nozzles, the internal tank recirculates water with float-valve top-up and level alarms, and the turntable can reverse so powered samples do not wind up their cables. A 220V/10A outlet powers the sample.

Key Specifications

IPX1/IPX2 drip chambers (JL-12CP)

ModelJL-12CP-600MJL-12CP-800MJL-12CP-1000MJL-12CP-1200M
Inner size (W × D × H)800 × 800 × 1000mm1000 × 1000 × 1000mm1200 × 1200 × 1250mm1400 × 1400 × 1450mm
Drip plate600 × 600mm800 × 800mm1000 × 1000mm1200 × 1200mm
Drip holesØ0.4mm at 20 × 20mm pitch
Drip rate1–3mm/min, manual
TurntableØ600mm, 50kg, tilt 0° or 15°

IPX3/IPX4 oscillating tube chambers (JL-34CP)

ModelJL-34CP-R200JL-34CP-R400JL-34CP-R600JL-34CP-R800
Inner size (W × D × H)500 × 500 × 500mm900 × 900 × 900mm1300 × 1300 × 1300mm1700 × 1700 × 1700mm
Tube radiusR200mmR400mmR600mmR800mm
Flow IPX3 / IPX40.56 / 0.84 L/min1.1 / 1.8 L/min1.8 / 2.6 L/min2.3 / 3.5 L/min
TurntableØ200mmØ400mmØ600mmØ800mm
Swing angleIPX3 ±60°; IPX4 ±175°

IPX5/IPX6 jet chambers (JL-56CP)

ModelJL-56CP-200LJL-56CP-500LJL-56CP-1000LJL-56CP-1400LJL-56CP-2200LA
Inner size (W × D × H)600 × 600 × 600mm800 × 800 × 800mm1000 × 1000 × 1000mm1180 × 1180 × 1000mm1300 × 1300 × 1300mm
TurntableØ400mmØ600mmØ600mmØ800mmØ800mm
NozzleIPX5 Ø6.3mm; IPX6 Ø12.5mm; IPX6K Ø6.3mm
FlowIPX5 12.5 L/min; IPX6 100 L/min; IPX6K 75 L/min
Spray distance2.7m
Power380V three phase

IPX4K and IPX6K to ISO 20653 need the dedicated K models. IPX7 and IPX8 immersion tanks are also available. 50Hz standard, 60Hz to order.

Features

Applications

Frequently asked questions

Do I need separate chambers for each IP rating?

Not necessarily. Combined JL-1234CP (IPX1–4) and JL-3456CP (IPX3–6) chambers cover several ratings in one unit; separate chambers allow tests to run in parallel.

How do I choose the oscillating tube size?

The tube radius has to suit the size of the sample. Tell us your largest sample and we will recommend the model.
