EMC Test Equipment for Every Test
Every electronic product faces four kinds of EMC test: conducted and radiated emissions, which check it does not interfere with other equipment, and conducted and radiated immunity, which check it keeps working when interference reaches it. ESD and transient tests sit under immunity. Each needs its own equipment and setup. The table shows what goes into each test and where to find it.
| Test | Common standards | Core EMC test equipment |
| Conducted emissions | CISPR 11, 14-1, 15, 32; CISPR 25; MIL-STD-461 CE101/CE102 | LISN or artificial network, EMI receiver, current probes. Conducted emissions systems |
| Radiated emissions | CISPR 11, 32; CISPR 25; MIL-STD-461 RE102; DO-160 Section 21 | EMI receiver, broadband antennas, preamplifiers, chamber. Radiated emissions systems |
| Radiated immunity | IEC 61000-4-3; ISO 11452-2; MIL-STD-461 RS103; DO-160 Section 20 | Signal generator, RF power amplifier, transmit antennas, field probe, chamber. Radiated immunity systems |
| Conducted immunity | IEC 61000-4-4, -4-5, -4-6, -4-8, -4-11; ISO 7637-2; ISO 11452-4; MIL-STD-461 CS114 | EFT/burst, surge, CDN and BCI systems, dips and interruptions, magnetic field. Conducted immunity systems |
| ESD | IEC 61000-4-2; component HBM and CDM | ESD simulator, discharge networks, ground plane. ESD simulators |
| Test environment | CISPR 16-1-4; IEC 61000-4-3 | Semi-anechoic or reverberation chamber, GTEM cell, shielded room. EMC test chambers |
Our EMC standards cross-reference compares commercial, automotive, military and aerospace standards side by side.
Emissions Testing Equipment
Emissions testing measures the noise a product puts back onto its power leads and into the air.

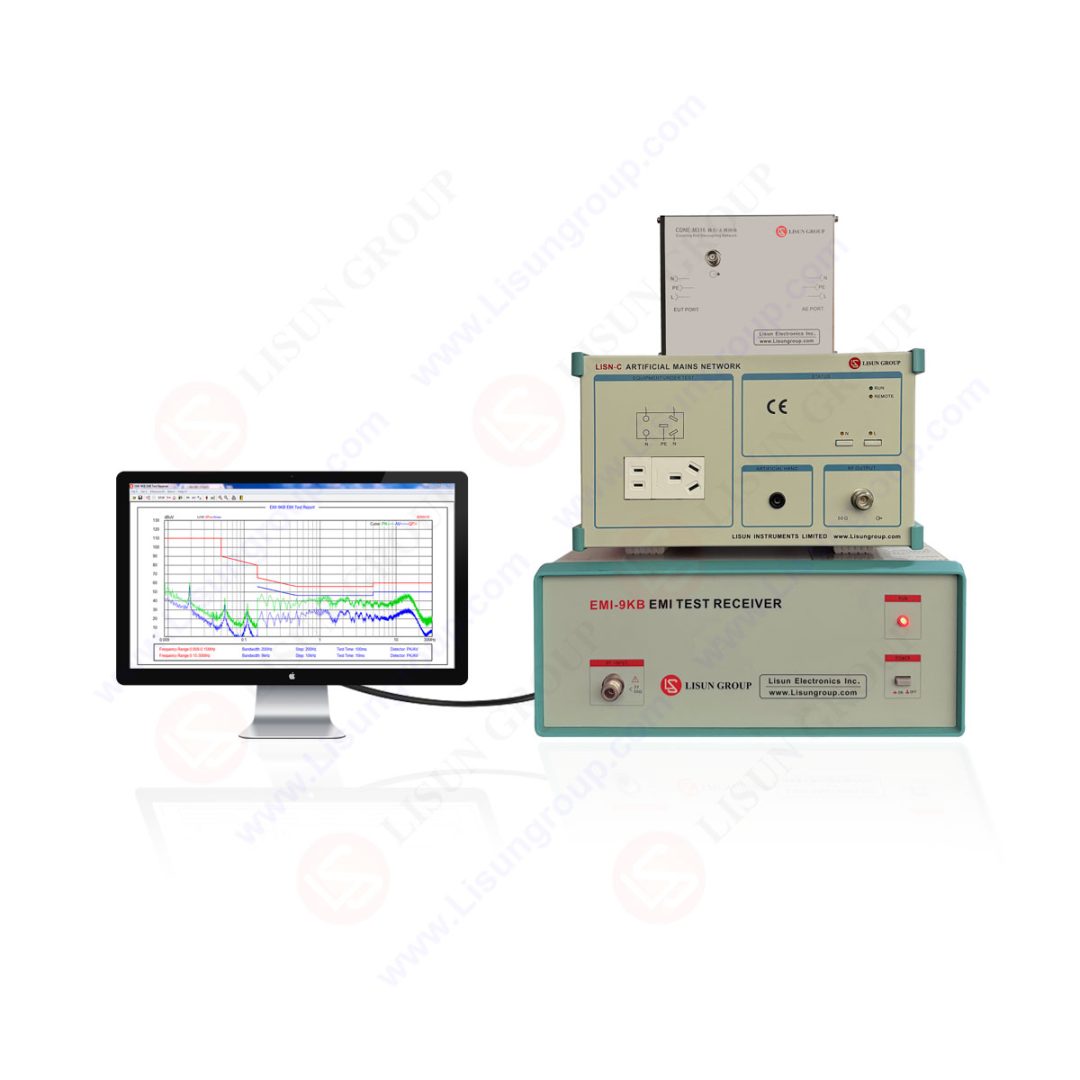

- EMI receiver: a CISPR 16-1-1 compliant receiver with quasi-peak, average and peak detectors for compliance; a spectrum analyser can do pre-compliance scans. See CISPR 16 explained.

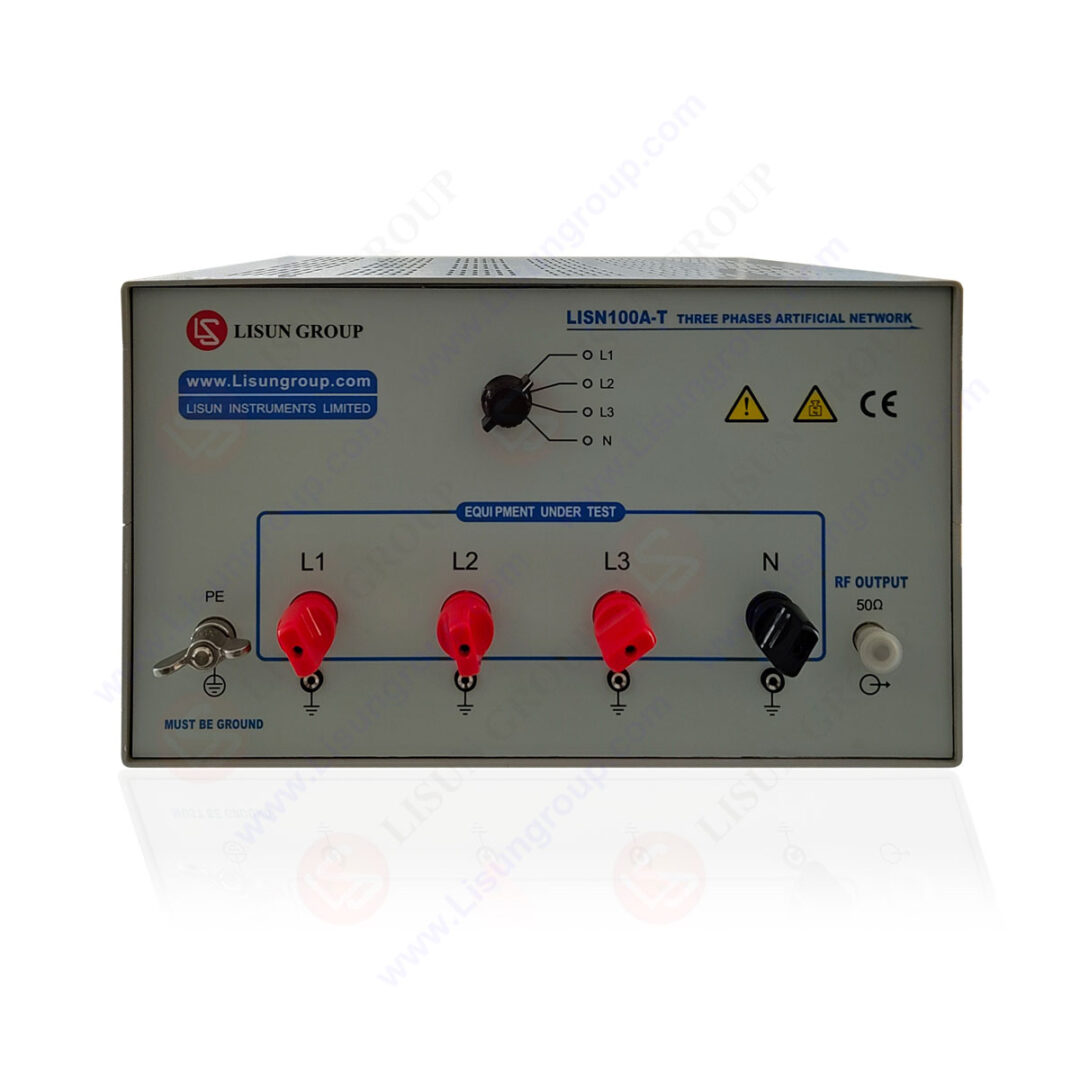

- LISN: a 50 µH/50 Ω LISN for commercial products, a 5 µH artificial network for automotive, and 50 µH LISNs on each power lead for MIL-STD-461. Read LISN selection for conducted emissions.
- Antennas and preamplifiers: rod, biconical, log-periodic and horn antennas cover the bands, and a preamplifier lifts weak signals above the receiver noise floor. See EMC antennas and EMI preamplifiers explained.
Immunity Testing Equipment
Immunity testing applies a defined disturbance and checks the product keeps working to its performance criterion.

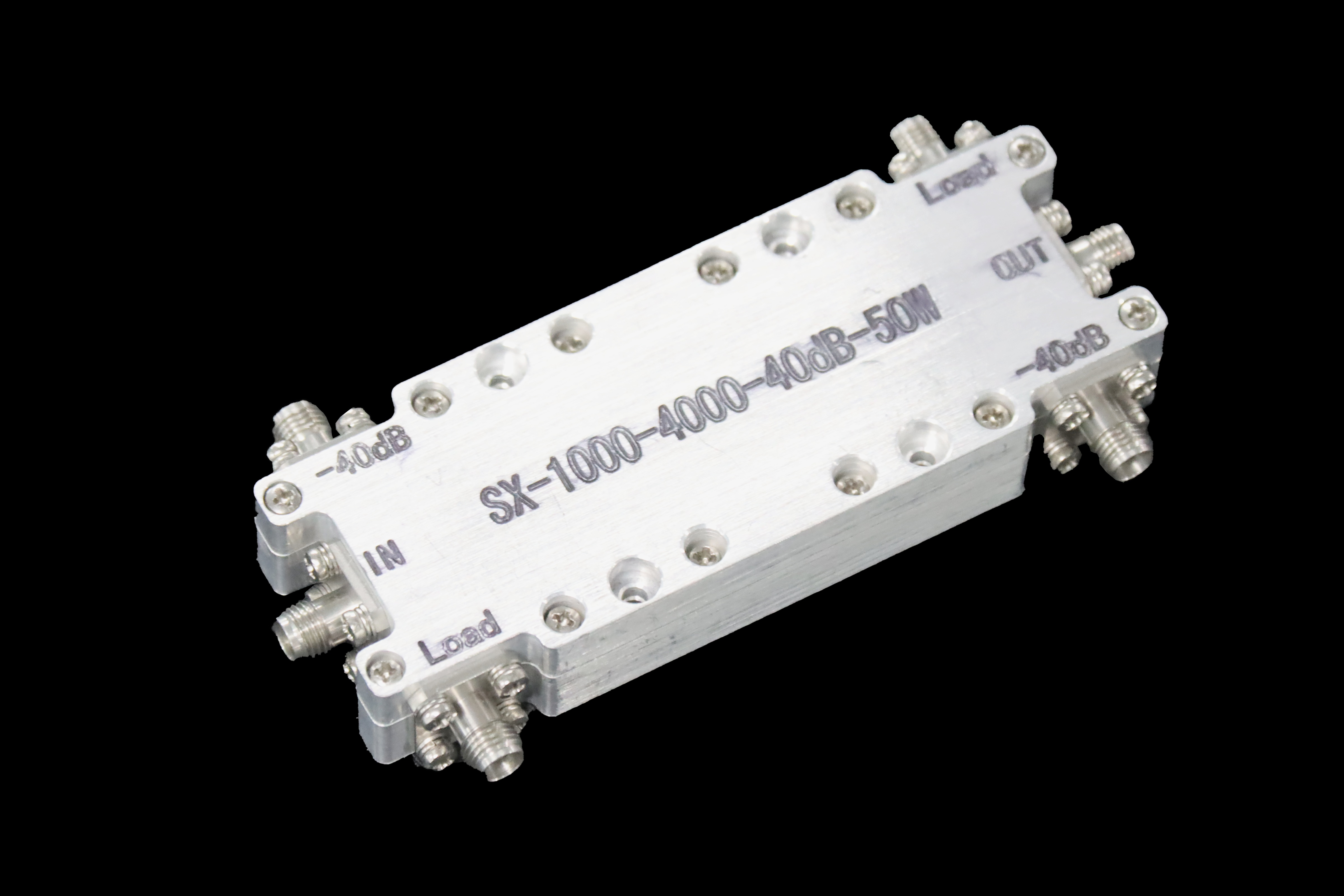

- RF power amplifiers: the amplifier sets the field strength you can reach and is usually the largest single cost in a radiated immunity system. Size it from the field strength, frequency range, antenna gain and distance. Read amplifier selection for IEC 61000-4-3, CW vs pulsed amplifiers and solid-state vs TWT amplifiers, or browse RF EMC power amplifiers.
- Conducted RF immunity: coupling and decoupling networks or bulk current injection put RF onto cables. See conducted RF immunity to IEC 61000-4-6.

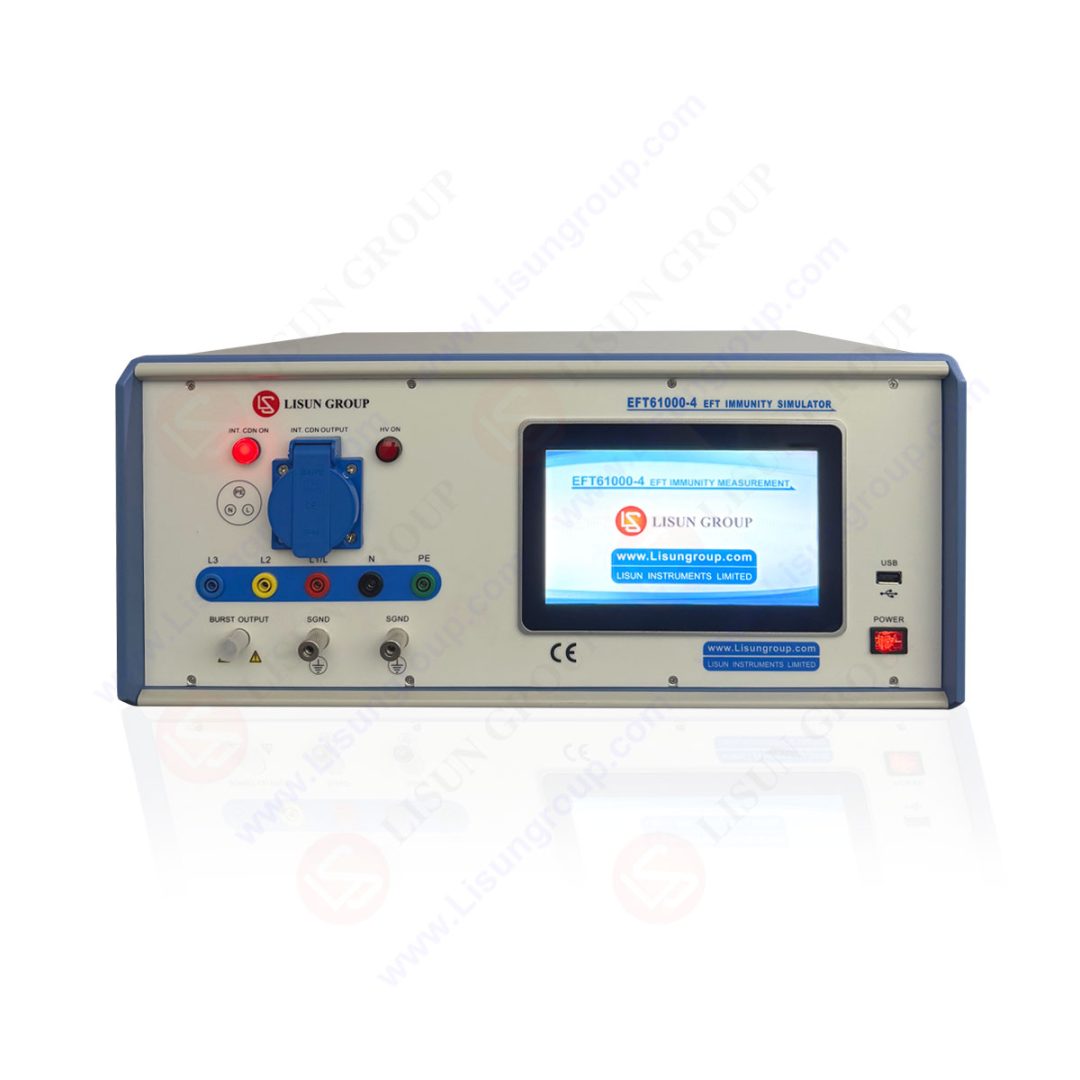

- Transients: surge, EFT/burst, dips and interruptions, and automotive pulses each need their own generator. Read surge immunity testing.

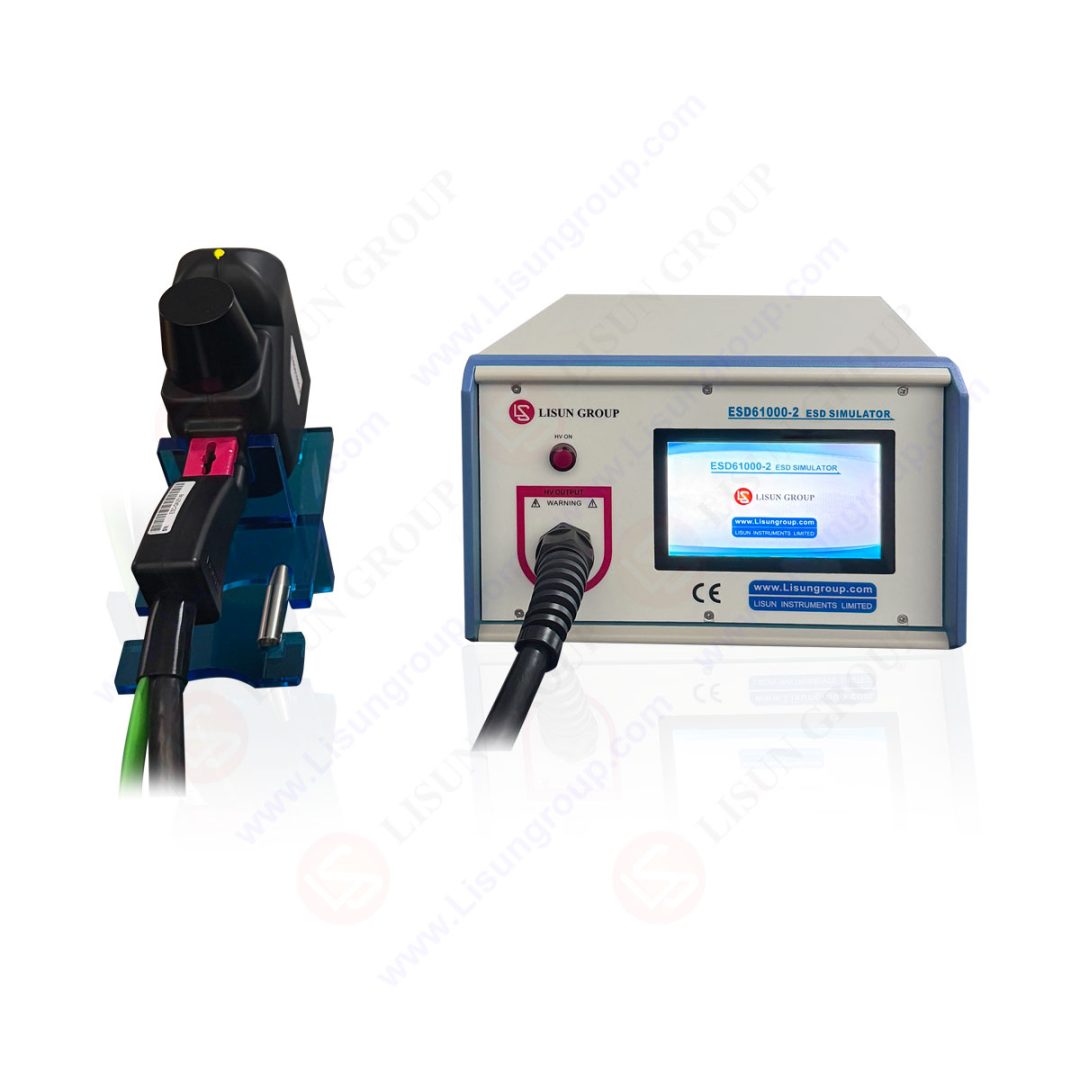

- ESD: contact and air discharge to IEC 61000-4-2. Read ESD testing explained.
Why Products Fail EMC Testing
Switching power supplies, fast clocks, poorly bonded cables and broken return paths cause most failures. Finding them early with pre-compliance testing is far cheaper than failing at an accredited lab and redesigning late.
Pre-Compliance or Full Compliance?
| Pre-compliance | Full compliance lab |
| Purpose | Find and fix problems during design | Formal test results for certification or contracts |
| Typical setup | Spectrum analyser or receiver, LISN, near-field probes, GTEM cell or shielded box, ESD gun | CISPR 16 receiver, calibrated antennas, validated chamber, full immunity systems |
| Who buys it | Product designers and manufacturers | Test labs, defence and automotive suppliers, large OEMs |
Not sure whether a shielded box or a chamber will do? See shielded box vs EMC chamber.
Military, Aerospace and Automotive EMC
- MIL-STD-461 and GJB151 for defence equipment.
- RTCA/DO-160 for airborne equipment.
- CISPR 25 and ISO 11452 for vehicle components, and EV drivetrain EMC.
EMC Test Equipment in Australia and New Zealand
Finch supplies EMC test equipment from RF Technology, RFlight, Bonn Elektronik and LISUN across Australia and New Zealand, from a single ESD simulator to a complete lab with chamber, amplifiers, antennas, receivers and immunity systems. We can scope the equipment from your standards list, check amplifier sizing against your field strength and distance, and support installation from Melbourne.
Building or upgrading an EMC lab? Send us your standards list and we'll put together the equipment you need.
Frequently Asked Questions
What equipment do I need for EMC testing?
At minimum an EMI receiver or spectrum analyser, a LISN and antennas for emissions, plus an ESD simulator, transient generators and an RF amplifier with antenna or coupling networks for immunity. A shielded chamber or GTEM cell controls the test environment.
What are the four types of EMC test?
Conducted emissions, radiated emissions, conducted immunity and radiated immunity. ESD and transient tests are usually grouped under immunity.
Can I do EMC pre-compliance testing in-house?
Yes. A spectrum analyser or receiver, LISN, near-field probes and an ESD simulator let design teams find most problems before formal testing, and a GTEM cell or shielded box adds radiated measurements for small products.
How do I size an RF amplifier for radiated immunity?
Work back from the required field strength, test distance, antenna gain and frequency range, then add margin for modulation and cable loss. Our IEC 61000-4-3 amplifier selection guide walks through the calculation.
Do you supply EMC test equipment in New Zealand?
Yes. Finch supplies and supports EMC test equipment across Australia and New Zealand.
