LISUN JL-UL UL Rain and 45° Spray Test Device

Overview

The LISUN JL-UL tests how electrical and electronic products, luminaires, cabinets and components stand up to rain. It is built to UL 60507 Figures 38.1 and 38.2, ANSI Z21.10.3, ANSI Z21.58 and CSA 4.3, and is used for the rain tests in UL 1598, UL 153, UL 154B, UL 1703, UL 8750, UL 1741, UL 514B, UL 1278 and UL 1571, for design, improvement, verification and factory inspection.

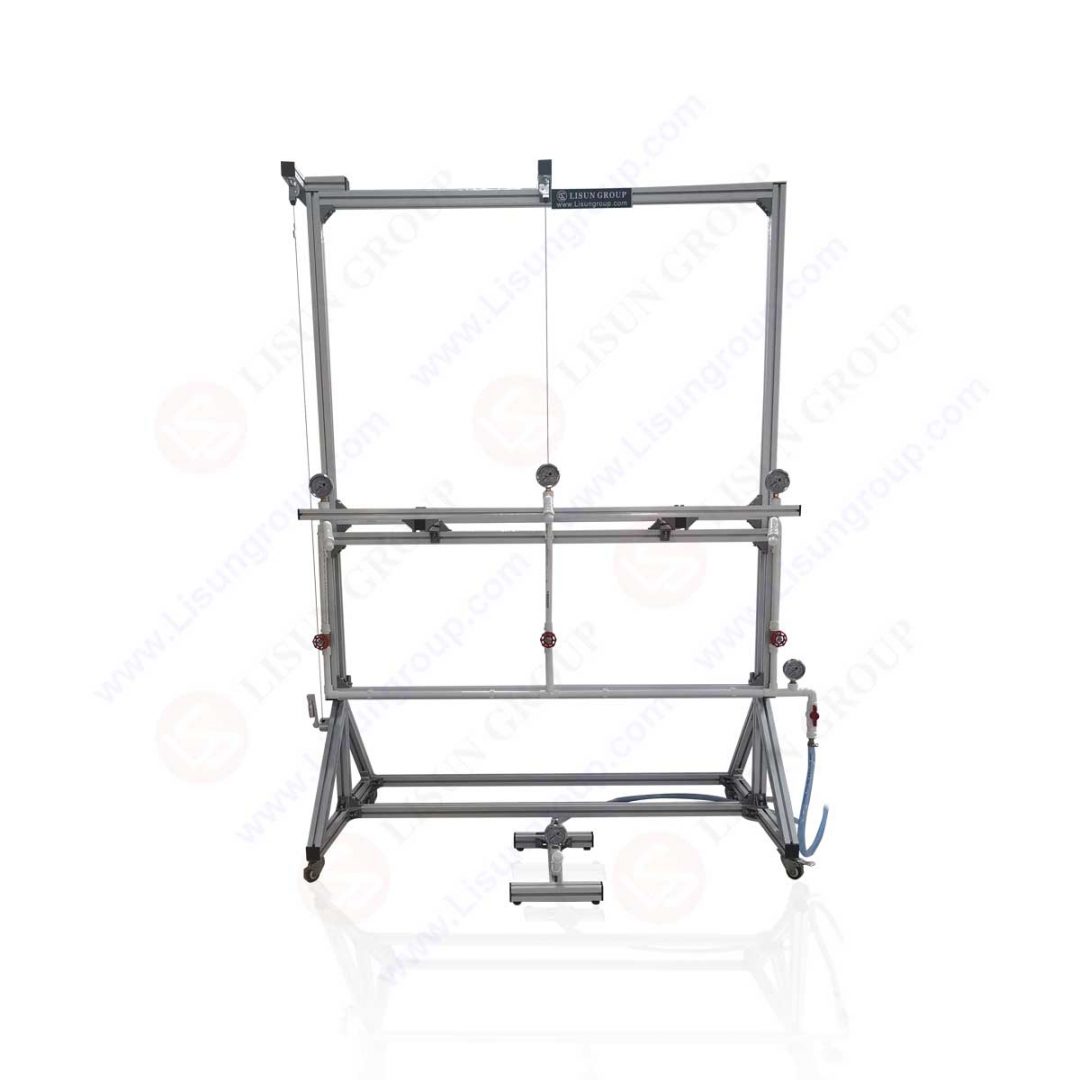

The device has two parts: a rain head with three UL nozzles at the top, and a single UL nozzle at the bottom for the 45° spray test. The nozzles are the original type used in UL laboratories. Each nozzle has its own stainless steel pressure gauge so the water pressure can be set and checked.

Construction

The frame is moulded aluminium, which is stable and easy to clean. The nozzle rack moves up and down on a hand-cranked stainless steel mechanism, and the base runs on braked universal castors so the device can be moved and locked in place. For large products, LISUN also offers a six-frame UL 1598 system.

Key Specifications

ParameterValue
TestsUL rain test and 45° spray test
Nozzles3 UL nozzles (rain head) + 1 UL nozzle (45° spray)
Nozzle standardUL 60507, UL 484, ANSI Z21.10.3, ANSI Z21.58, ANSI B94.11M, CSA 4.3
Pressure gaugesOne stainless steel gauge per nozzle
FrameMoulded aluminium
Height adjustmentHand-cranked stainless steel lift
BaseUniversal castors with brakes

Features

Applications

Frequently asked questions

What is the difference from the six-frame system?

The JL-UL is a single rain and spray unit for typical samples. The six-frame UL 1598 system surrounds large products with rain and spray from every side.

Are the nozzles genuine UL types?

Yes. LISUN fits the original nozzle type used in UL laboratories.
