JL-9K1L IPX9K High-Pressure Hot Water Jet Chamber – LISUN

JL-9K1L / JL-6K9K1L / JL-4K6K9K1L-R400 / JL-56K9K1L

LISUN JL-9K1L IPX9K chamber to IEC 60529 and ISO 20653: four nozzles at 0/30/60/90°, 80°C water, 8–10MPa, 14–16 L/min; IPX6K and IPX4K versions.

Environmental Test Equipment
IP Waterproof Test
Floor-Standing Chamber
IEC 60529:2013 Clause 14.2.9; ISO 20653:2023 Clause 5.3.5; DIN 40050-9:2009; VW 80000:2018; GB/T 4208-2017; GB/T 30038-2013; GB/T 7000.1-2023
Enquire About This Product

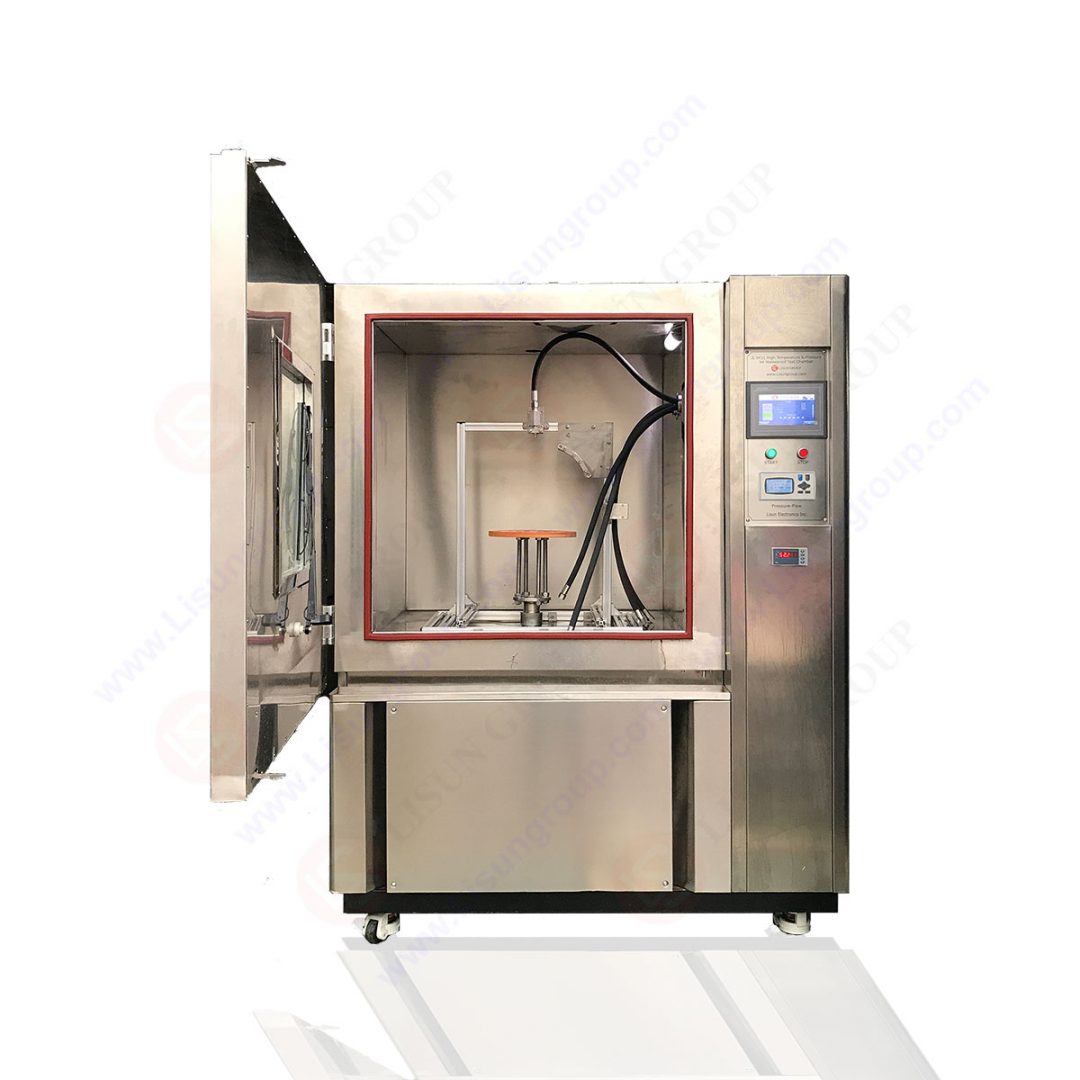

LISUN JL-9K1L IPX9K High-Pressure Hot Water Jet Chamber

Overview

The LISUN JL-9K1L tests enclosures against high-pressure, high-temperature water jets, the IPX9K test of IEC 60529 Clause 14.2.9 and ISO 20653 for road vehicles. It reproduces the steam-cleaning and pressure-washing that vehicle parts and equipment in wash-down areas must survive, and shows the effect on seals, surface materials and internal parts.

Four nozzles are set at 0°, 30°, 60° and 90° around the sample, which turns on a turntable so every surface is sprayed. Water at up to 80°C is delivered at 8 to 10MPa and 14 to 16 L/min, read on a high-temperature electronic flow meter. An adjustable nozzle mount keeps all four nozzles on the same arc at the specified 125mm distance when the distance is changed, and a force calibration fixture to IEC 60529 Figures 10 and 11 is included.

Versions

Key Specifications

ParameterValue
Working chamber1000 × 1000 × 1000mm
Sample sizeUp to Ø350mm and 50kg
Water temperatureUp to 80 ±5°C, with over-temperature and overflow protection
Nozzles4, to IEC 60529 Figures 7, 8 and 9
Spray angles0°, 30°, 60°, 90°
Spray distance125 ±25mm
Flow rate14–16 L/min
Pressure8–10MPa
TurntablesØ400mm and Ø200mm, one of each
Turntable speed1–5 r/min, variable
Test time30s per angle or 3 minutes, settable
ConstructionStainless steel inner and outer cabinet, large window

Features

Applications

Frequently asked questions

What is the difference between IPX9 and IPX9K?

IPX9 is the IEC 60529 high-temperature, high-pressure jet; IPX9K is the ISO 20653 road-vehicle version. The JL-9K1L is built for both.

Can one chamber do IPX6K as well?

Yes. The JL-6K9K1L, JL-4K6K9K1L-R400 and JL-56K9K1L add IPX6K and other tests.
