Standard Test Probes, Fingers & Gauges

IEC, UL, and DIN standard-compliant test probe kits and plug/socket-outlet dimensional go/no-go gauges from LISUN.

IEC, UL, and DIN standard-compliant test probe kits and plug/socket-outlet dimensional go/no-go gauges from LISUN, used to physically verify what a compliance standard requires rather than take a manufacturer's word for it. IEC 61032 test probes each replicate a specific access risk — finger, wire, or pin — and standard test bodies matter because a probe that doesn't precisely match the specified geometry can give a false pass on a genuine hazard.

Plug and socket gauges are similarly standard-specific: IEC/EN/VDE, BS 1363, and UL/CEE geometries aren't interchangeable, so the right gauge set depends on which regional market the product is being certified for. 5 products across 2 series for compliance lab and production-line verification.

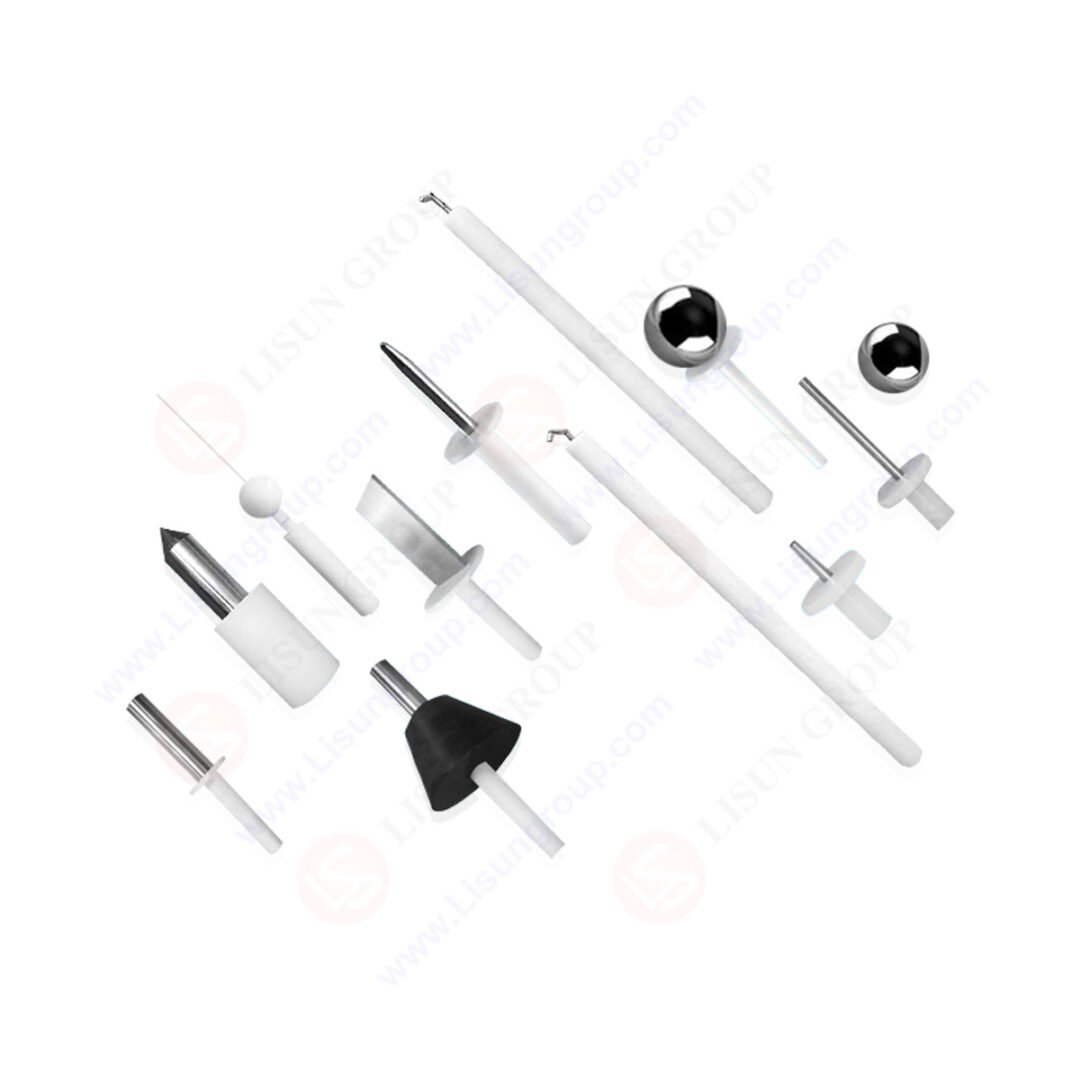

Standard Test Probe Kits
Standard Test Probe Kits — IEC/UL/DIN Series
SMT-529T / 050T / 0368K / 010K / 598K / 601K / 635K / 950K / 065K
Nine standard-specific probe and test-finger kits, each built to the dimensional and force requirements of a particular safety standard — covering general IP ingress (IEC 60529), audio-video (IEC 60065), household appliances (IEC 60335-1), luminaires (IEC 60598), medical equipment (IEC 60601-1), IT/AV equipment (IEC 62368), and UL/DIN equivalents.
Enquire About This Product →
Individual IEC 61032 Test Probes
Individual IEC 61032 Test Probes Series
SMT-1211 / 1213 / 1218 / 1219 / 1241 / B500 / 1201 / PB / PBC / 5753 / 335F7 / TB11
Test fingers, jointed probes (Probe B), ball probes, and access pins from the IEC 61032 range sold individually, so a lab can replace a single worn probe or add one specific type without buying a full kit.
Enquire About This Product →
Plug & Socket Gauges — IEC/EN/VDE Series
GNGPL-5751 / I19 / 631C3 / CEI23 / VDE0620
Covers the European and international plug/socket dimensional standards most commonly required for compliance testing of household and similar plugs.
Key specs: GNGPL-5751 — EN 50075 Fig 1 · GNGPL-I19 — IEC 60065 Fig 9 · GNGPL-631C3 — NF C 61-314 C3 · GNGPL-CEI23 — CEI 23-50 (Italy) · VDE0620 — VDE 0620
Enquire About This Product →

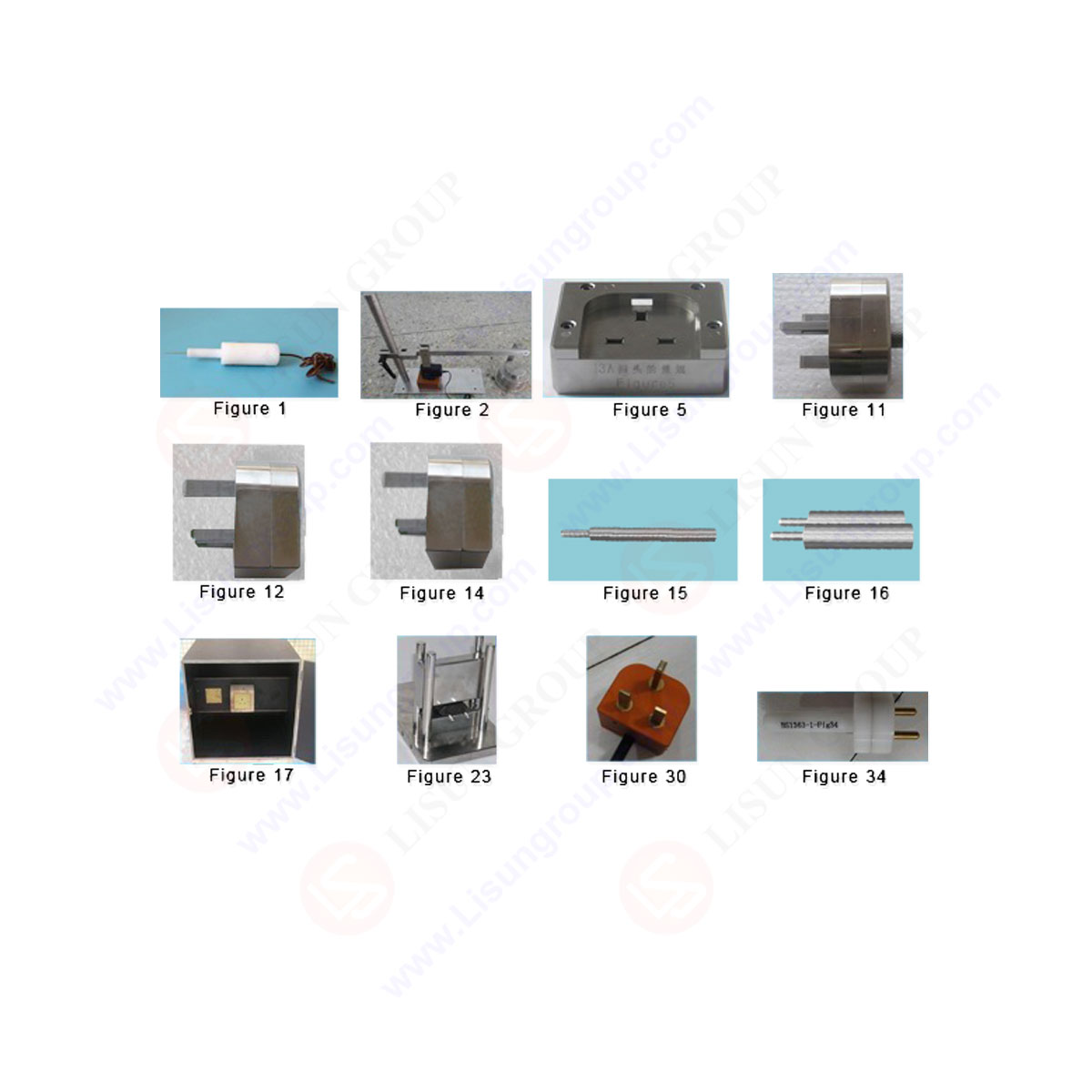

Plug & Socket Gauges BS 1363
Plug & Socket Gauges — BS 1363 Series
GNGPL-3605 / BS1363-2 / BS1363-3
Covers the UK-standard 13A plug and socket-outlet family, verifying pin dimensions, fuse carrier fit, and mechanical features.
Key specs: GNGPL-3605 — BS 1363-1 Fig 5 · BS1363-2 — BS 1363-2 · BS1363-3 — BS 1363-3
Enquire About This Product →
Plug & Socket Gauges — UL/CEE Series
GNGPL-SM390 / CEE7-C21
Covers North American UL 498 plug/socket dimensional requirements including ground-pin and blade-retention verification, plus the CEE 7/C21 European gauge family.
Key specs: GNGPL-SM390 — UL 498 Fig 132.1 · CEE7-C21 — CEE 7/C21
Enquire About This Product →
Enquire About Any Series →
