IK07-10 Pendulum Impact Tester (IK07–IK10) – LISUN

IK07-10 / IK07-10S

LISUN IK07-10 pendulum hammer to IEC 60068-2-75 Test Eha and IEC 62262: 1000mm pendulum, IK07 to IK10 (IK11 optional), for luminaires and enclosures.

Environmental Test Equipment
IK Impact Test
Floor-Standing Pendulum Instrument
IEC 60068-2-75:2014 Clause 5 (Test Eha); IEC 62262:2021 Clause 6; IEC 60598-1:2020 Clause 10.3; IEC 60335-1:2020 Clause 21.2; IEC 60884-1 Clause 10.3; IEC 62368-1:2018; EN 50102; ANSI C136.31-2020 Clause 9.4; AS/NZS 61439.4:2022 Clause 10.2.6.2; GB/T 2423.55-2023; GB/T 20138-2023
Enquire About This Product
LISUN IK07-10 Pendulum Impact Tester (IK07–IK10)

Overview

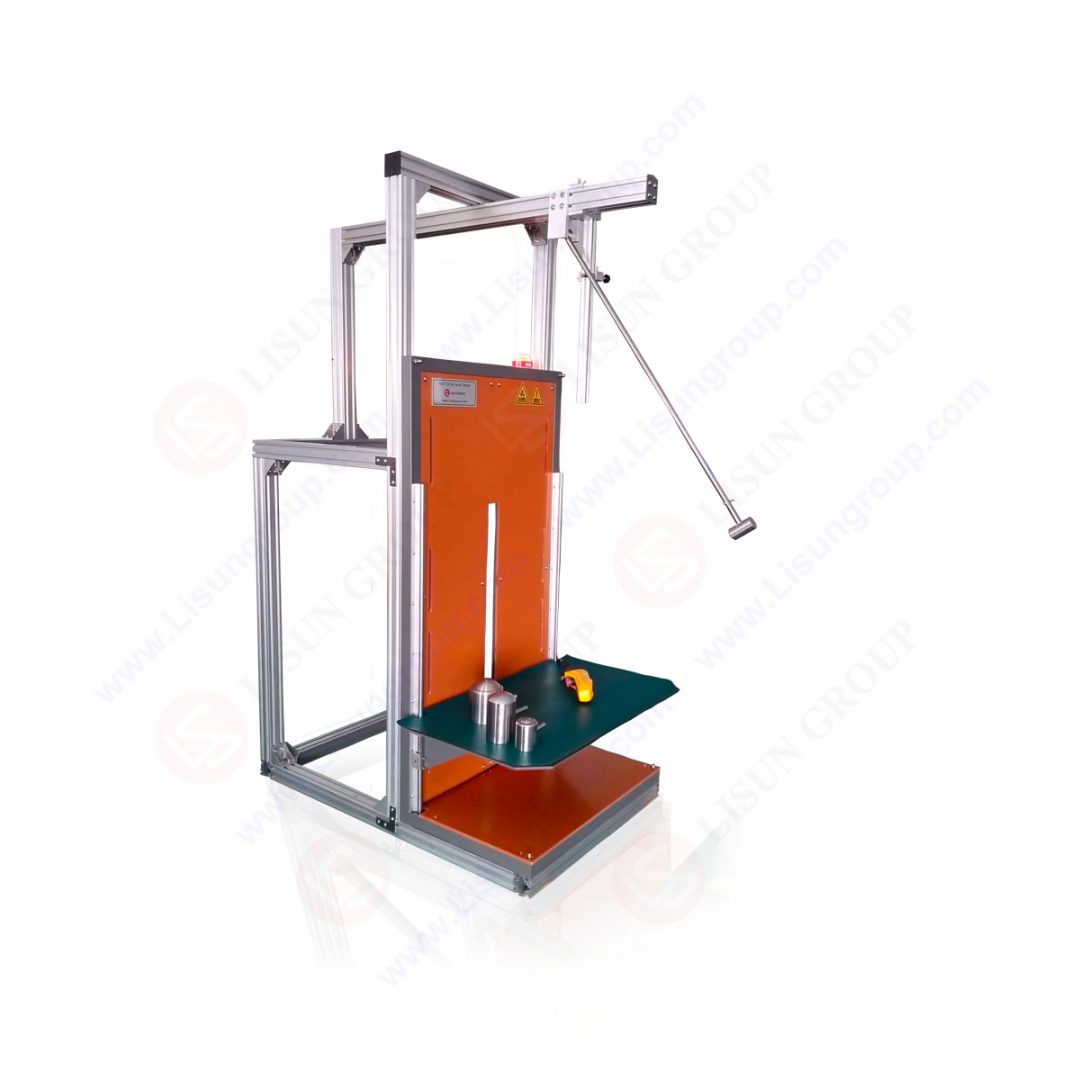

The LISUN IK07-10 is a pendulum hammer for the higher-energy impact tests of IEC 60068-2-75 Test Eha and the pendulum method of IEC 62262 (IK code). It controls impact energy, angle and impact point to check how well an enclosure resists external knocks, covering IK07 to IK10, with IK11 as an option.

The striker swings on a pendulum with 1000mm between the pivot and the centre of the striker. The sample is mounted in its normal position, the impact point is set, and the pendulum is raised to the height that gives the required energy and released. Energy, equivalent striker mass and drop height follow Table 2 of IEC 60068-2-75.

Two versions are available: the IK07-10 standard electric model and the IK07-10S simple manual model. Both cover IK07 to IK10, with IK11 optional. For energies up to 2J, LISUN recommends the IK01-07 spring hammer.

Typical uses

Key Specifications

Specifications

ParameterValue
Pendulum length1000mm, pivot to striker centre
IK rangeIK07 to IK10 (IK11 optional)
VersionsIK07-10 electric; IK07-10S manual
Energy, mass and heightTo IEC 60068-2-75 Table 2

IK energies

IK07IK08IK09IK10IK11 (option)
2J5J10J20J50J

Features

Applications

Frequently asked questions

Which standards use the pendulum?

IEC 60598-1, IEC 60335-1, IEC 60884-1, IEC 62368-1, IEC 62262 and AS/NZS 61439.4, among others, refer to the pendulum hammer of IEC 60068-2-75.

What about IK01 to IK06?

Use the IK01-07 spring hammer or the IK01-06P small pendulum for low energies.
