SMT-0368K Test Probe Kit for IEC 62368-1
LISUN SMT-0368K probe kit for audio/video and ICT equipment safety to IEC 62368-1 Annex V: jointed test probes (Fig. V.1, V.2), blunt probe, wedge probe and terminal probe.
Enquire About This Product
Overview
IEC 62368-1 is the hazard-based safety standard for audio/video, information and communication technology equipment, replacing IEC 60950-1 and IEC 60065. Its Annex V defines the probes used to decide which parts are accessible to ordinary, instructed and skilled persons.

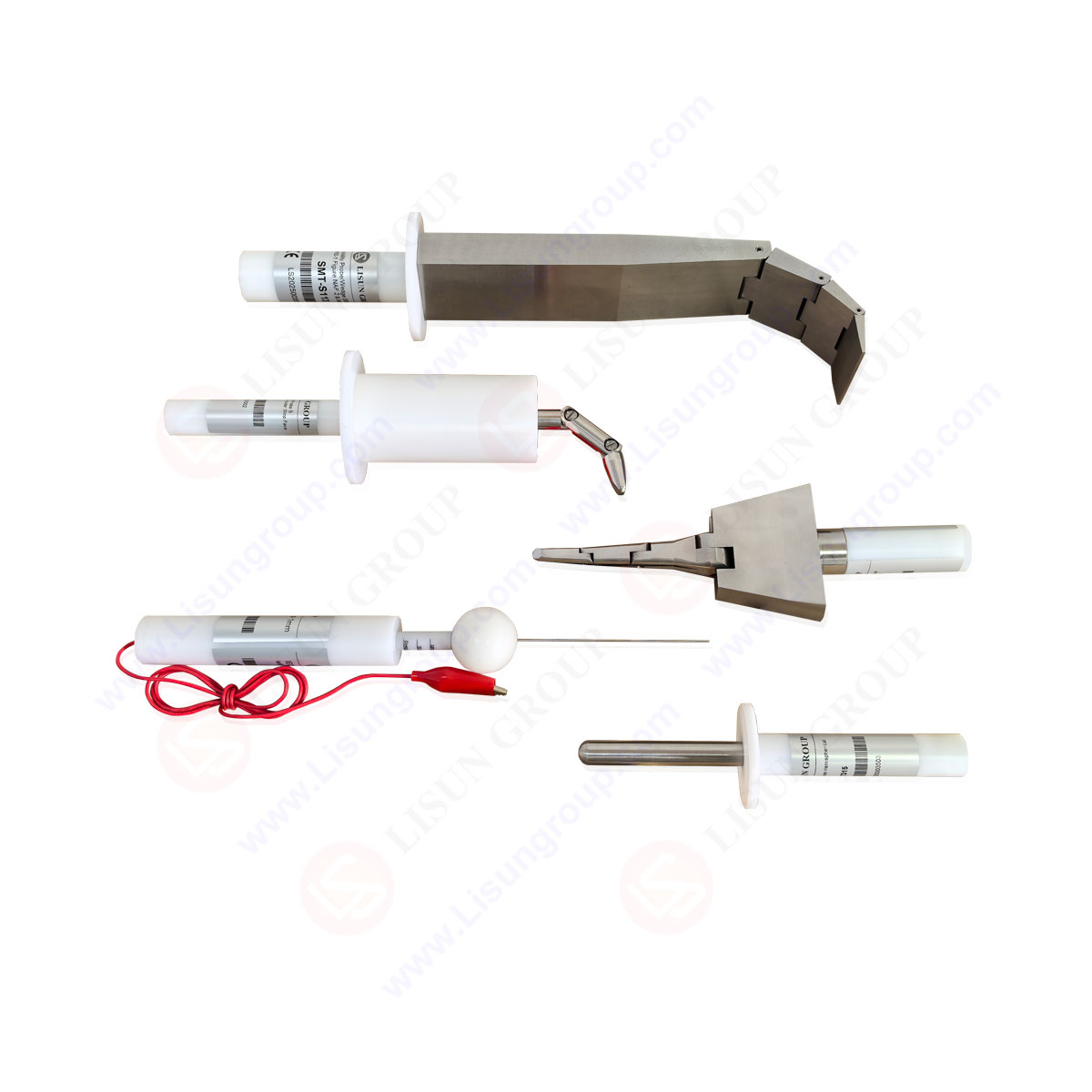

The SMT-0368K provides the Annex V probe set: the straight and jointed test probes of Figures V.1 and V.2, the blunt probe of Figure V.3, the wedge probe of Figure V.4 and a 1mm terminal probe, so accessibility can be assessed to the current standard.
Key Specifications
| LISUN model | Item (IEC 62368-1) |
|---|---|
| SMT-PA100A | Figure V.1 standard jointed test probe |
| SMT-PBC | Figure V.2 jointed test probe |
| SMT-TD15 | Figure V.3 blunt probe |
| SMT-S113 | Figure V.4 wedge probe |
| SMT-IP40T | Terminal probe, 1mm diameter × 20mm |
Features
- Annex V probe set for IEC 62368-1 accessibility assessment
- Current replacement for IEC 60950-1 and IEC 60065 kits
- Each probe also available individually
Applications
Safety testing of IT, telecom, audio/video and consumer electronic equipment, external power supplies and chargers to IEC 62368-1.
