SMT-601K Test Probe Kit for IEC 60601-1 (Medical)
SMT-601K

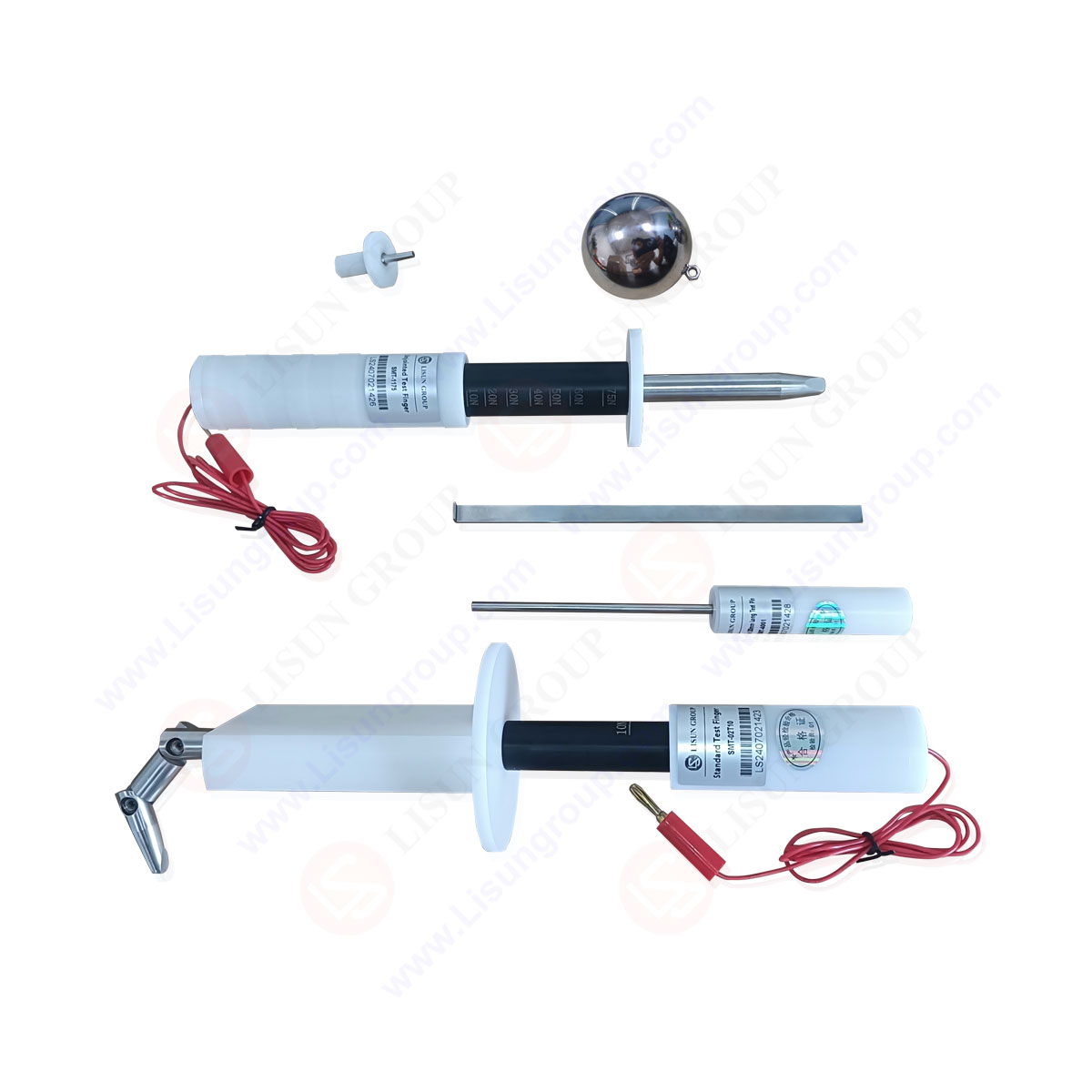

LISUN SMT-601K probe kit for medical electrical equipment to IEC 60601-1: standard test finger, test hook, test pins, unjointed finger and 500g impact ball.
Enquire About This Product
📷 View Gallery
Overview
IEC 60601-1 sets the general safety requirements for medical electrical equipment, including protection of patients and operators against access to hazardous parts and the mechanical strength of enclosures. The SMT-601K provides the probes it specifies: the standard test finger (Figure 6), the test hook (Figure 7) and test pin (Figure 8), an unjointed test finger, a 4mm × 100mm test pin and a 500g ball for impact testing.
Key Specifications
| LISUN model | Item |
|---|---|
| SMT-02T10 | Standard test finger (IEC 60601-1:2005 Fig. 6) |
| SMT-S15 | Test hook (Fig. 7) |
| SMT-1213 | Test pin (Fig. 8) |
| SMT-1175 | Unjointed test finger |
| SMT-B50H | 500g impact test ball |
| SMT-4001 | Test pin, 4mm diameter × 100mm |
Features
- Six probes covering IEC 60601-1 access and impact tests
- Includes test hook and 500g impact ball
- Each probe also available individually
Applications
Safety testing of medical electrical equipment and systems; medical device manufacturer QA; pre-compliance before third-party certification.
