Precision High-Temperature Ovens for Curing, Drying and Battery Cell Heat Treatment

Precision ovens hold a stable, uniform high temperature over an extended dwell — for curing, drying, baking-out moisture, or battery/material heat treatment — rather than cycling temperature the way an environmental chamber does. Uniformity and stability across the working chamber matter more here than range or ramp rate, since the process depends on every part of the load reaching and holding the same temperature.

Sonacme's SDO precision high temperature ovens span four volumes from 1000L to 3600L, reaching +300°C with ±0.5°C fluctuation. Directional air ducts give a very uniform temperature distribution through the load. Sonacme positions them for automotive engineering, aerospace and electronic products, for processing glass, ceramics, plastics, metals, textiles and composites, and as battery cell ovens for safe heat treatment in lithium-ion battery production.

The ovens meet EN 1539 and AMS 2750E or CQI-9 safety and industry requirements and are compliant with the ATEX safety directive. Their explosion-proof measures have passed technical safety inspections and certifications (declaration of conformity, TÜV) — relevant where solvent-laden or otherwise combustible atmospheres can be released during curing or drying.

Precision High Temperature Ovens
Inquire About This Range →

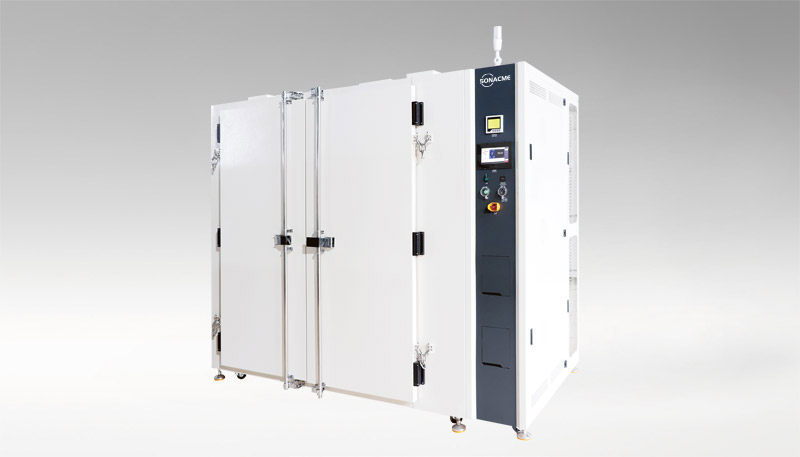

Sonacme precision high temperature oven

Precision High Temperature Ovens (SDO Series)

Multi-layer industrial ovens built to AMS2750E, CQI-9 and EN 1539 for battery drying, curing and industrial heat-treatment applications, four capacities from 1000L to 3600L.
Enquire About This Series →

Technical Specifications

Temperature rangeRoom temperature to +300°C
Temperature fluctuation±0.5°C
Heating rate6.0-10.0°C/min (25°C to 100°C within 8 minutes)
Standards referencedAMS2750E, CQI-9, EN 1539; ATEX directive and TÜV certification available
Power supply380V AC, 50/60Hz

Which model do I need?

Every oven reaches +300°C with the same ±0.5°C fluctuation and heating rate, so choose by working space for your largest part or load. Click a model for its full specifications.

ModelVolumeTest space W×H×D (mm)External size W×H×D (mm)
SDO/1000/3001000L1000×1000×10001200×1550×1450
SDO/1800/3001800L1000×1500×12001200×2000×1650
SDO/2500/3002500L1200×1500×14001400×2000×1850
SDO/3600/3003600L1200×2000×15001400×2350×1950

Model specifications

1000L

SDO/1000/300 Oven

Volume1000L
Test space (W×H×D)1000×1000×1000mm
External size (W×H×D)1200×1550×1450mm
Temperature rangeRoom temperature to +300°C, ±0.5°C fluctuation
Other specificationsAs listed under Technical Specifications above
Enquire about SDO/1000/300 →
1800L

SDO/1800/300 Oven

Volume1800L
Test space (W×H×D)1000×1500×1200mm
External size (W×H×D)1200×2000×1650mm
Temperature rangeRoom temperature to +300°C, ±0.5°C fluctuation
Other specificationsAs listed under Technical Specifications above
Enquire about SDO/1800/300 →
2500L

SDO/2500/300 Oven

Volume2500L
Test space (W×H×D)1200×1500×1400mm
External size (W×H×D)1400×2000×1850mm
Temperature rangeRoom temperature to +300°C, ±0.5°C fluctuation
Other specificationsAs listed under Technical Specifications above
Enquire about SDO/2500/300 →
3600L

SDO/3600/300 Oven

Volume3600L
Test space (W×H×D)1200×2000×1500mm
External size (W×H×D)1400×2350×1950mm
Temperature rangeRoom temperature to +300°C, ±0.5°C fluctuation
Other specificationsAs listed under Technical Specifications above
Enquire about SDO/3600/300 →
Frequently Asked Questions
What do AMS2750E, CQI-9 and EN 1539 actually require of an oven?
Broadly: documented temperature uniformity survey and classification (AMS2750E), a defined pyrometry and calibration programme (CQI-9), and, for EN 1539, safety provisions for ovens handling flammable solvents or dust — explosion relief, interlocks and ventilation. The SDO series is built to meet all three, with ±0.5°C fluctuation and ATEX/TÜV options.
How fast do these ovens heat up?
6.0-10.0°C/min, reaching 100°C from 25°C within 8 minutes, up to a maximum of +300°C.
What capacities are available?
Four multi-layer configurations from 1000L to 3600L, sharing the same temperature range, fluctuation and heating performance.
