EMC Test Solutions

RF & EMC Power Amplifiers

Solid-State EMC, Narrow-Band and Broadband High-Power RF Amplifiers, in Several Power Levels per Band

The power amplifier is what turns a signal generator's low-level output into the power an antenna needs to reach a target field strength, or a transmitter needs to cover a link. RFlight's amplifiers are complete rack-mount chassis and cabinet instruments, in three types for three different jobs, and each frequency band comes in several power levels.

Standard EMC power amplifiers (CW) cover 10kHz to 50GHz in six series: for example 200W, 300W, 500W, 1000W, 2000W or 3000W at 80MHz–1GHz; 50W to 800W at 1–6GHz; and 20W, 50W, 100W, 200W or 320W at 6–18GHz. Narrow-band RF power amplifiers deliver up to 1000W in the main wireless bands between 698MHz and 3.8GHz. Broadband high-power amplifiers deliver 500W CW from 4GHz to 40GHz, plus pulsed models from 2.1kW to 15kW peak between 1GHz and 18GHz.

Frequently Asked Questions

How do I choose amplifiers for a radiated immunity system?

Start from the frequency range and field strength your standard requires. Choose the series that covers each band, then the power level whose P-1dB output, with your antenna's gain at your test distance, reaches the target field with margin for modulation. Full-band systems usually combine several amplifiers.

When would I choose a narrow-band amplifier instead?

When your work sits in one wireless band. A narrow-band amplifier puts its full power and efficiency into that band, so you get more output for the cost than from a broadband unit.

When do I need a pulsed amplifier rather than a CW amplifier?

Pulsed amplifiers deliver very high peak power in short bursts, as used in radar, electronic interference and high-power microwave testing. Continuous-wave (CW) amplifiers provide the sustained output most radiated immunity standards call for.

RF & EMC Power Amplifiers
Inquire About This Range →
RFlight WPA standard EMC power amplifier
Standard EMC Power Amplifiers (CW, 10kHz–50GHz)
All-solid-state continuous-wave amplifiers in six frequency series, each with several power levels: 100W–15kW below 400MHz, 200W–3000W at 80MHz–1GHz, 50W–1000W at 0.7–6GHz, 10W–320W at 2–18GHz and 20W–50W up to 50GHz.
View Product Details →
ModelFrequencyOutput PowerFormat
WPA-2k04100E2kHz–400MHz100W19-inch chassisView
WPA-2k04200E2kHz–400MHz200W19-inch chassisView
WPA-4k041004kHz–400MHz≥40W@4–9kHz; ≥100W@9kHz–400MHz19-inch chassisView
WPA-4k042004kHz–400MHz≥60W@4–9kHz; ≥200W@10kHz–400MHz19-inch chassisView
WPA-9k01150010kHz–100MHz1500W19-inch chassisView
WPA-9k01350010kHz–100MHz3500WCabinetView
WPA-9k0110000E10kHz–100MHz10000WCabinet ×3View
WPA-9k01515000E10kHz–150MHz15000WCabinet systemView
WPA-9k02100008000E10kHz–225MHz≥10000W@10kHz–100MHz; ≥8000W@100–225MHzCabinet ×6View
WPA-0081020080MHz–1GHz200W19-inch chassisView
WPA-0081030080MHz–1GHz300W19-inch chassisView
WPA-0081050080MHz–1GHz500W19-inch chassisView
WPA-00810100080MHz–1GHz1000WCabinetView
WPA-00810200080MHz–1GHz2000WCabinetView
WPA-00810300080MHz–1GHz3000WCabinet ×2View
WPA-076050P0.7–6GHz50W19-inch chassisView
WPA-0760100P0.7–6GHz100W19-inch chassisView
WPA-0760200P0.7–6GHz200W19-inch chassisView
WPA-0842400P0.8–4.2GHz450W19-inch chassisView
WPA-1025400P1–2.5GHz400W19-inch chassisView
WPA-10251000P1–2.5GHz1000WCabinetView
WPA-106050P1–6GHz50W19-inch chassisView
WPA-1060100P1–6GHz100W19-inch chassisView
WPA-1060200P1–6GHz200W19-inch chassisView
WPA-1060400P1–6GHz400W19-inch chassisView
WPA-1060800P1–6GHz800WCabinetView
WPA-25601000P2.5–6GHz1000WCabinetView
WPA-20180102–18GHz10W19-inch chassisView
WPA-20180202–18GHz20W19-inch chassisView
WPA-20180502–18GHz50W19-inch chassisView
WPA-60180206–18GHz20W19-inch chassisView
WPA-60180506–18GHz50W19-inch chassisView
WPA-601801006–18GHz100W19-inch chassisView
WPA-601802006–18GHz200W19-inch chassisView
320W6G186–18GHz320W—View
WPA-1802652018–26.5GHz20W19-inch chassisView
WPA-1802655018–26.5GHz50W19-inch chassisView
WPA-2654002026.5–40GHz20W19-inch chassisView
WPA-2654004026.5–40GHz40W19-inch chassisView
WPA-4005002040–50GHz20W19-inch chassisView
WPA-4005004040–50GHz40W19-inch chassisView
RFlight narrow-band RF power amplifier
Narrow-Band RF Power Amplifiers
High-efficiency amplifiers for single wireless bands between 698MHz and 3.8GHz, up to 1000W.
View Product Details →
ModelFrequencyOutput PowerFormat
NTWPA-07101000698–960MHz1000W10U chassisView
NTWPA-182210001805–2170MHz1000W13U chassisView
NTWPA-232710002300–2700MHz1000W13U chassisView
NTWPA-33381003300–3800MHz100W4U chassisView

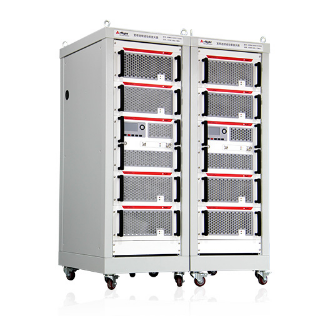

RFlight broadband high-power amplifier cabinet
Broadband High-Power Amplifiers (CW & Pulsed)
500W continuous-wave amplifiers from 4GHz to 40GHz, and pulsed amplifiers from 1GHz to 18GHz at 2.1kW to 15kW peak.
View Product Details →
ModelFrequencyOutput PowerMode / Format
NTWPA-40805004–8GHz500WCW · 31U cabinetView
NTWPA-601805006–18GHz500WCW · 31U cabinetView
NTWPA-26540050026.5–40GHz500WCW · 39U cabinetView
NTWPPA-1040150001–2GHz, 2–4GHz15000WPulsed · 39U cabinetView
NTTWPPA-80180150008–18GHz15000WPulsed · 2 × 39U cabinetsView
WPPA-102050001–2GHz5000WPulsed · CabinetView
WPPA-102080001–2GHz8000WPulsed · CabinetView
WPPA-1020120001–2GHz12000WPulsed · CabinetView
WPPA-104050001–4GHz5000WPulsed · CabinetView
WPPA-1040100001–4GHzSee datasheetPulsed · Cabinet ×2View
WPPA-204050002–4GHz5000WPulsed · CabinetView
WPPA-2040100002–4GHz10000WPulsed · CabinetView
WPPA-2040150002–4GHz15000WPulsed · Cabinet ×2View
WPPA-408020004–8GHz2100WPulsed · CabinetView
WPPA-408050004–8GHz5000WPulsed · CabinetView
WPPA-4080100004–8GHz10000WPulsed · Cabinet ×2View
WPPA-4080150004–8GHz15000WPulsed · Cabinet ×2View
WPPA-8018020008–18GHz2100WPulsed · CabinetView
WPPA-8018050008–18GHz5000WPulsed · Cabinet ×2View
WPPA-80180100008–18GHz10000WPulsed · Cabinet ×3View
Looking for amplifier or low-noise modules to integrate into a custom RF chain? See RFlight's Microwave Active Modules →
Send an Enquiry →Send an Enquiry →

Related Reading

Where This Fits

The power amplifier is the middle stage of a radiated immunity setup: it takes the signal generator's low-power output and boosts it to whatever power the antenna needs to hit the target field strength at your test distance.

This series is where you'd shop if you're assembling or expanding a custom rig rather than buying one of the turnkey Radiated Immunity Test Systems above — those systems already bundle a matched amplifier internally. Because full-range testing typically spans several frequency sub-bands, most complete setups use 2–4 amplifiers from across this range switched in as the test sweeps, rather than a single unit.
