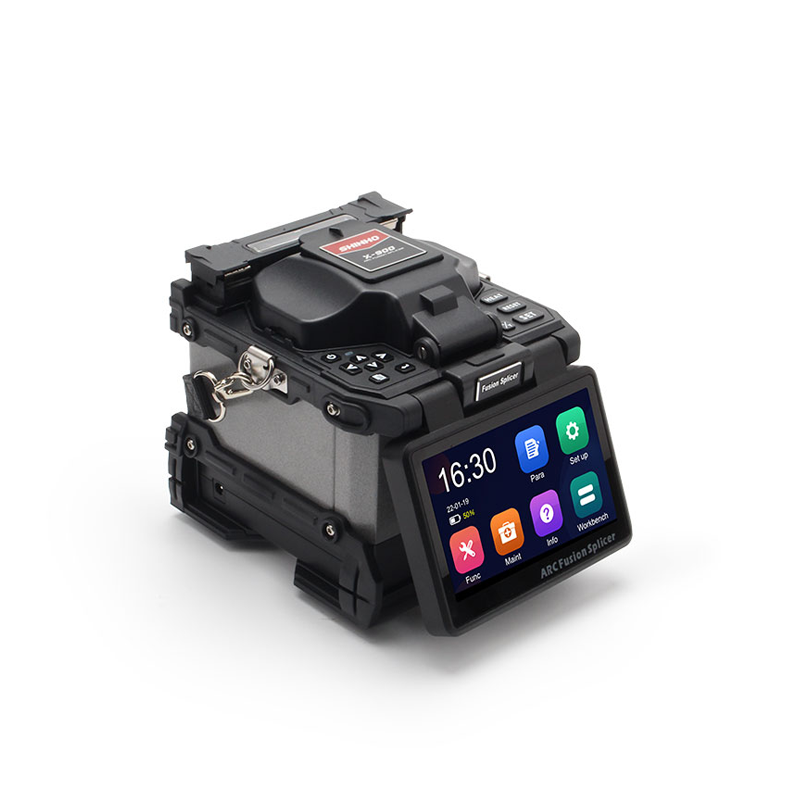

X900 — XHFiber Core Alignment Fusion Splicer
SHINHO X900 Core-to-Core Alignment Fiber Fusion Splicer — 6-motor real core alignment, 6s splicing, 18s heating. G.652: 0.02dB typical loss. For WAN/MAN/Telecom projects.
Enquire About This Product
Overview
The SHINHO X900 is a premium six-motor fiber fusion splicer using real core-to-core alignment technology. Six independent motors provide precise X/Y/Z axis control of both fibers simultaneously for the most accurate splice alignment, yielding the lowest possible splice loss.
Key performance: typical splicing time 6 seconds (fast mode), 18 seconds heating; auto fiber type identification (SM/MM); typical splice loss G651: 0.01dB, G652: 0.02dB, G653/G654/G655: 0.04dB, G657: 0.02dB. Battery: 5200mAh Li-ion, ~300 splice+heat cycles.
Touch screen plus keypad dual operation. 24-month warranty. ISO 9001:2015 certified manufacturing.
Key Specifications
Motors: 6 (real core-to-core alignment) | Splice time: 6s (fast) / 6–12s (typical) | Heating: 18s | Splice loss: G652: 0.02dB typical | Battery: 5200mAh (300 cycles) | Display: touch screen + keypad
Features
- 6-motor real core-to-core alignment
- Fastest splice time: 6 seconds
- Auto fiber type identification (SM/MM)
- Touch screen + keypad dual operation
- 5200mAh battery — 300 splice cycles
- 24-month warranty
Applications
WAN/MAN backbone fiber splicing; Telecommunications trunk projects; Long-haul DWDM network splicing; High-loss-budget-sensitive projects
