RFlight EMC High-Gain Horn Antennas, 1–40GHz
RFlight high-gain horn antennas for radiated immunity and high-field testing from 1GHz to 40GHz in four bands, 11–21.5dB gain, for use with high-power EMC amplifiers.
Enquire About This Product
Overview
Radiated immunity testing above 1GHz, and military and aerospace high-field testing such as MIL-STD-461 RS103, GJB151C and DO-160, needs an antenna that turns amplifier power into field strength efficiently and can handle that power continuously. RFlight's high-gain horns are built for exactly that role in RFlight's own EMC test systems and amplifier racks.

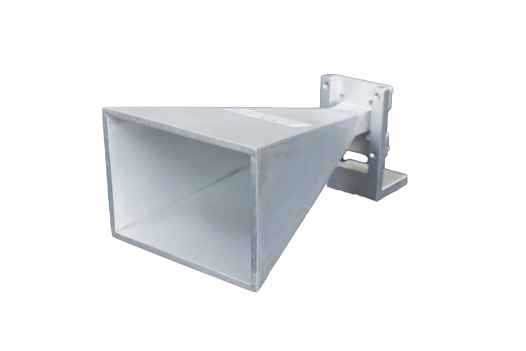

The range splits the spectrum into four bands. The NTANT-1060HS covers 1–6GHz with an N-type input; the NTANT-60180HS covers 6–18GHz on a WRD50 waveguide input with 19dB gain; the NTANT-180265HS (18–26.5GHz, BJ220) and NTANT-265400HS (26.5–40GHz, BJ320) extend coverage into the millimetre-wave bands. Higher gain means more field strength for the same amplifier power, so choosing the right horn directly affects how large an amplifier the test needs.
RFlight can customise antenna gain to suit a field-strength target. Pair these horns with RFlight power amplifiers to build a complete GJB151C 200V/m or 400V/m system.
Key Specifications
| Model | Frequency | Gain | VSWR | Input | Size (L×W×H) | Weight |
|---|---|---|---|---|---|---|
| NTANT-1060HS | 1–6GHz | ≥11.2dB | ≤2.2 | N-K (N female) | 822 × 426 × 271mm | ≤8.5kg |
| NTANT-60180HS | 6–18GHz | ≥19.0dB | ≤1.5 | WRD50 waveguide | 664 × 194 × 145mm | ≤2kg |
| NTANT-180265HS | 18–26.5GHz | ≥20.0dB | ≤1.5 | BJ220 waveguide | 129 × 76 × 55mm | ≤0.2kg |
| NTANT-265400HS | 26.5–40GHz | ≥21.5dB | ≤1.5 | BJ320 waveguide | 113 × 58 × 43.5mm | ≤0.1kg |
Features
- Four bands covering 1GHz to 40GHz
- High gain, 11.2dB to 21.5dB, for efficient field generation
- Low VSWR (≤1.5 above 6GHz)
- Built for continuous high-power EMC amplifier drive
- Standard N-type and waveguide interfaces
- Gain can be customised
Applications
Radiated immunity and susceptibility testing (MIL-STD-461 RS103, GJB151C, DO-160, IEC 61000-4-3 above 1GHz); high-field 200V/m and 400V/m systems; automotive and aerospace EMC; radar and microwave component testing.
