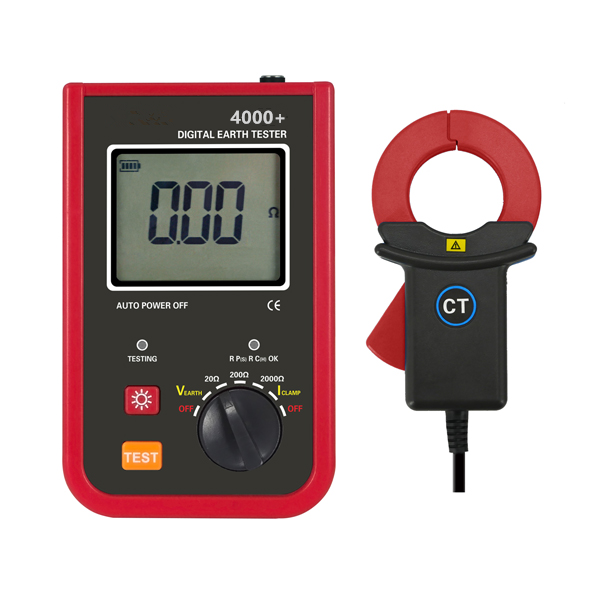

MEWOI4000+ / 4000A+ Digital Earth Resistance Testers
Compact 2-wire / 3-wire digital earth resistance testers, 0.10–2000Ω, with auxiliary stake checking and lead resistance calibration. The 4000+ adds earth current to 100A.
Enquire About This Product
Overview
The MEWOI4000+ and 4000A+ are straightforward stake-type earth testers for checking individual earth electrodes. They use the precise 3-wire fall-of-potential method, or a quick 2-wire method where a known low-resistance earth is available, with a 128Hz, 20mA test signal.
Two features improve accuracy on low readings: the meter displays the resistance of the auxiliary stakes during the test, so a poorly driven stake is noticed before it skews the result, and lead resistance calibration removes errors from extended or poorly seated test leads. Both meters also measure earth voltage up to 200V AC.
The MEWOI4000+ adds an earth current function (0–100A AC) using a current clamp; the MEWOI4000A+ measures earth resistance and earth voltage only.
Key Specifications
| Specification | MEWOI4000+ | MEWOI4000A+ |
|---|---|---|
| Earth resistance | 0.10Ω–2000Ω, ±2%rdg ±3dgt | 0.10Ω–2000Ω, ±2%rdg ±3dgt |
| Earth current | 0mA–100A AC, ±2%rdg ±3dgt | — |
| Earth voltage | 0–200V AC | 0–200V AC |
| Methods | 3-wire (precise) and 2-wire (simple) | |
| Test signal | 128Hz, 20mA max | |
| Auxiliary stake check / lead calibration | Yes / Yes | |
| Power | 9V (6 × AA alkaline) | |
| Accessories | Test leads 15m, 10m, 5m; 2 auxiliary stakes | |
| Safety | IEC 61010-1, IEC 61557-1, CAT III 300V | |
| Size / weight | Approx. 157 × 100 × 66mm; meter approx. 470g | |
Features
- 3-wire and 2-wire earth resistance measurement, 0.10–2000Ω
- Displays auxiliary stake resistance during test
- Test lead resistance calibration
- Earth voltage measurement to 200V
- 4000+: earth current measurement to 100A
- Backlit display, auto power-off
Applications
Testing individual earth electrodes and earth rods; commissioning of new earthing installations; lightning protection earth checks; electrical contractor and maintenance use.
