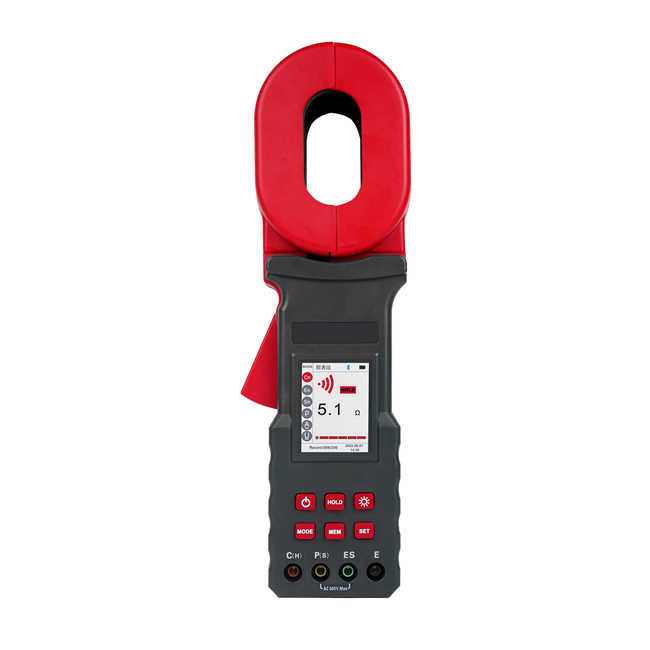

MEWOI3300 / 3300B Multi-Function Clamp Earth Resistance Tester
MEWOI3300 clamp earth tester that also does 2-, 3- and 4-wire and selective methods: earth resistance to 20kΩ (200kΩ on 3300B), soil resistivity, earth current to 45A and earth voltage, with Bluetooth.
Enquire About This Product
Overview
Most clamp-on earth testers can only use the clamp method, which needs a parallel earth path and cannot measure a single isolated electrode or soil resistivity. The MEWOI3300 combines the clamp with a full set of stake-based methods in one instrument, so the same meter can test multi-earthed systems by clamp, a single electrode by the 3-wire fall-of-potential method, soil resistivity by the 4-wire Wenner method, and one electrode within a parallel system by the selective method without disconnecting it.
The meter uses FFT processing and automatic frequency selection (128/111/105/94Hz) to reject interference, has a large 65×32mm jaw for big down-conductors, and also measures earth leakage current and earth voltage. Results are stored with date and time (500 sets) and can be read on an Android phone over Bluetooth. A 2.5-inch colour LCD and rechargeable lithium battery complete the instrument.
The MEWOI3300B extends earth resistance to 200kΩ and earth current to 45A for high-resistivity sites and larger leakage currents.
Key Specifications
| Specification | MEWOI3300 | MEWOI3300B |
|---|---|---|
| Earth resistance (2/3/4-wire) | 0.00Ω–20kΩ | 0.00Ω–200kΩ |
| Earth resistance (clamp) | 0.010Ω–200Ω (±1%rdg + 0.01Ω at low range) | 0.010Ω–1600Ω |
| Soil resistivity | 0–9999kΩm | 0–9999kΩm |
| Earth current | 0.000mA–20A | 0.000mA–45A |
| Earth voltage | 0–600V AC | 0–600V AC |
| Methods | Clamp, 2-wire, 3-wire, 4-wire, selective | |
| Stake method accuracy | ±2%rdg ±5dgt to 2kΩ; ±4%rdg ±5dgt above | |
| Test frequency | 128 / 111 / 105 / 94Hz, automatic selection | |
| Jaw size | 65 × 32mm | |
| Display / memory | 2.5" colour LCD; 500 records with date and time; Bluetooth (Android app) | |
| Power | 3.7V 2600mAh rechargeable Li-ion, USB charging | |
| Accessories | Test leads 20m × 2, 10m × 2; 4 auxiliary earth stakes | |
| Safety | IEC 61010-1 CAT III 300V / CAT IV 150V; IEC 61557-1, -5 | |
| Weight | Meter approx. 1.1kg; kit approx. 5.1kg | |
Features
- Clamp, 2-wire, 3-wire, 4-wire and selective earth resistance methods in one meter
- Soil resistivity measurement for earthing design
- Earth leakage current and earth voltage measurement
- FFT processing with automatic frequency selection for interference rejection
- Large 65×32mm jaw for big down-conductors
- 500-record memory, Bluetooth to Android app
- Rechargeable lithium battery, alarm threshold
Applications
Substation and power line earthing; telecommunications towers and exchanges; lightning protection system verification; soil resistivity surveys for earthing design; oil, gas and industrial site earthing checks.
