MEWOI Wearable High-Voltage Proximity Alarms
Wrist, arm and helmet-mounted voltage proximity alarms that warn line workers with sound and light when they approach live conductors, in 0.4–500kV and 40V–1kV versions. IP54.
Enquire About This Product
Overview
A proximity alarm is personal protective equipment for people working near live overhead lines, substations and switchgear. It senses the electric field around energised conductors without contact and sounds a buzzer and flashes an LED when the wearer comes too close, giving a warning before a dangerous approach distance is reached.

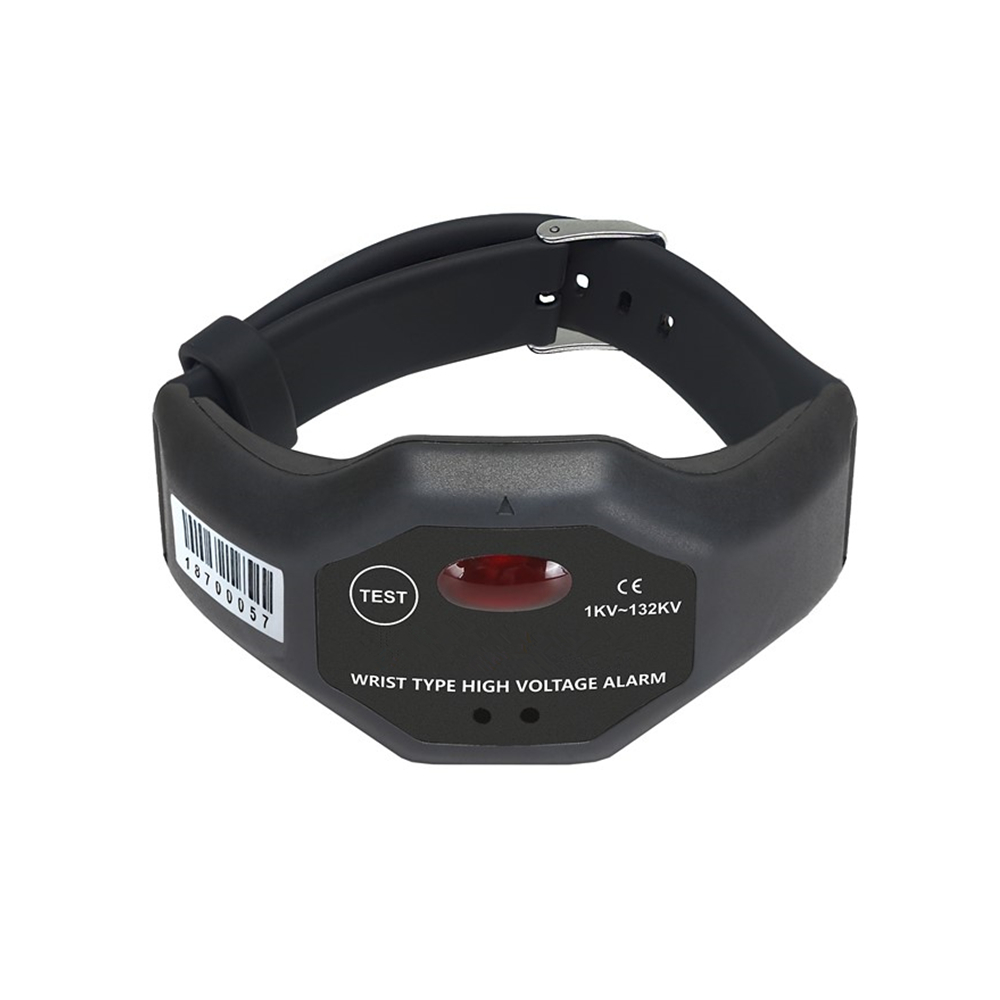

MEWOI makes the same detector in three wearing styles: the MEWOI1860 on the wrist, the MEWOI1870 on the arm and the MEWOI1880 on a safety helmet. Each comes in a high-voltage version (0.4kV to 500kV) for transmission and distribution work and a C version (40V to 1kV) for low-voltage work. They trigger automatically, run on coin cells for about 12 months on standby, and are rated IP54.
Key Specifications
| Model | Wear position | Alarm voltage range |
|---|---|---|
| MEWOI1860 | Wrist | 0.4kV–500kV |
| MEWOI1860C | Wrist | 40V–1kV |
| MEWOI1870 | Arm | 0.4kV–500kV |
| MEWOI1870C | Arm | 40V–1kV |
| MEWOI1880 | Helmet | 0.4kV–500kV |
| MEWOI1880C | Helmet | 40V–1kV |
| Common specification | Value |
|---|---|
| Detection | Non-contact, automatic trigger, 50/60Hz |
| Alarm | LED visible under 8000 lux; buzzer above 60dB at 60cm |
| Alarm distance error | ±10cm under reference conditions |
| Battery | CR1632 coin cell (1860: one; 1870/1880: two) |
| Battery life | About 24h continuous alarm; about 12 months standby |
| Protection | IP54 |
| Weight / size | 1860: 35g, 90×40×35mm; 1870: 51g, 88×32×30mm |
| Operating conditions | -10 to 40°C, below 80% RH |
Features
- Non-contact warning before reaching live conductors
- Wrist, arm or helmet wearing styles
- High-voltage (0.4–500kV) and low-voltage (40V–1kV) versions
- Combined sound and light alarm
- About 12 months standby on coin cells
- IP54 rated
Applications
Overhead line and distribution network maintenance; substation work; tree trimming and civil work near power lines; low-voltage switchboard and panel work.
