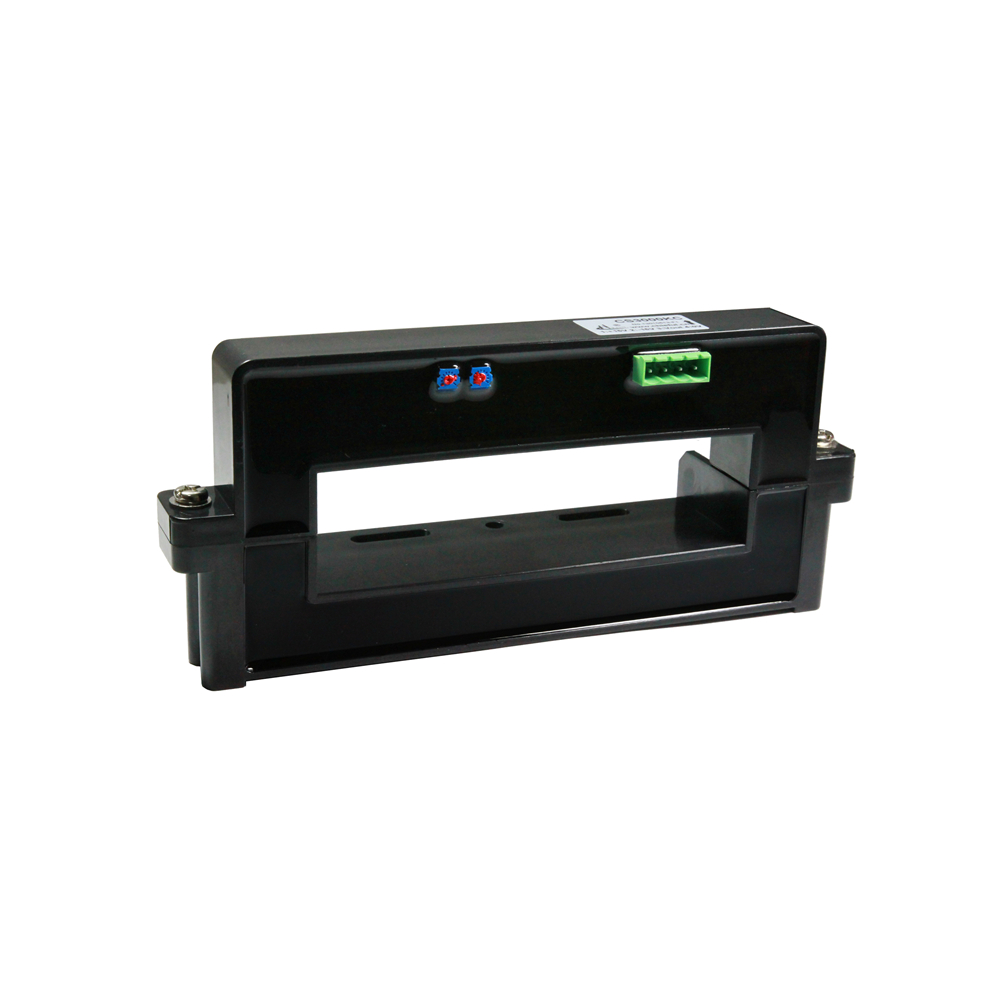

MEWOI Hall Effect Current Sensors (AC/DC)
MEWOI DS series Hall effect current sensors for AC and DC current from 10A to 80kA, with apertures from 5mm to 120mm round and rectangular windows up to 210×100mm, in open-loop and closed-loop designs.
Enquire About This Product
Overview
Hall effect current sensors measure AC and DC current without electrical contact, giving an isolated voltage or current output for data acquisition, inverters, battery systems, electroplating and power monitoring. Unlike a current transformer, a Hall sensor responds to DC as well as AC.
MEWOI's DS series spans a very wide range: small open-loop sensors for 10–40A through 5mm apertures, up to large closed-loop sensors for 20kA busbars and open-loop units rated to 80kA with a 120mm window. Open-loop sensors are simpler and lower cost; closed-loop sensors give better accuracy and linearity. Outputs include voltage, 4–20mA and 0–20mA depending on model, powered from ±12V to ±15V or +5V.
The table shows representative models; tell us your current range, AC/DC requirement, conductor size and output signal, and we will match the sensor.
Key Specifications
| Model | Rated current | Aperture | Type |
|---|---|---|---|
| MEWOI-DS040H | 10–40A AC/DC | 5mm | Open-loop |
| MEWOI-DS400FKC | 50–400A AC/DC | 12mm | Open-loop |
| MEWOI-DS600F2 | 100–600A AC/DC | 28mm | Open-loop |
| MEWOI-DS1000T | 100–1000A AC/DC | 32mm | Open-loop |
| MEWOI-DS2000FB | 500–2000A AC/DC | 60.5mm | Open-loop |
| MEWOI-DS5000LA | 600–5000A AC/DC | 104×36mm | Open-loop |
| MEWOI-DS6000FKF | 300–6000A AC/DC | ø62mm | Open-loop |
| MEWOI-DS10000IB | 2000A–10kA AC/DC | 140×50mm | Closed-loop |
| MEWOI-DS20000IC | 5000A–20kA AC/DC | 210×100mm | Closed-loop |
| MEWOI-DS80000DKL | 10kA–80kA AC/DC | 120mm | Open-loop |
Outputs (model dependent): voltage, 4–20mA or 0–20mA. Supply: ±12V to ±15V DC or +5V DC. Over 30 models available.
Features
- Isolated AC and DC current measurement
- Ratings from 10A to 80kA
- Round apertures from 5mm to 120mm and rectangular busbar windows
- Open-loop and higher-accuracy closed-loop designs
- Voltage or 4–20mA / 0–20mA outputs
Applications
Inverter, UPS and drive current feedback; battery and ESS current monitoring; DC busbar and electroplating current measurement; power monitoring and data acquisition systems.
