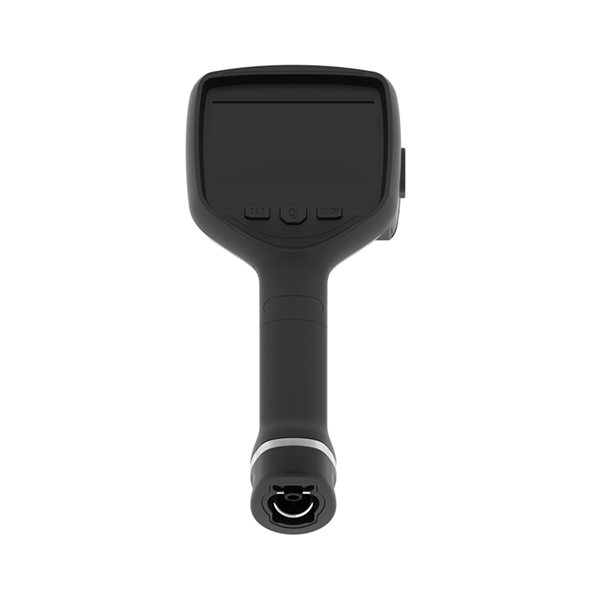

MEWOI-F2020 (F30) Fire Rescue Thermal Imaging Camera
Ruggedised IP67 handheld thermal camera for fire and rescue: 384×288 detector, -20 to +650°C measurement, operates in 270°C environments for 5 minutes, with video recording and three hot-swap batteries.
Enquire About This Product
Overview
The MEWOI-F2020 (also supplied as the F30) is a one-hand thermal imaging camera built for fire-fighting and rescue work, where crews need to see through smoke, locate people and find hidden fire inside walls and ceilings. It is sealed to IP67 and rated to operate in ambient temperatures up to 270°C for five minutes, far beyond what a general-purpose inspection camera will tolerate.
The standard camera uses a 384×288 uncooled focal-plane array (17µm, 8–14µm) behind a wide 48°×36° lens, shown on a 4.3-inch 800×480 screen at 30Hz. A high-end option increases resolution to 640×480 with a 5.5-inch display. Temperature measurement runs from -20 to +650°C as standard, with an optional extension to 2000°C, and a built-in blackbody reference recalibrates the camera automatically so readings stay stable as conditions inside a fire change.
Images and video are saved to a 32GB card (more than 4,000 radiometric images), with a high-temperature alarm and PC analysis software. Three replaceable lithium-ion batteries are supplied, each lasting more than four hours, for over 12 hours of continuous use.
Key Specifications
| Specification | MEWOI-F2020 (F30) |
|---|---|
| Detector | Uncooled FPA, 8–14µm, 17µm pitch |
| IR resolution | 384×288 standard; 640×480 optional |
| Field of view / IFOV | 48°×36° standard lens, 1.3mrad; 12° lens optional |
| Frame rate | 30Hz |
| Focus | Fixed, 0.2m to infinity |
| Measurement range | -20 to +650°C (extendable to 2000°C, optional) |
| Accuracy | ±2°C or ±2%, whichever is greater; built-in blackbody auto-calibration |
| Display | 4.3" TFT, 800×480 (5.5" 1024×768 with 640 option) |
| Operating environment | -20 to 270°C (5 minutes at 270°C) |
| Protection | IP67, waterproof |
| Storage | 32GB card, >4,000 images; radiometric JPG; video recording |
| Battery | 3 × replaceable Li-ion, >4h each (>12h total) |
| Weight | ≤0.9kg (384 version); ≤1kg (640 version) |
Features
- IP67 sealed, one-hand grip design for gloved use
- Operates in 270°C environments for up to 5 minutes
- 384×288 detector, 640×480 optional
- -20 to +650°C measurement, optional extension to 2000°C
- Built-in blackbody for automatic calibration
- Pseudo-colour display, video recording, high-temperature alarm
- Three hot-swap batteries for over 12 hours' operation
Applications
Fire-fighting and search and rescue; locating hidden fire and hot spots in structures; overhaul and post-fire inspection; hazmat and industrial emergency response.
