MEWOI-B2 / MEWOI-U3 Compact Thermal Imaging Cameras
Small, light thermal cameras for carrying on every job: the 208g MEWOI-B2 (220×160) and the 173g pocket-size MEWOI-U3 (80×60, to 450°C, IP54).
Enquire About This Product
Overview
These two compact cameras are for technicians who want a thermal imager in the toolbag or shirt pocket rather than in a case back at the van.
The MEWOI-B2 packs the same 220×160 detector and 0.07°C sensitivity as MEWOI's pistol-grip MEWOI28 into a flat 140×80×28mm body weighing 208g. It has a 3.2-inch screen, a 0.3MP visible-light camera for reference photos, adjustable emissivity and 3GB of internal memory.

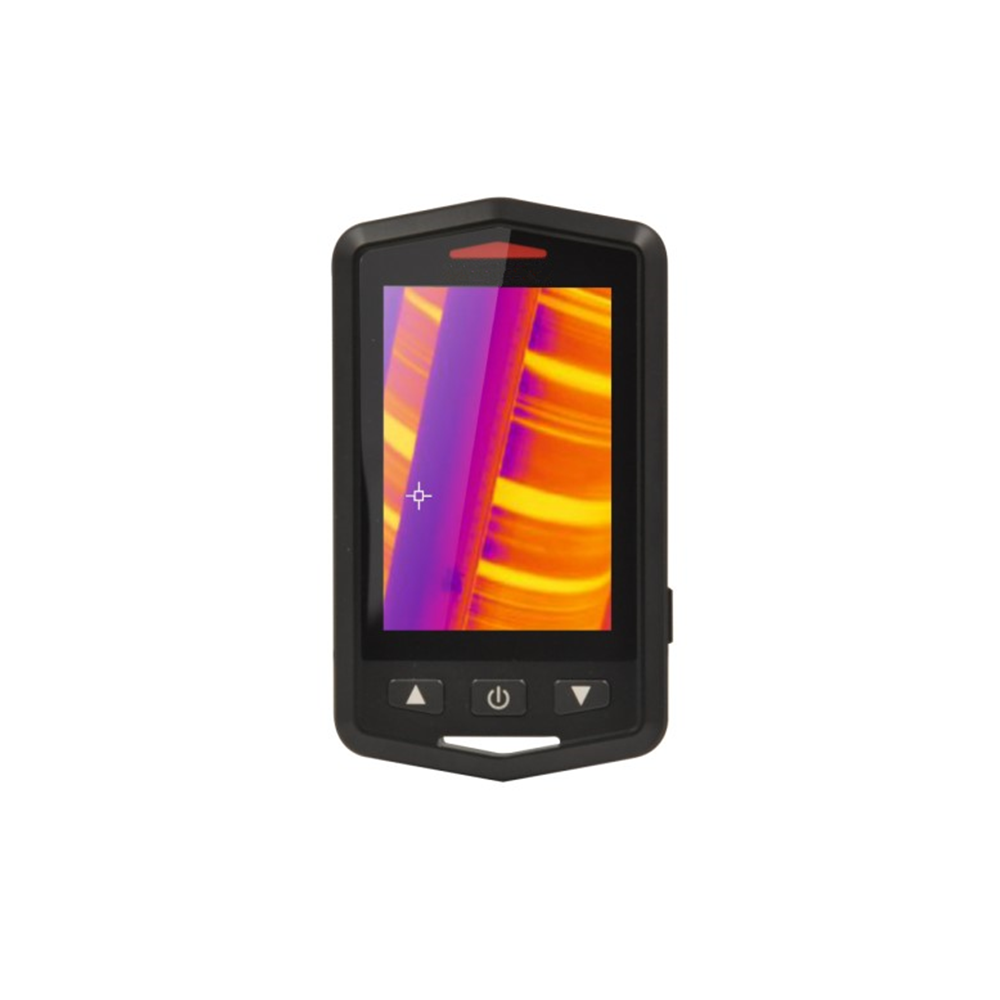

The MEWOI-U3 is a true pocket camera, 16mm thick and 173g, designed to be used without training: three buttons, a 3.5-inch screen that rotates automatically, and automatic tracking of maximum, minimum and average temperature. Its 80×60 detector sits behind a wide 50° lens for scanning panels at close range, it measures up to 450°C, charges over USB-C and is sealed to IP54.
Which model?
Choose the B2 when image detail matters, for example identifying individual terminations or components. Choose the U3 for quick scans, higher-temperature targets up to 450°C, and for a camera that lives in your pocket on site.
Key Specifications
| Specification | MEWOI-B2 | MEWOI-U3 |
|---|---|---|
| IR resolution | 220×160 (35,200 pixels) | 80×60 (4,800 pixels), 17µm |
| Thermal sensitivity | 0.07°C | <50mK |
| Field of view | 35°×26° | 50°×37.5° |
| Temperature range | -20 to 300°C | -20 to 450°C |
| Accuracy | ±2°C or ±2% | ±2°C or ±2% |
| Emissivity | 0.1–1.0 adjustable | 0–0.95 adjustable or material list |
| Frame rate / focus | 9Hz / fixed | 9Hz / fixed |
| Display | 3.2" full-angle LCD | 3.5" 480×320, auto-rotate |
| Measurement modes | Centre point | Centre spot, auto max/min/average; D:S 15:1 |
| Visible camera | 640×480 (0.3MP) | — |
| Storage / interface | 3GB internal, JPG; Micro USB 2.0 | 800 images, JPG; USB Type-C |
| Battery | Built-in rechargeable, 1800mAh | Rechargeable Li-ion, >4h |
| Protection | — | IP54 |
| Operating temperature | 0 to 45°C | 0 to 45°C |
| Size / weight | 140×80×28mm / 208g | 125×72×16mm / 173g |
Features
- B2: 220×160 detector in a 208g flat body
- B2: built-in visible-light camera and 3GB memory
- U3: 16mm-thin pocket camera, 173g, IP54
- U3: three-button operation, auto-rotating 3.5" screen
- U3: auto max/min/average tracking, measures to 450°C
- Rechargeable batteries with USB charging
Applications
Everyday electrical fault-finding; HVAC and plumbing checks; quick maintenance rounds; building and home inspection; a first thermal camera for technicians without thermography training.
