MEWOI Clamp-On Earth Resistance Testers
MEWOI clamp-on earth resistance testers measure ground and loop resistance from 0.01Ω to 1500Ω without disconnecting the earth or driving stakes. Ten models compared, with and without leakage current.
Enquire About This Product
Overview
A clamp-on earth tester measures the resistance of an earth electrode in a multi-grounded system without disconnecting it and without auxiliary stakes. The clamp induces a test voltage into the earth loop and measures the resulting current, giving the combined resistance of the electrode and the loop. That makes it fast and safe for routine checks on power poles, telecom sites, lightning protection and building earths, and it can find earth faults that the traditional stake method cannot reach.

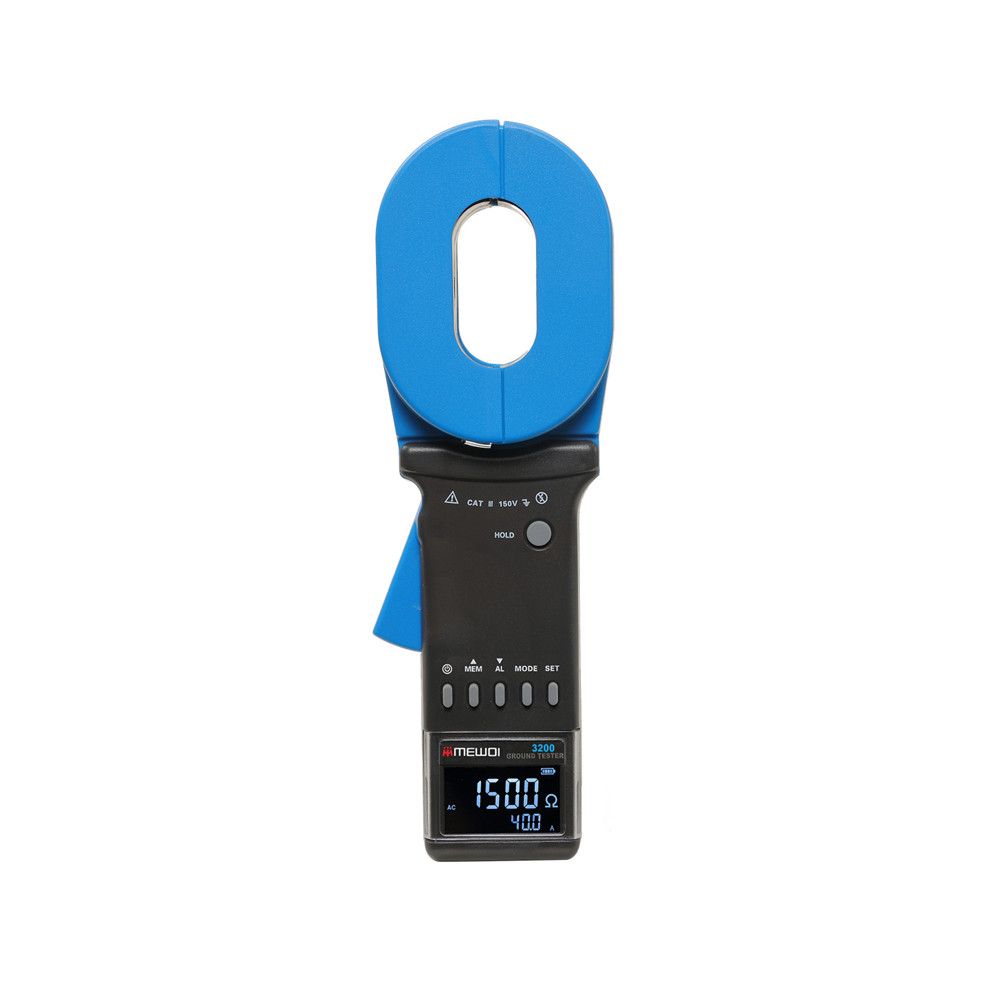

MEWOI's range differs in three ways: resistance range (200Ω, 1000Ω, 1200Ω or 1500Ω), clamp jaw shape (55×32mm or 65×32mm elongated jaws for flat bar and multiple conductors, or ø32mm round jaws in the 3100 series), and whether the meter also measures earth leakage current (the D models and the MEWOI3200). The flagship MEWOI3200 reaches 1500Ω and 40A leakage, stores 999 readings, has USB download and runs on rechargeable batteries.
Which model?
For basic go/no-go checks of low-resistance earths, the 200Ω B models are enough. For general earthing work choose a 1000–1200Ω model, and pick a D model or the MEWOI3200 if you also want to see leakage current flowing in the earth conductor. Choose the 3100 series if you clamp mainly round cables, and the 65×32mm jaw for earth tape and grouped conductors.
Key Specifications
| Model | Resistance range | Leakage current | Jaw size | Data |
|---|---|---|---|---|
| MEWOI3000B | 0.01–200Ω | — | 55×32mm | 99 sets |
| MEWOI3000B+ | 0.01–200Ω | — | 65×32mm | 99 sets, RS232 optional |
| MEWOI3100B+ | 0.01–200Ω | — | ø32mm | 99 sets, RS232 optional |
| MEWOI3000 | 0.01–1000Ω | — | 55×32mm | 99 sets |
| MEWOI3000+ | 0.01–1200Ω | — | 65×32mm | 99 sets, RS232 optional |
| MEWOI3100+ | 0.01–1200Ω | — | ø32mm | 99 sets, RS232 optional |
| MEWOI3000D | 0.01–1000Ω | 0–30A | 55×32mm | 99 sets |
| MEWOI3000D+ | 0.01–1200Ω | 0–20A | 65×32mm | 99 sets, RS232 optional |
| MEWOI3100D+ | 0.01–1200Ω | 0–20A | ø32mm | 99 sets, RS232 optional |
| MEWOI3200 | 0.01–1500Ω | 0–40A | 65×32mm | 999 sets, USB; rechargeable |
| MEWOI3200 detail | Value |
|---|---|
| Resistance resolution / accuracy | 0.001Ω / ±1% ±0.01Ω (best) |
| Current resolution / accuracy | 0.05mA / ±2.5% ±1mA (best) |
| Measurement | >1kHz test frequency, 0.5s per reading, auto ranging |
| Alarms | Resistance and current thresholds; interference (NOISE) indication |
| Jaw opening | 32mm |
| Safety | IEC 61010-1, IEC 61010-2-032, CAT III 150V, double insulated |
| Operating conditions | -20 to 55°C, 20–90% RH |
| Size / weight | 285×85×56mm / 1160g with batteries |
Features
- No need to disconnect the earth or drive auxiliary stakes
- Ten models from 200Ω to 1500Ω range
- D models and MEWOI3200 also measure earth leakage current
- Elongated 65×32mm jaws for earth tape, or round ø32mm jaws (3100 series)
- Resistance and current alarm thresholds
- Data storage with RS232 or USB download (model dependent)
Applications
Power distribution pole and tower earths; telecom and mobile base station earthing; lightning protection systems; building and factory earth inspection; substation equipment earths; routine earth maintenance programmes.
