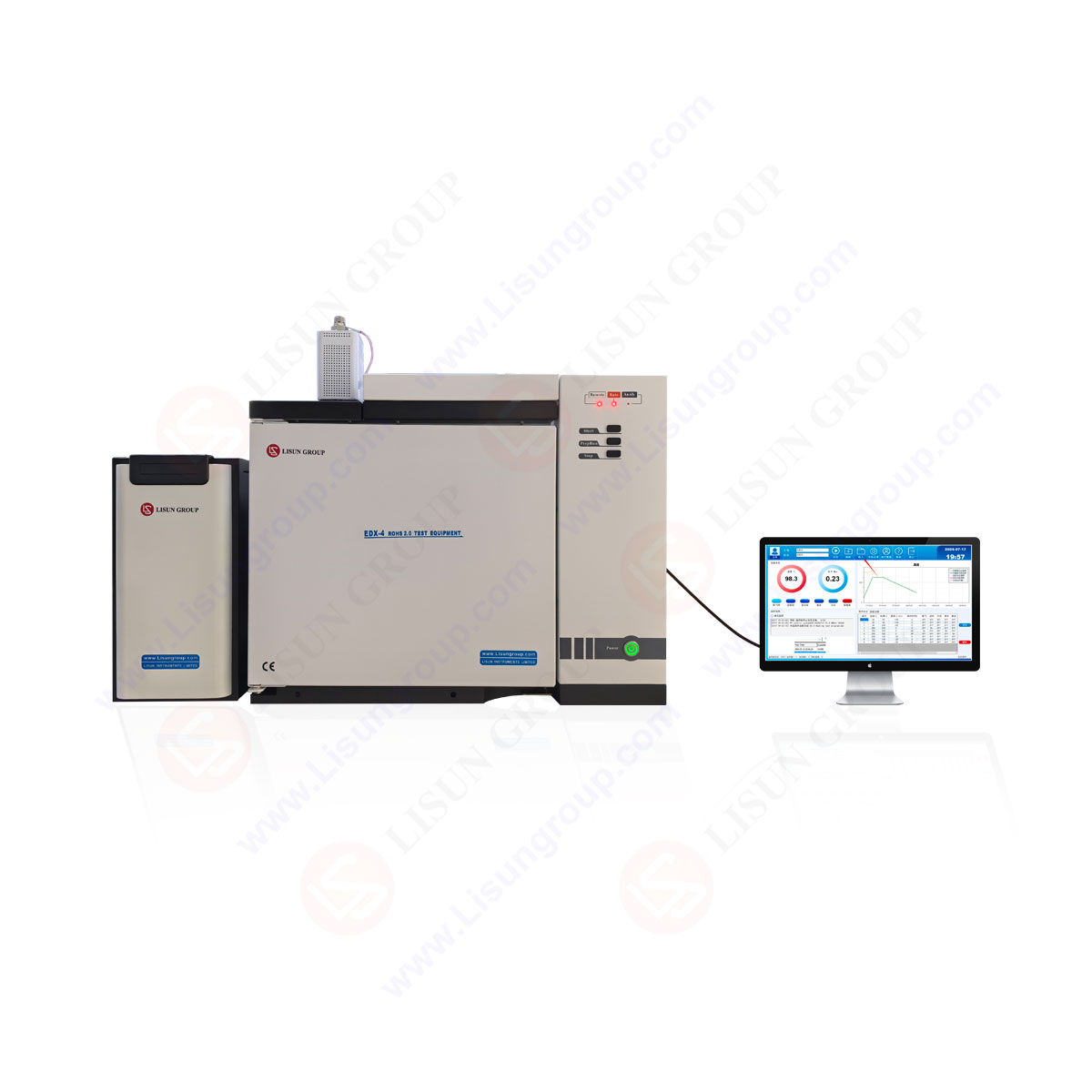

LISUN EDX-4 RoHS 2.0 Phthalate Screening System
Pyrolysis-GC system for screening the four RoHS 2.0 phthalates (DEHP, BBP, DBP, DIBP) with no solvent extraction: 20 minutes per sample, 25ppm detection limit.
Enquire About This Product
Overview
RoHS 2.0 (EU 2015/863) added four phthalate plasticisers — DEHP, BBP, DBP and DIBP — to the six substances restricted in electrical and electronic equipment, with a 1000ppm limit for each. XRF cannot detect them, because they are organic compounds rather than elements. The EDX-4 screens for them by pyrolysis thermal desorption followed by gas chromatography with a flame ionisation detector.
A few milligrams of solid sample, or 1µl of liquid, goes straight into a quartz tube with no grinding, ultrasonic extraction or solvents. The sample is heated, the released phthalates are separated on a dedicated column and quantified, and the workstation produces a report in one click. A run takes about 20 minutes, the method works on soluble, poorly soluble and insoluble polymers alike, and the lowest detection limit is 25ppm, well below the 1000ppm limit.
Because there is no wet chemistry, no reagent waste is produced and no specialist chemical laboratory is needed: an air-conditioned room with power, a bench, a nitrogen supply and a refrigerator for the standards is enough. The system is supplied with the pyrolysis unit, gas chromatograph, column, workstation, analytical balance, hydrogen and air generators, phthalate standards and consumables.
Pair it with the EDX-2 XRF analyser to screen all ten RoHS 2.0 substances.
Key Specifications
| Specification | EDX-4 |
|---|---|
| Target substances | DEHP, BBP, DBP, DIBP (RoHS 2.0, EU 2015/863) |
| Method | Pyrolysis thermal desorption + GC-FID |
| Sample preparation | None; solid <5mg or liquid 1µl direct injection |
| Test time | Approx. 20 minutes per sample |
| Detection limit | 25ppm (3× S/N) |
| Linearity / repeatability | R > 0.998; RSD 5.24% at detection limit |
| Pyrolysis unit | Room temperature to 450°C in 1°C steps; heating rate >500°C/min |
| GC oven | Ambient +5°C to 400°C; ±0.015°C control; 300→50°C in <12 min |
| Detector | FID; Mt ≤5×10⁻¹² g/s; linear range ≥10⁵ |
| Column | 15m dedicated capillary column |
| Supplied | Pyrolyser, GC, column, workstation, 0.1mg balance, H₂ and air generators, phthalate standards, consumables |
| Customer to provide | 99.999% nitrogen cylinder, refrigerator, PC desk |
Features
- Screens the four RoHS 2.0 phthalates
- No solvent extraction or sample pre-treatment
- About 20 minutes per sample
- 25ppm detection limit
- Works on soluble and insoluble polymers
- No chemical waste; no specialist lab required
Applications
RoHS 2.0 phthalate screening of cables, plastics, PVC compounds and housings; supplier material verification; electronics and toy manufacturing QA; medical device plastics and packaging.
