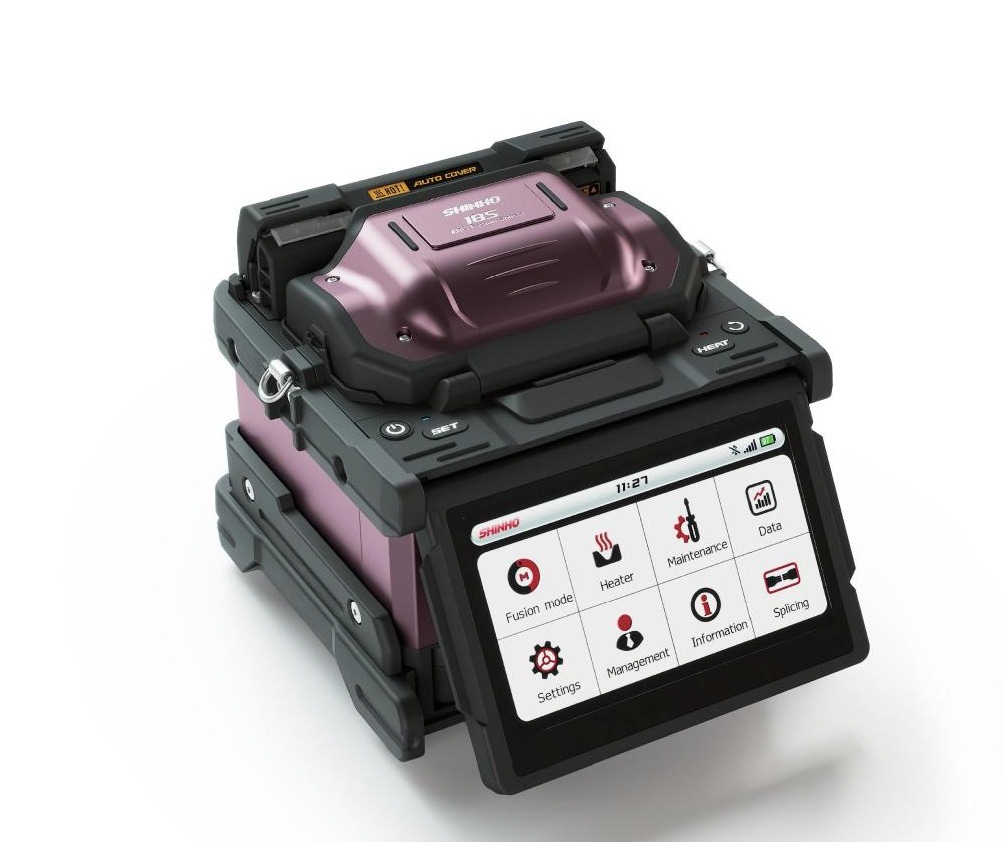

18S — XHFiber Active Cladding Alignment Fusion Splicer
SHINHO 18S Active Cladding Alignment Fusion Splicer — 4s fast splicing, 8s rapid heating, 0.02dB typical splice loss. Tool-free electrodes, IoT app connectivity.
Enquire About This Product
Overview
The SHINHO 18S is an active cladding-alignment fusion splicer built for fast, reliable splicing in the field. It splices in as little as 4 seconds (fast mode) and completes heat-shrink protection in 8 seconds, with a typical splice loss of 0.02dB on standard single-mode fiber and an average of 0.014dB across SHINHO's own splice-loss distribution testing.
Tool-free electrode replacement, an auto-flipping 5.0-inch touch display, and an interlocked windproof cover with automatic open/close heater keep the splicer fast to operate and protected in harsh field conditions. Special clamps handle loose tube fiber, with support for SOC and removable fiber holders. A detachable 6800mAh battery supports up to 550 splice-and-heat cycles, with Bluetooth 5.0 LE and an optional IoT module for device and data management through the SHINHO app.
Key Specifications
| Alignment Method | Active cladding alignment |
| Applicable Fiber | SM, MM, DS, NZDS, BIF etc. |
| Typical Splice Loss | SM: 0.02dB; MM: 0.01dB; DS/NZDS: 0.04dB; BIF: 0.02dB (avg. 0.014dB in SHINHO splice-loss distribution testing) |
| Return Loss | >60dB |
| Splicing Time | 4s (Fast mode); 6–7s (Standard mode) |
| Splicing / Heating Programs | 100 splicing modes; 40 heating modes (8–26s for 60mm sleeve) |
| Display | Dual high-sensitivity cameras, 5.0-inch HD colour LCD, auto-flipping |
| Results Storage | 500,000 splice records & 35,000 images (8GB SD card included) |
| Battery | Detachable 6800mAh — up to 550 splice-and-heat cycles |
| Wireless | Bluetooth 5.0 LE; optional IoT module for SHINHO app |
| Power Supply | External adapter, AC100–240V (50/60Hz), output DC13.5V |
| Operating Conditions | Altitude 0–5000m; Humidity 0–95%; Temp -10°C to +50°C; Max wind 15m/s |
| Dimensions | 153 x 153 x 135mm |
| Weight | 1.82kg (with battery) |
Features
- 4-second fast splicing, 8-second rapid heating
- Active cladding alignment
- Tool-free electrode replacement
- Special clamps for loose tube fiber; supports SOC and removable fiber holders
- Interlocked windproof cover with automatic open/close heater
- Auto-flipping 5.0-inch touch display
- Detachable 6800mAh battery — up to 550 splice-and-heat cycles
- Bluetooth 5.0 LE, optional IoT module for SHINHO app connectivity
- 500,000 splice records and 35,000 splice images stored (8GB SD card included)
- High-precision one-step cleaver for superior end face
Applications
FTTH and access-network installation; telecommunications field splicing and maintenance; compliance and test lab fiber work; general-purpose fiber optic installation requiring fast, reliable splicing.
