Temperature & Humidity Test Chambers

Programmable Temperature and Humidity Cycling, from Bench-Top to Walk-In Scale

Temperature and humidity cycling is the baseline environmental qualification test for most electronic, automotive, and industrial products — verifying that a design tolerates the range of climatic conditions it will actually see in service, from cold storage and transport through to hot, humid operating environments. It's the test most other environmental profiles (thermal shock, rapid change, corrosion) build on rather than replace.

Sonacme's range spans four chamber formats so equipment can be matched to the test article rather than over- or under-specifying capacity: a bench-top chamber for small components, a standard chamber line available in five working volumes from 64L to 1000L, a double-layer chamber that stacks two independent test spaces in one footprint, and walk-in rooms from 8m³ to 24m³ for full assemblies or batch testing. All models offer a working range down to -70°C (bench-top: -40°C) and up to +150°C or +180°C on request, with humidity control to 98%RH, and are programmed for multi-step profiles to the common IEC 60068-2 series, GB/T, and MIL-STD-810 test methods.

Temperature & Humidity Test Chambers
Inquire About This Range →

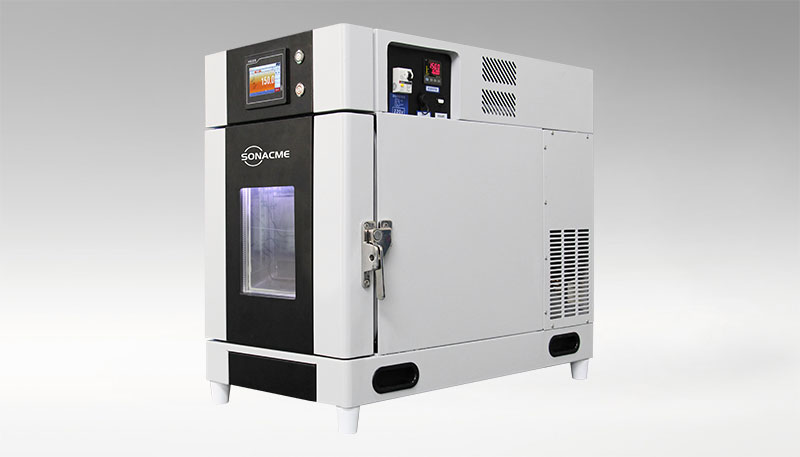

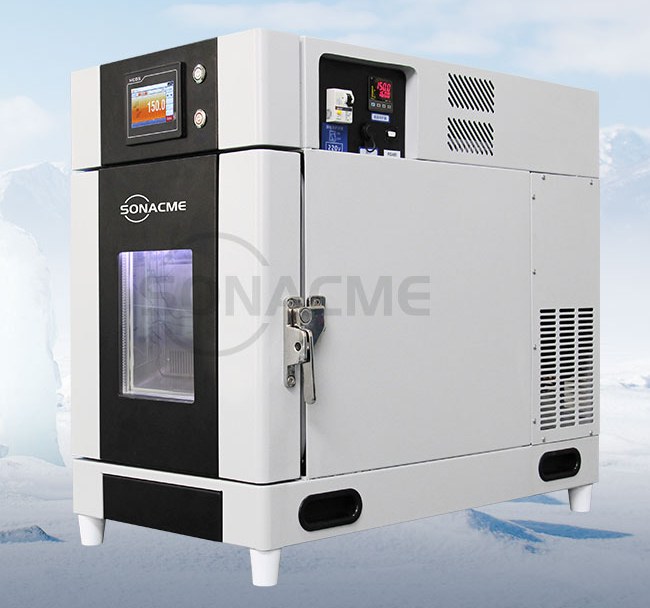

Sonacme Bench-Top Type Temperature Test Chamber

Bench-Top Temperature (& Humidity) Chamber

Compact 22L chamber for small components and sub-assemblies, with or without humidity control.
Enquire About This Series →

Common to every model

Volume22L
Test space (W×H×D)300×300×250mm
External size (W×H×D)440×740×780mm
Temperature range−40 to +150°C
Temperature fluctuation / uniformity±0.3°C / 2.5°C
Temperature change rateHeating 3.0°C/min, cooling 1.0°C/min
Allowable heat load300W (test area at +20°C)

Which model do I need?

Both versions are the same size and temperature range. The only difference is humidity control: choose ST/22/40(H) if your test needs humidity. Click a model for its full specifications.

ModelHumidity controlTemperature rangeVolume
ST/22/40(H)Yes, 30–95%RH, ±3.0%RH−40 to +150°C22L
ST/22/40No (temperature only)−40 to +150°C22L

Model specifications

22L · humidity

ST/22/40(H) Bench-Top Chamber

HumidityYes, 30–95%RH, ±3.0%RH
Volume22L
Test space (W×H×D)300×300×250mm
External size (W×H×D)440×740×780mm
Temperature range−40 to +150°C
Change rateHeating 3.0°C/min, cooling 1.0°C/min
Allowable heat load300W (test area at +20°C)
Enquire about ST/22/40(H) →
22L · temperature only

ST/22/40 Bench-Top Chamber

HumidityNo (temperature only)
Volume22L
Test space (W×H×D)300×300×250mm
External size (W×H×D)440×740×780mm
Temperature range−40 to +150°C
Change rateHeating 3.0°C/min, cooling 1.0°C/min
Allowable heat load300W (test area at +20°C)
Enquire about ST/22/40 →

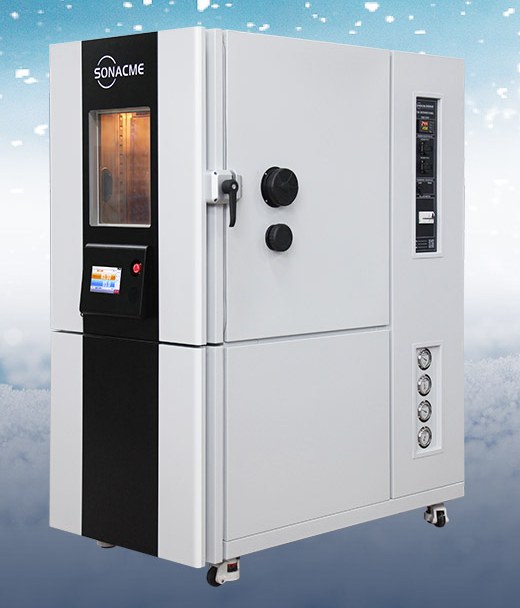

Sonacme Standard Temperature Humidity Test Chamber

Standard Temperature & Humidity Test Chambers

The core chamber line, in five working volumes from 64L to 1000L.
Enquire About This Series →

Common to every model

Temperature & humidity range−70 to +100°C (+150°C/+180°C option) / 10–98%RH
Temperature & humidity fluctuation±0.3°C / ±2.5%RH
Temperature uniformity1.5°C
Temperature change rateHeating 3.0°C/min, cooling 2.0°C/min
Construction1.5mm FC electrolytic steel exterior (anti-corrosion spray finish), 1.2mm SUS304 stainless steel test area

Which model do I need?

Performance is identical across all five, so choose by test space and load: 30kg on the 64L and 180L, rising to 100kg on the 1000L. Click a model for its full specifications.

ModelVolumeTest space W×H×D (mm)Max loadWeightExternal size W×H×D (mm)
ST/64/70(H)64L400×400×40030kg400kg640×1688×1305
ST/180/70(H)180L580×750×45030kg520kg800×1800×1570
ST/340/70(H)340L750×750×60050kg640kg950×1800×1885
ST/600/70(H)600L800×950×80080kg740kg1000×2000×1930
ST/1000/70(H)1000L1000×1000×1000100kg860kg1200×2050×1780

Model specifications

64L · 30kg

ST/64/70(H) Chamber

Volume64L
Test space (W×H×D)400×400×400mm
External size (W×H×D)640×1688×1305mm
Test area load capacity30kg
Weight400kg
Temperature & humidity−70 to +100°C (+150/+180°C option), 10–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/64/70(H) →
180L · 30kg

ST/180/70(H) Chamber

Volume180L
Test space (W×H×D)580×750×450mm
External size (W×H×D)800×1800×1570mm
Test area load capacity30kg
Weight520kg
Temperature & humidity−70 to +100°C (+150/+180°C option), 10–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/180/70(H) →
340L · 50kg

ST/340/70(H) Chamber

Volume340L
Test space (W×H×D)750×750×600mm
External size (W×H×D)950×1800×1885mm
Test area load capacity50kg
Weight640kg
Temperature & humidity−70 to +100°C (+150/+180°C option), 10–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/340/70(H) →
600L · 80kg

ST/600/70(H) Chamber

Volume600L
Test space (W×H×D)800×950×800mm
External size (W×H×D)1000×2000×1930mm
Test area load capacity80kg
Weight740kg
Temperature & humidity−70 to +100°C (+150/+180°C option), 10–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/600/70(H) →
1000L · 100kg

ST/1000/70(H) Chamber

Volume1000L
Test space (W×H×D)1000×1000×1000mm
External size (W×H×D)1200×2050×1780mm
Test area load capacity100kg
Weight860kg
Temperature & humidity−70 to +100°C (+150/+180°C option), 10–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/1000/70(H) →

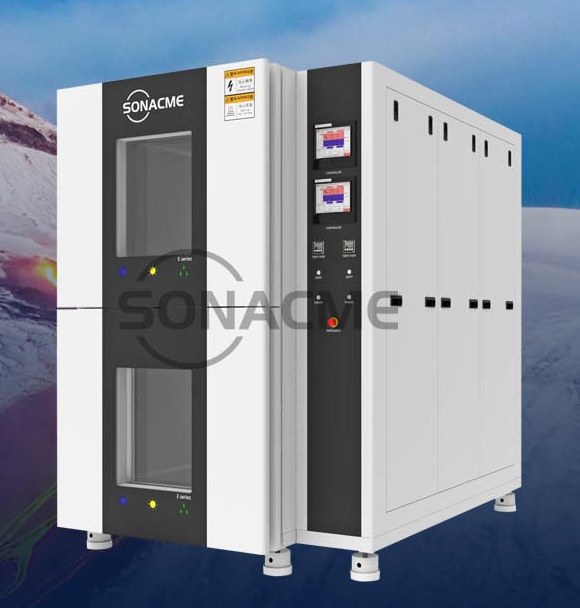

Sonacme Double Layer Temperature Humidity Test Chamber

Double-Layer Temperature & Humidity Test Chambers

Two stacked test chambers in one footprint, for running two test articles or profiles at once.
Enquire About This Series →

Common to every model

Temperature & humidity range−70 to +100°C (+150°C/+180°C option) / 20–98%RH
Temperature & humidity fluctuation±0.3°C / ±2.5%RH
Temperature uniformity1.5°C
Temperature change rateHeating 3.0°C/min, cooling 2.0°C/min

Which model do I need?

Choose by test space and allowable heat load, the power your powered-up test articles give off (200W to 600W at +20°C). Click a model for its full specifications.

ModelVolumeTest space W×H×D (mm)Allowable heat load (+20°C)External size W×H×D (mm)
ST/60/70(H)/264L340×340×500200W820×1440×1510
ST/180/70(H)/2180L580×450×750400W1050×1550×2010
ST/340/70(H)/2340L580×765×750600W1050×1910×2010

Model specifications

64L · 200W

ST/60/70(H)/2 Double-Layer Chamber

Volume64L
Test space (W×H×D)340×340×500mm
External size (W×H×D)820×1440×1510mm
Allowable heat load200W (test area at +20°C)
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/60/70(H)/2 →
180L · 400W

ST/180/70(H)/2 Double-Layer Chamber

Volume180L
Test space (W×H×D)580×450×750mm
External size (W×H×D)1050×1550×2010mm
Allowable heat load400W (test area at +20°C)
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/180/70(H)/2 →
340L · 600W

ST/340/70(H)/2 Double-Layer Chamber

Volume340L
Test space (W×H×D)580×765×750mm
External size (W×H×D)1050×1910×2010mm
Allowable heat load600W (test area at +20°C)
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about ST/340/70(H)/2 →

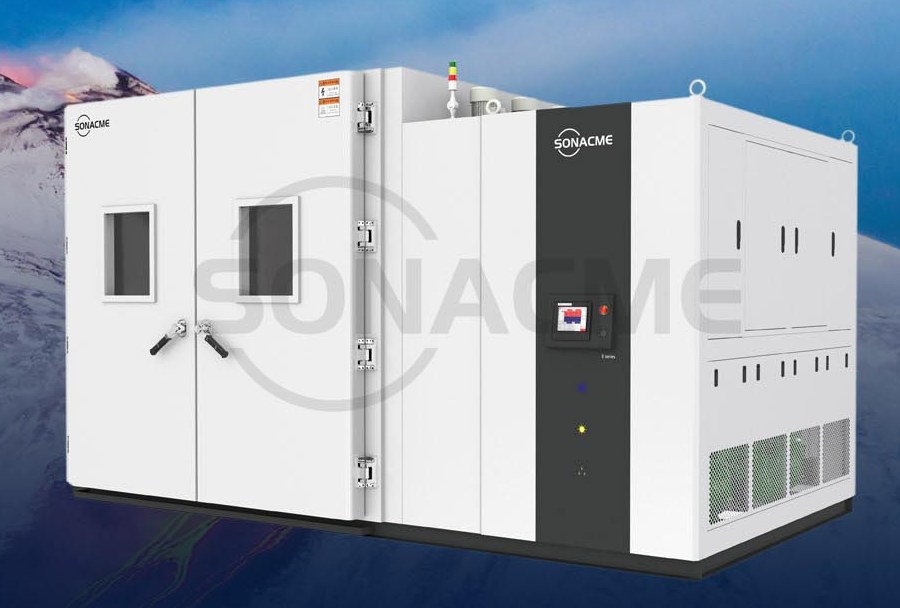

Sonacme Walk-In Temperature Humidity Test Chamber

Walk-In Temperature & Humidity Test Chambers

Room-sized chambers from 8m³ to 24m³ for full assemblies or batch testing.
Enquire About This Series →

Common to every model

Temperature & humidity range−70 to +100°C (+150°C/+180°C option) / 20–98%RH
Temperature & humidity fluctuation≤±2°C / ≤±3%RH
Temperature uniformity1.5°C
Temperature change rateHeating 3.0°C/min, cooling 2.0°C/min
Allowable heat load8000W (test area at +20°C)

Which model do I need?

All walk-in models are 2m high inside with the same performance, so choose by floor area for what you need to test at once. Click a model for its full specifications.

ModelVolumeTest space W×H×D (mm)External size W×H×D (mm)
SWT/08/70(H)8m³2000×2000×20004000×2350×2650
SWT/12/70(H)12m³2000×2000×30004000×2350×3650
SWT/18/70(H)18m³3000×2000×30005000×2350×3650
SWT/24/70(H)24m³3000×2000×40005000×2350×4850

Model specifications

8m³

SWT/08/70(H) Walk-In Chamber

Volume8m³
Test space (W×H×D)2000×2000×2000mm
External size (W×H×D)4000×2350×2650mm
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SWT/08/70(H) →
12m³

SWT/12/70(H) Walk-In Chamber

Volume12m³
Test space (W×H×D)2000×2000×3000mm
External size (W×H×D)4000×2350×3650mm
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SWT/12/70(H) →
18m³

SWT/18/70(H) Walk-In Chamber

Volume18m³
Test space (W×H×D)3000×2000×3000mm
External size (W×H×D)5000×2350×3650mm
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SWT/18/70(H) →
24m³

SWT/24/70(H) Walk-In Chamber

Volume24m³
Test space (W×H×D)3000×2000×4000mm
External size (W×H×D)5000×2350×4850mm
Temperature & humidity−70 to +100°C (+150/+180°C option), 20–98%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SWT/24/70(H) →
Frequently Asked Questions
What temperature and humidity range do these chambers cover?
The standard, double-layer and walk-in models run from −70°C up to +100°C as standard, with +150°C or +180°C options, and 10–98%RH (20–98%RH on double-layer and walk-in models). The bench-top model covers −40°C to +150°C, with 30–95%RH on the ST/22/40(H) humidity version.
How fast do these chambers change temperature?
Standard, double-layer and walk-in models heat at 3.0°C/min and cool at 2.0°C/min. The bench-top model heats at 3.0°C/min and cools at 1.0°C/min.
How accurate is the temperature and humidity inside the chamber?
Temperature fluctuation is ±0.3°C with 1.5°C uniformity (2.5°C on the bench-top model), and humidity fluctuation ±2.5%RH (±3.0%RH bench-top). Walk-in models hold ≤±2°C and ≤±3%RH.
