Directional Couplers, Waveguide Adapters, Attenuators, Terminations, and RF Relays

An RF power amplifier rarely does its job alone — sampling forward and reflected power for protection and monitoring, adapting between coaxial cable and waveguide-fed antennas, conditioning signal levels, and switching a test path between destinations all need dedicated passive hardware around the amplifier itself. Bonn Elektronik's passive RF component range covers exactly this supporting infrastructure, the connective hardware that turns a standalone amplifier into a complete, working test system.

Directional couplers (BDC) sample forward and reflected power without disrupting the main signal path, essential for amplifier protection circuits and power monitoring in any RF test chain. Waveguide-coax adapters (BWCA) bridge coaxial test equipment to waveguide-fed antennas at microwave and mm-wave frequencies, where waveguide becomes the practical transmission medium as frequency climbs. Power attenuators (BCA) and terminations (BCT/BWT) handle signal conditioning and clean, reflection-free termination, and a high-power SPDT relay (BCR) switches an RF path between two destinations without manual cable reconfiguration.

Spanning DC to 50GHz across over 100 standard variants, this range is built to match whatever supporting hardware a given amplifier-driven test chain actually needs, rather than treating the amplifier as a standalone instrument that somehow connects itself to the rest of the system.

Frequently Asked Questions

Why does an RF test chain need directional couplers rather than measuring power directly at the amplifier output?

A directional coupler samples a small, known fraction of forward and reflected power without disrupting the main signal path, letting power be monitored continuously during a test — including detecting a reflected power fault — without inserting a full measurement instrument in-line with the main signal.

When is a waveguide-coax adapter needed instead of staying in coaxial cable throughout?

At microwave and millimetre-wave frequencies, coaxial cable loss and mode issues make waveguide the more practical transmission medium, particularly near an antenna — a waveguide-coax adapter bridges coaxial test equipment (amplifiers, sources, measurement instruments) to a waveguide-fed antenna at these higher frequencies.

What's the purpose of a high-power SPDT RF relay in a test setup?

It allows an RF signal path to be switched electronically between two destinations — for example, alternating a test signal between two antennas or two measurement paths — without manually reconnecting cables, which matters for automated or repeated test sequences.

See Bonn Elektronik's technical documentation for their RF components range →

Bonn Elektronik RF Components
Inquire About This Range →
CouplersWG-Coax AdaptersAttenuatorsTerminationsRelay
BDC Series Directional Couplers
BDC Series — Directional Couplers
Coaxial directional couplers from 4kHz to 50GHz across 81 standard frequency ranges, for sampling forward and reflected power in an RF test chain — essential for power monitoring and VSWR measurement alongside a power amplifier.
View Product Details →
ModelFrequency Range
BDC 00404 kHz ... 400 MHzView
BDC 00504 kHz ... 500 MHzView
BDC 01109 kHz ... 100 MHzView
BDC 01259 kHz ... 250 MHzView
BDC 01409 kHz ... 400 MHzView
BDC 01509 kHz ... 500 MHzView
BDC 01009 kHz ... 1 GHzView
BDC 0110100 kHz ... 1 GHzView
BDC 0103500 kHz ... 32 MHzView
BDC 01031 ... 30 MHzView
BDC 01011 ... 100 MHzView
BDC 01101 MHz ... 1 GHzView
BDC 01201 MHz ... 2 GHzView
BDC 01031.5 ... 30 MHzView
BDC 100110 ... 100 MHzView
BDC 100210 ... 200 MHzView
BDC 100510 ... 500 MHzView
BDC 101010 MHz ... 1 GHzView
BDC 020120 ... 100 MHzView
BDC 021320 ... 130 MHzView
BDC 025020 ... 500 MHzView
BDC 025020 ... 520 MHzView
BDC 025020 ... 550 MHzView
BDC 021020 MHz ... 1 GHzView
BDC 022520 MHz ... 2.6 GHzView
BDC 032530 MHz ... 2.5 GHzView
BDC 085080 ... 500 MHzView
BDC 081080 MHz ... 1 GHzView
BDC 1050100 ... 500 MHzView
BDC 0102100 MHz ... 2.5 GHzView
BDC 0130100 MHz ... 3 GHzView
BDC 0160 (ISO 11452-9)100 ... 6000 MHzView
BDC 0160100 ... 6000 MHzView
BDC 0160142 ... 6000 MHzView
BDC 2010200 MHz ... 1 GHzView
BDC 0260200 MHz ... 6 GHzView
BDC 0330300 MHz ... 3 GHzView
BDC 0437380 MHz ... 3.7 GHzView
BDC 4010400 MHz ... 1 GHzView
BDC 0560450 MHz ... 6 GHzView
BDC 0580450 MHz ... 8 GHzView
BDC 5010500 MHz ... 1 GHzView
BDC 0530500 MHz ... 3 GHzView
BDC 0560500 MHz ... 6 GHzView
BDC 0518500 MHz ... 18 GHzView
BDC 0660600 MHz ... 6 GHzView
BDC 0742700 MHz ... 4.2 GHzView
BDC 0780700 MHz ... 5 GHzView
BDC 0760700 MHz ... 6 GHzView
BDC 0780700 MHz ... 8 GHzView
BDC 0913900 MHz ... 1.3 GHzView
BDC 10201 ... 2 GHzView
BDC 10251 ... 2.5 GHzView
BDC 10401 ... 4 GHzView
BDC 10601 ... 6 GHzView
BDC 10801 ... 8 GHzView
BDC 10181 ... 18 GHzView
BDC 10261 ... 26.5 GHzView
BDC 01401 ... 40 GHzView
BDC 10401 ... 40 GHzView
BDC 20802 ... 8 GHzView
BDC 20182 ... 18 GHzView
BDC 20262 ... 26.5 GHzView
BDC 26392.6 ... 3.95 GHzView
BDC 30123 ... 12 GHzView
BDC 40804 ... 8 GHzView
BDC 40124 ... 12.4 GHzView
BDC 40184 ... 18 GHzView
BDC 50185 ... 18 GHzView
BDC 60186 ... 18 GHzView
BDC 60266 ... 26.5 GHzView
BDC 60406 ... 40 GHzView
BDC 70187 ... 18 GHzView
BDC 70107.05 ... 10 GHzView
BDC 80187.5 ... 18 GHzView
BDC 80128.2 ... 12.4 GHzView
BDC 121812.4 ... 18 GHzView
BDC 182618 ... 26.5 GHzView
BDC 184018 ... 40 GHzView
BDC 264026.5 ... 40 GHzView
BDC 335033 ... 50 GHzView
BWCA Series Waveguide Coax Adapters
BWCA Series — Waveguide-Coax Adapters
Waveguide-to-coaxial transitions from 840MHz to 50GHz across 17 standard frequency ranges, for interfacing coaxial test equipment with waveguide-fed antennas and amplifiers at microwave and mm-wave frequencies.
View Product Details →
ModelFrequency Range
BWCA 0820840 MHz ... 2 GHzView
BWCA 17261.7 ... 2.6 GHzView
BWCA 20482 ... 4.8 GHzView
BWCA 22332.2 ... 3.3 GHzView
BWCA 25752.5 ... 7.5 GHzView
BWCA 33493.3 ... 4.9 GHzView
BWCA 35803.5 ... 8 GHzView
BWCA 05185 ... 18 GHzView
BWCA 06186.5 ... 18 GHzView
BWCA 07107 ... 10 GHzView
BWCA 08187.5 ... 18 GHzView
BWCA 101510 ... 15 GHzView
BWCA 121812.4 ... 18 GHzView
BWCA 182618 ... 26.5 GHzView
BWCA 184018 ... 40 GHzView
BWCA 264026.5 ... 40 GHzView
BWCA 335033 ... 50 GHzView
BCA Series RF Power Attenuators

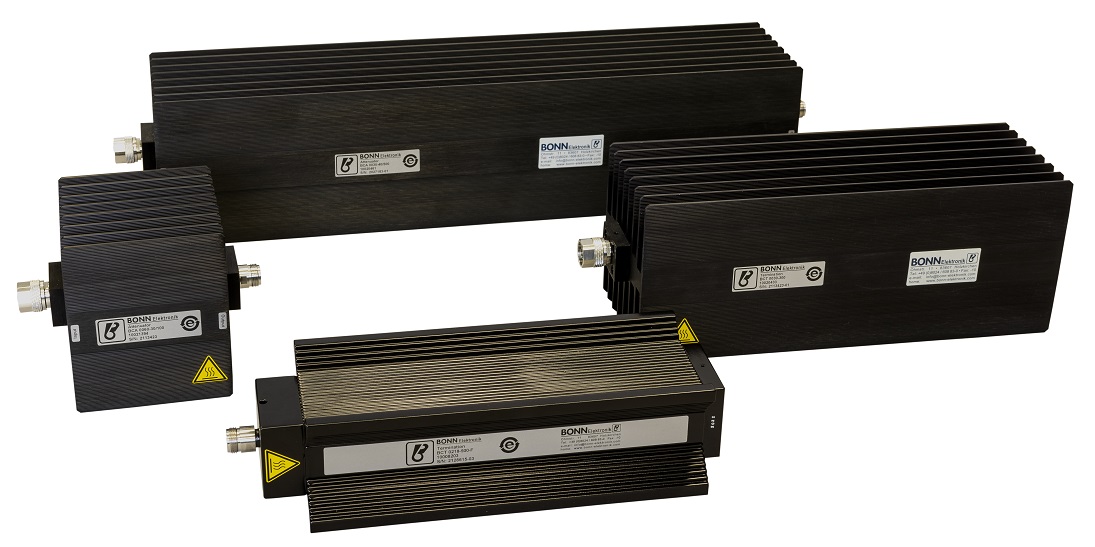

BCA Series — RF Power Attenuators
Coaxial power attenuators from DC to 40GHz across 7 standard frequency ranges, for controlled signal level reduction ahead of sensitive measurement equipment or to protect an amplifier input from overdrive.
View Product Details →
ModelFrequency Range
BCA 0025DC ... 2.4 GHzView
BCA 0030DC ... 3 GHzView
BCA 0060DC ... 6 GHzView
BCA 0080DC ... 8.5 GHzView
BCA 0018DC ... 18 GHzView
BCA 0026DC ... 26.5 GHzView
BCA 0040DC ... 40 GHzView
BCT BWT Series RF Power Terminations
BCT / BWT Series — RF Power Terminations
Coaxial (BCT) and waveguide (BWT) terminations from DC to 40GHz, for absorbing RF power at an unused port or terminating a test chain cleanly to avoid reflections.
View Product Details →
ModelFrequency RangeType
BCT 0010DC ... 1 GHzCoaxialView
BCT 0030DC ... 3 GHzCoaxialView
BCT 0060DC ... 6 GHzCoaxialView
BCT 02182 ... 18 GHzCoaxialView
BWT 60186 ... 18 GHzWaveguideView
BWT 80188 ... 18 GHzWaveguideView
BWT 264026.5 ... 40 GHzWaveguideView
BCR Series RF High-Power Relay
BCR Series — RF High-Power Relay
Coaxial SPDT high-power switching relay, DC to 4GHz and 4kW CW — for switching a high-power RF path between two destinations, such as alternating a test chain between a DUT and a reference load.
View Product Details →
ModelFrequency Range
BCR 0040-4000DC ... 4 GHzView
