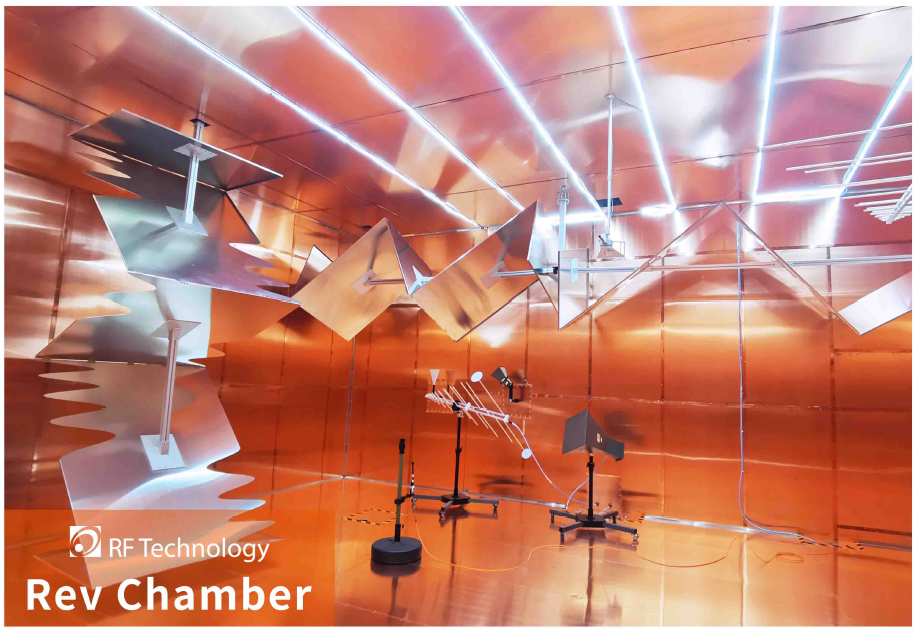

RC — RF Technology Reverberation Chamber
RF Technology Reverberation Chamber — statistically uniform field for IEC61000-4-21, MIL-STD-461, RTCA/DO-160 immunity and TRP testing. Available in 4 LUF configurations. Turnkey by Finch.
Enquire About This Product
Overview
The RF Technology Reverberation Chamber is a highly reflective shielded enclosure used to generate a statistically uniform and isotropic electromagnetic field for radiated immunity testing, total radiated power (TRP) measurements, and materials shielding effectiveness testing. Unlike an anechoic chamber, the reverberation chamber uses metallic reflective surfaces and rotating mode-stirrers to create a complex, randomised field environment that provides omnidirectional illumination of the equipment under test.
Available in multiple configurations according to the Lower Usable Frequency (LUF), ranging from 80MHz to 1GHz and above, with chamber dimensions scaled accordingly. Standard reference models include the RC80 (LUF 80MHz, shield body 12.7m×10.8m×6.4m, test area 7.0m×7.0m×4.5m) and the RC200 (LUF 200MHz, shield body 5.2m×4.0m×3.0m, test area 2.5m×1.8m×2.3m). Custom LUF and dimensions are available.
The chamber meets IEC61000-4-21, MIL-STD-461, RTCA/DO-160, and EUROCAE/ED-14 standards. Supplied and installed in Australia by Finch Electronic Solutions as a turnkey project.
Key Specifications
LUF options: 80MHz / 200MHz / 400MHz / 1GHz | Custom dimensions to suit EUT and frequency requirements | Mode stirrer: rotating metallic | Standards: IEC61000-4-21, MIL-STD-461, RTCA/DO-160, EUROCAE/ED-14
RC Variants
The Reverberation Chamber is available in four Lower Usable Frequency (LUF) configurations, with chamber dimensions scaled accordingly.
| Model | LUF | Shield Body | Test Area | |
|---|---|---|---|---|
| RC80 | 80MHz | 12.7×10.8×6.4m | 7.0×7.0×4.5m | Base model |
| RC200 | 200MHz | 5.2×4.0×3.0m | 2.5×1.8×2.3m | Compact configuration |
| RC-LUF400 | 400MHz | Custom to suit | Custom to suit | Custom dimensions |
| RC-LUF1000 | 1GHz | Custom to suit | Custom to suit | Custom dimensions |
Features
- Statistically uniform and isotropic field for omnidirectional EUT illumination
- Rotating mode-stirrers for field randomisation and statistical uniformity
- Multiple LUF options: 80MHz, 100MHz, 200MHz, 400MHz, 1GHz and above
- RC80: LUF 80MHz; shield body 12.7×10.8×6.4m; test area 7.0×7.0×4.5m
- RC200: LUF 200MHz; shield body 5.2×4.0×3.0m; test area 2.5×1.8×2.3m
- Custom sizes and LUF available to suit EUT dimensions and frequency requirements
- Highly reflective metallic interior surfaces
- Suitable for radiation immunity, TRP, and shielding effectiveness testing
- Meets IEC61000-4-21, MIL-STD-461, RTCA/DO-160, EUROCAE/ED-14
- Turnkey supply and installation by Finch Electronic Solutions
Applications
Radiated immunity testing (IEC61000-4-21); Total radiated power (TRP) measurement; Materials shielding effectiveness testing; Aerospace and avionics EMC testing (RTCA/DO-160, EUROCAE/ED-14); Military equipment radiated susceptibility (MIL-STD-461); Wireless device over-the-air (OTA) throughput testing; Antenna efficiency measurement
