CZKS-3 Plug, Socket and Switch Life Tester – LISUN

CZKS-3 / CZKS-3P / CZKS-3S / CZKS-3A

LISUN CZKS-3 life tester for plugs, sockets and switches to IEC 60884-1 Clauses 20-21, IEC 60669-1 and IEC 61058-1: 3 pneumatic stations, linear and rotary.

Electrical Safety Test Equipment
Plug, Switch & Cable Test
Floor-standing Tester
IEC 60884-1:2022 Clauses 20 and 21; IEC 60669-1:2017; IEC 61058-1:2020; GB/T 2099.1-2021; GB 16915.1-2024; GB/T 15092.1-2020
Enquire About This Product

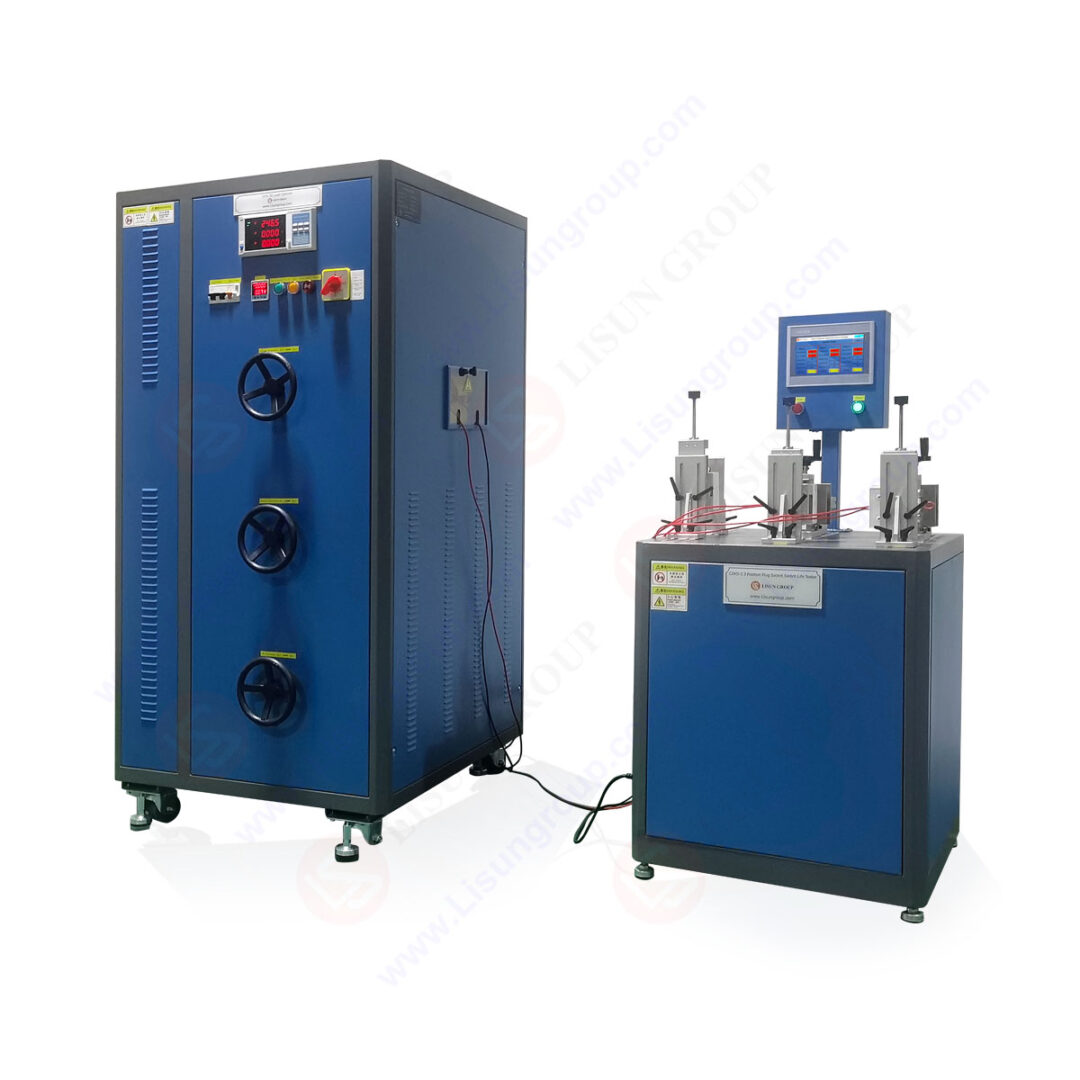

LISUN CZKS-3 Plug, Socket and Switch Life Tester

Overview

Sockets and switches are tested for breaking capacity and normal operation by repeatedly making and breaking a load, thousands of times, while checking for welding of contacts, failure to open or close, and excessive wear. IEC 60884-1 Clauses 20 and 21 cover plugs and sockets; IEC 60669-1 and IEC 61058-1 cover switches.

The CZKS-3 series carry out these tests with pneumatic cylinders under PLC control and a large touch screen. Each of the three stations is independent, with linear stroke of -40 to 110mm and rotation of 0 to 360° for rotary switches, and a universal fixture adjustable in height. Models differ in their mix of plug/socket and switch stations. Compressed air at 4 to 6kg/cm² is required; LISUN offers matching air compressors.

Key Specifications

SpecificationCZKS-3CZKS-3PCZKS-3SCZKS-3A
Stations2 plug/socket + 1 switch3 plug/socket3 switch1 socket + 2 switch
DrivePneumatic cylinder, air 4~6kg/cm² (customer supplied)
ControlPLC with large touch screen
On/off time0~99.9s, adjustable
Cycle count0~999,999, adjustable
StrokeLinear -40~110mm; rotary 0~360°
SpeedLinear 0~100mm/s; rotary 0~90°/s
FixtureUniversal, height adjustable (custom on request)

Features

Applications

Frequently asked questions

Does it include an air supply?

No. Compressed air at 4 to 6kg/cm² is needed; LISUN offers LS-EU800W2-55L and LS-US800W2-55L compressors.

Does it supply the test load?

The tester operates the samples mechanically; the electrical load is connected according to the standard being applied.
