LS-B18 Plug Gripping Tester (IEC 60884-1 Annex B) – LISUN

LS-B18

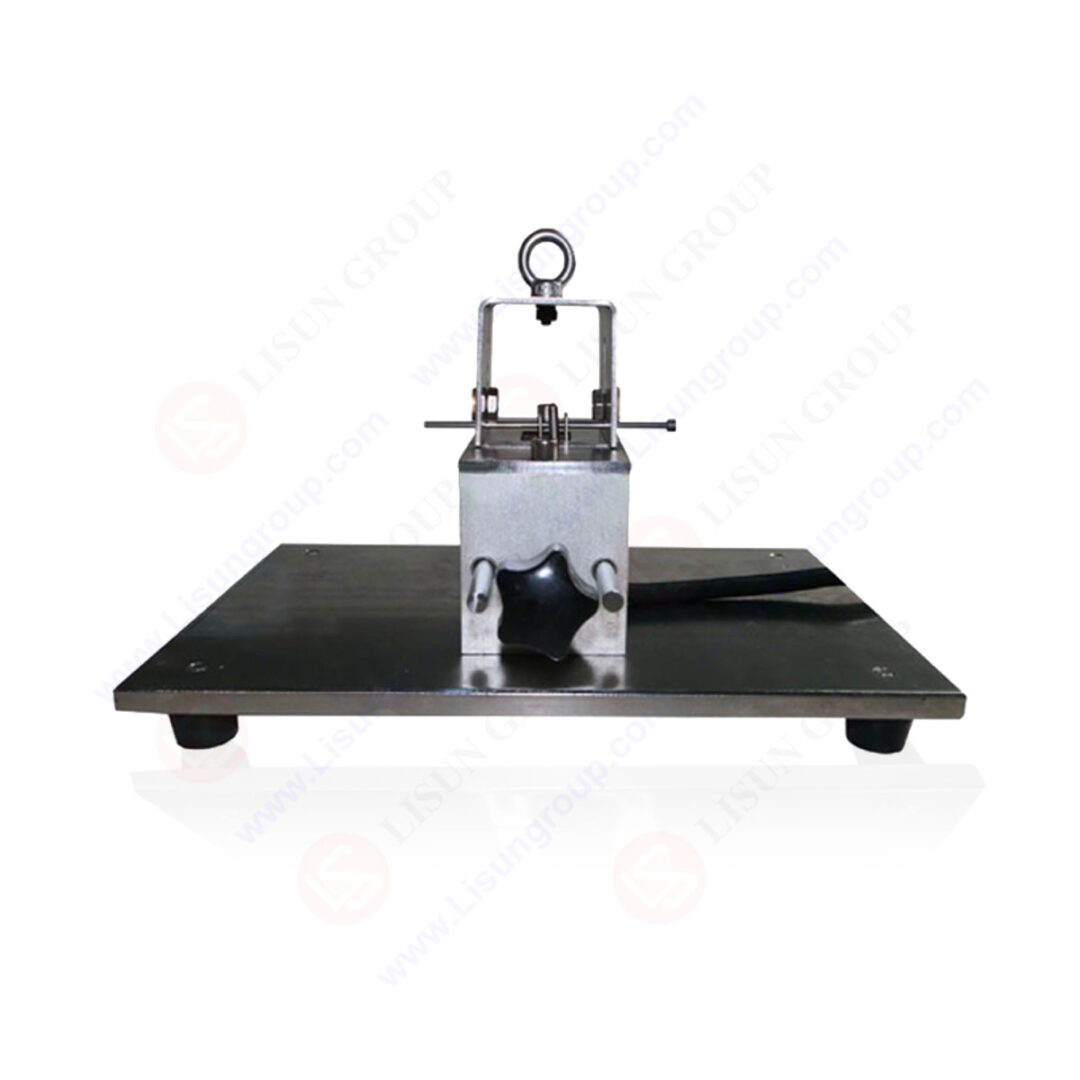

LISUN LS-B18 plug gripping test device with stainless steel reference plug and 200N force gauge, to compare plug grip against IEC 60884-1 Annex B.

Electrical Safety Test Equipment
Plug, Switch & Cable Test
Test Fixture
IEC 60884-1:2022 Annex B; GB/T 2099.1-2021
Enquire About This Product
LISUN LS-B18 Plug Gripping Tester (IEC 60884-1 Annex B)

Overview

IEC 60884-1 Annex B checks how well a plug's body can be gripped for removal from a socket, by comparing the pull needed on the test plug with that on a smooth reference plug of defined shape and surface finish.

The LS-B18 includes the test fixture, a 304 stainless steel reference plug with a surface roughness of 0.5 to 0.8μm, and a 200N digital force gauge. The sample is clamped flush with the plate, pulled three times and recorded, then the reference plug is tested the same way and the two sets of values are compared.

Key Specifications

ItemSpecification
Reference plug304 stainless steel, Ra 0.5~0.8μm, 1 piece
Force gaugeDigital, 200N
FixtureIncluded

Features

Applications

Frequently asked questions

How is the result judged?

The force values for the test plug are compared with those for the reference plug, as Annex B of IEC 60884-1 describes.
