Overview

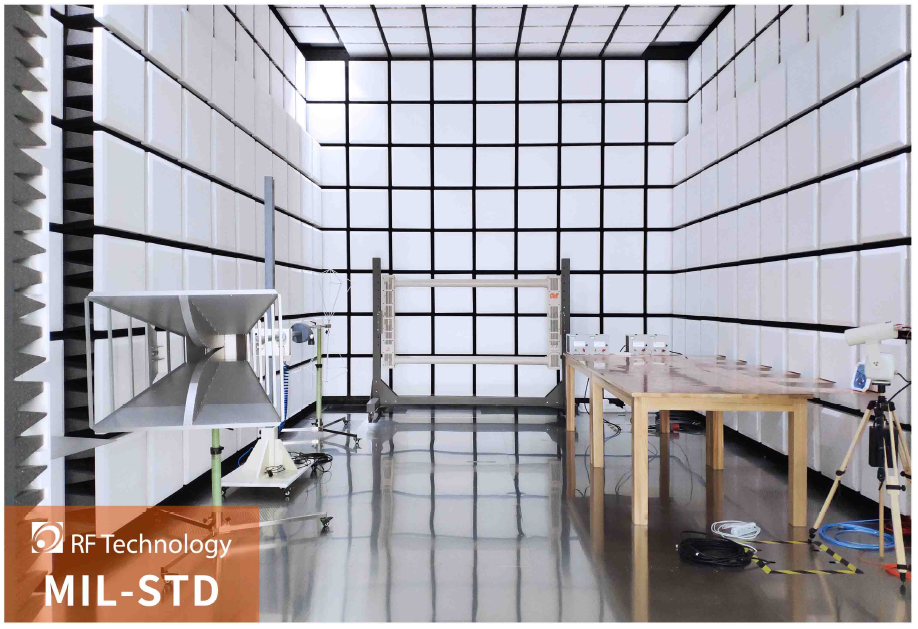

The RF Technology MIL-STD Chamber is a shielded anechoic test facility designed to meet the requirements of MIL-STD-461 for the control of electromagnetic interference characteristics of subsystems and equipment. The chamber provides the controlled electromagnetic environment required for both emissions (RE, CE) and susceptibility (RS, CS) testing of military and defence electronics.
The chamber is constructed with high-performance pan-type galvanised steel shielding to achieve the attenuation levels required by MIL-STD-461, with absorber treatment appropriate to the radiated test methods. The test area accommodates standard MIL-STD-461 test setups including the 1m measurement distance, ground plane, line impedance stabilisation networks (LISN), and bulk current injection (BCI) setups.
Custom sizing and configuration are available to suit the equipment under test (EUT) dimensions and the specific MIL-STD-461 test methods required. Supplied and installed in Australia by Finch Electronic Solutions.
Key Specifications
Test standard: MIL-STD-461 | High-performance pan-type shielding | Absorber treatment for RE101, RE102, RS101, RS103 | Accommodates 1m measurement geometry, ground plane, LISN, BCI setups | Custom sizing to suit EUT dimensions | Custom shielding attenuation on enquiry
Features
- Purpose-built for MIL-STD-461 radiated and conducted emissions and susceptibility testing
- High-performance pan-type galvanised steel shielding
- Absorber treatment for radiated emission and susceptibility methods (RE101, RE102, RS101, RS103)
- Accommodates standard 1m measurement geometry and MIL-STD-461 test setups
- Ground plane, LISN and BCI setup accommodation
- Custom sizing to suit EUT dimensions and test method requirements
- Shielded door options: swing or sliding
- Turnkey supply and installation by Finch Electronic Solutions
Applications
MIL-STD-461 radiated and conducted emissions testing (RE101, RE102, CE101, CE102); MIL-STD-461 radiated and conducted susceptibility testing (RS101, RS103, CS101, CS114, CS115, CS116); Defence electronics qualification and certification; Naval, airborne, and ground-based equipment EMC compliance; Aerospace electronics MIL-STD testing
