LSBCI-40 Bulk Current Injection (BCI) Test System – LISUN

LSBCI-40-100W / LSBCI-40-120W

LISUN LSBCI-40 BCI system to ISO 11452-4 and SAE J1113-4: 100kHz–400MHz, generator, power meter, 100W/120W amplifier and coupler in one 4U unit.

EMC & EMI Test Equipment
EMS Test System
19-inch 4U Instrument
ISO 11452-4:2020; SAE J1113/4-2020; GB/T 33014.4-2016
Enquire About This Product

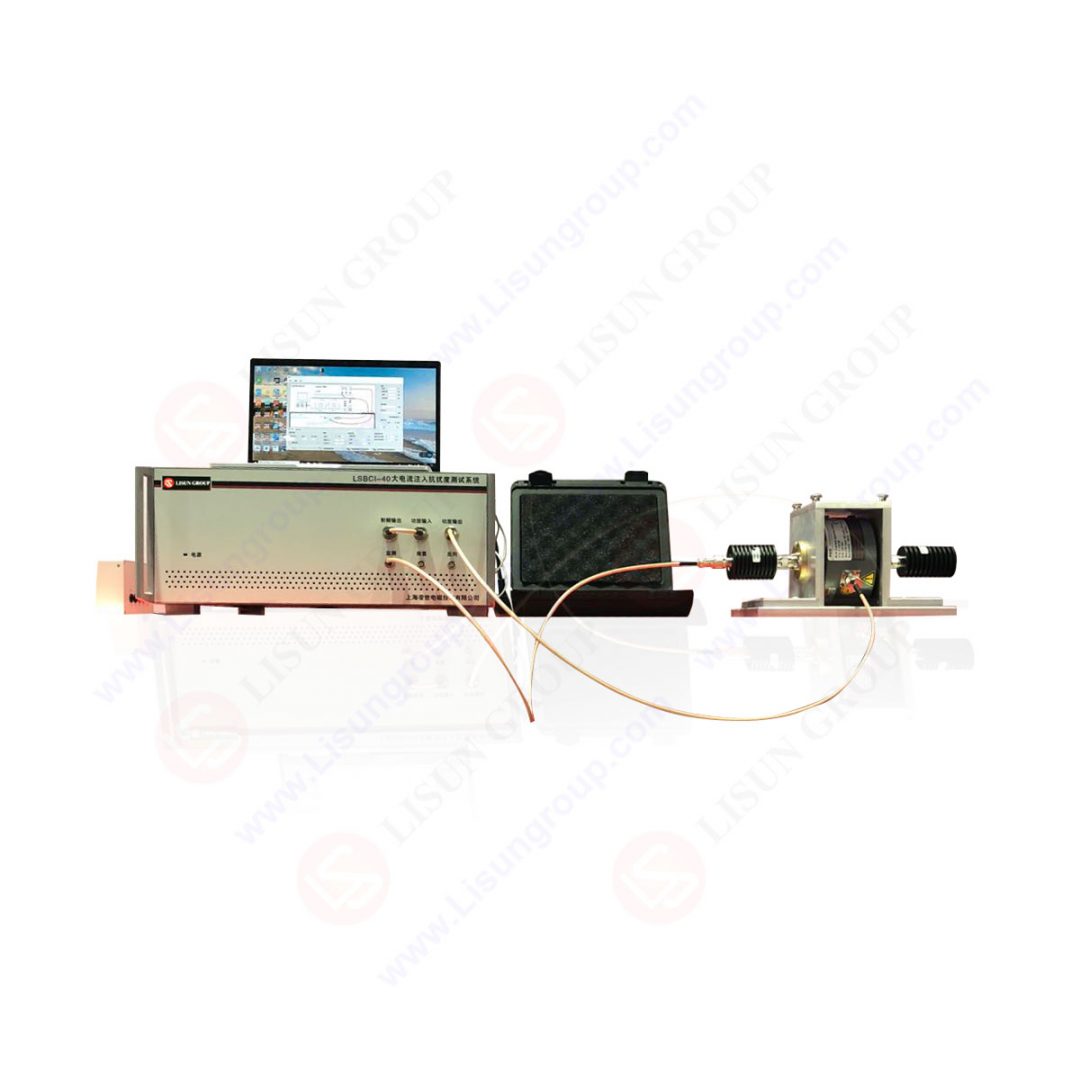

LISUN LSBCI-40 Bulk Current Injection (BCI) Test System

Overview

Bulk current injection (BCI) tests how automotive components cope with RF energy picked up by their wiring harness. A current probe clamped around the harness injects RF current from 100kHz to 400MHz, as set out in ISO 11452-4, SAE J1113-4 and GB/T 33014.4.

The LSBCI-40 puts a signal generator, three-channel power meter, RF power amplifier and dual directional coupler into one 4U, 19-inch unit. It supports CW, AM and pulse modulation, average and pulse detection for civilian and military pulse tests, a library of standard tests, and one-click calibration of every frequency point in under a minute. The LSBCI-40-100W runs the substitution method (ISO 11452-4 Figure 1); the LSBCI-40-120W runs both the substitution and closed-loop methods (Figures 1 and 2).

For 400MHz to 3GHz using the tubular wave coupler (TWC) method, LISUN offers the LIS-TWC-3G50W.

Key Specifications

SpecificationLSBCI-40-100WLSBCI-40-120W
Test methodsSubstitution (ISO 11452-4 Fig. 1)Substitution and closed-loop (Figs. 1 and 2)
Signal generator
Frequency range / resolution9kHz~400MHz / 1Hz
Stability±0.5ppm
Harmonics / non-harmonics≤-30dBc / ≤-50dBc
Output power-100~3dBm
ModulationAM 1Hz~10kHz, 1~99% depth; pulse 1Hz~10kHz, 1~99% duty
Three-channel power meter
Frequency range9kHz~400MHz
Input range / accuracy-85~+10dBm / ±0.5dB
SamplingAverage, integration, pulse
RF power amplifier and coupler
Amplifier100kHz~400MHz, gain 50~54dB
Output power100W120W
Dual directional coupler100kHz~400MHz, 50dB, 300W max
General
IncludedAttenuator DC~3GHz, 50Ω high-voltage load
InterfacesLAN, USB, RS485
Control10.1-inch Android touch screen (English/Chinese), PC software
Supply / sizeAC 100~250V, 50/60Hz / 4U 19-inch
Required accessories
LIS-AN50AArtificial network (5μH+1Ω)∥50Ω, 100kHz~108MHz, DC 400V/AC 380V, 50A (100A and 200A versions available)
LIS-BCP410BCI injection probe, 10kHz~400MHz, N-type
LIS-CCF600BCI probe calibration fixture

Features

Applications

Frequently asked questions

Substitution or closed-loop?

The substitution method uses a calibrated forward power level. The closed-loop method also monitors the induced current with a second probe and limits it, which some OEM specifications require. The 120W model supports both.

What else do I need?

An artificial network (LIS-AN50A), a BCI injection probe (LIS-BCP410) and its calibration fixture (LIS-CCF600) are required.
