Dust and Sand Ingress Testing to IEC 60529 IP Code Methods

Dust and sand ingress testing verifies that an enclosure keeps fine particulates out of internal components — a distinct failure mode from water ingress, since dust behaves differently to liquid and can accumulate on moving parts, contacts and vents over time in ways a splash or spray test won't reveal. It's a standard part of IP rating verification (the first digit of an IP rating) for equipment intended for outdoor, industrial, or desert environments.

Sonacme's settling dust chamber range spans three volumes — 500L, 1000L, and 2000L — and offers two dust delivery methods: free-fall (centrifuge-blown dust settling naturally onto the test article) and bottom air-blast with three adjustable pressure grades. The chambers comply with IEC 60529:1989+A1:1999+A2:2013, GB 4208-2008 and GB 7000.1.

Sand & Dust Test Chambers
Inquire About This Range →

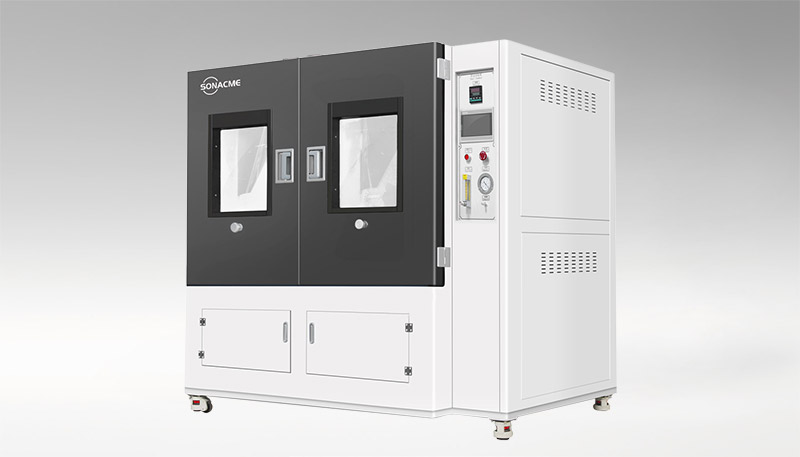

Sonacme sand and dust test chamber

Sand & Dust Test Chambers (SSD Series)

Combined free-fall and air-blast dust ingress testing to IEC 60529 IP-code methods, three capacities from 500L to 2000L.
Enquire About This Series →

Technical Specifications

Test modesFree-fall dust (centrifuge-circulated settling dust) and bottom air-blast dust, three adjustable pressure grades
Fitted accessoriesDust-drying device, vibrator, sample holder, observation window
Standards referencedIEC 60529:1989+A1:1999+A2:2013 (IP code ingress protection), GB 4208, GB 7000.1

Which model do I need?

All three chambers run the same free-fall and air-blast dust tests, so choose by test space. The SSD/2000 has the same footprint as the SSD/1000 but twice the height (2000mm inside, 2900mm outside), for tall products. Click a model for its full specifications.

ModelVolumeTest space W×H×D (mm)External size W×H×D (mm)
SSD/500500L800×800×8001450×1700×1000
SSD/10001000L1000×1000×10001650×1900×1200
SSD/20002000L1000×2000×10001650×2900×1200

Model specifications

500L

SSD/500 Chamber

Volume500L
Test space (W×H×D)800×800×800mm
External size (W×H×D)1450×1700×1000mm
Test modesFree-fall settling dust and bottom air-blast dust (three pressure grades)
Other specificationsAs listed under Technical Specifications above
Enquire about SSD/500 →
1000L

SSD/1000 Chamber

Volume1000L
Test space (W×H×D)1000×1000×1000mm
External size (W×H×D)1650×1900×1200mm
Test modesFree-fall settling dust and bottom air-blast dust (three pressure grades)
Other specificationsAs listed under Technical Specifications above
Enquire about SSD/1000 →
2000L

SSD/2000 Chamber

Volume2000L
Test space (W×H×D)1000×2000×1000mm
External size (W×H×D)1650×2900×1200mm
Test modesFree-fall settling dust and bottom air-blast dust (three pressure grades)
Other specificationsAs listed under Technical Specifications above
Enquire about SSD/2000 →
Frequently Asked Questions
What's the difference between the free-fall and air-blast dust modes?
Free-fall (settling) dust testing circulates fine dust by centrifuge so it settles naturally over the test article, simulating long-term exposure to airborne dust. Bottom air-blast testing drives dust at the enclosure with adjustable pressure, simulating wind-blown sand and dust ingress.
What IP ratings can be verified with this chamber?
The SSD series is built to IEC 60529 (with the 1999 and 2013 amendments), GB 4208 and GB 7000.1, for verifying the dust-protection (first digit) part of an IP rating.
What sizes are available?
Three capacities — 500L, 1000L and 2000L — sharing the same test modes and standards, sized to the test article.
