AGREE Combined Environmental & Vibration Chambers

Simultaneous Temperature, Humidity and Vibration Testing in One Chamber

Real-world failures often happen from combined stresses rather than a single variable — vibration loosening a connector already weakened by thermal cycling, for example — which is why combined-environment testing exists alongside single-variable chambers. An AGREE chamber simulates combined temperature, humidity and vibration on a test article at the same time, running temperature/humidity changes together with random vibration to reveal product limits and defects.

Sonacme positions the range for aviation, aerospace, military, automotive and electronics testing, including condensation and damp-freeze tests for outdoor electronics and automotive parts. Vibration control supports linear, logarithmic and dual-frequency sweeps. The inner chamber is fully welded 304 stainless steel with a heated observation window that prevents frosting at low temperature. Four chamber volumes — 500L, 1000L, 1700L and 3400L — are sized to the test article, from small assemblies to full sub-systems.

AGREE Combined Environmental & Vibration Chambers
Inquire About This Range →

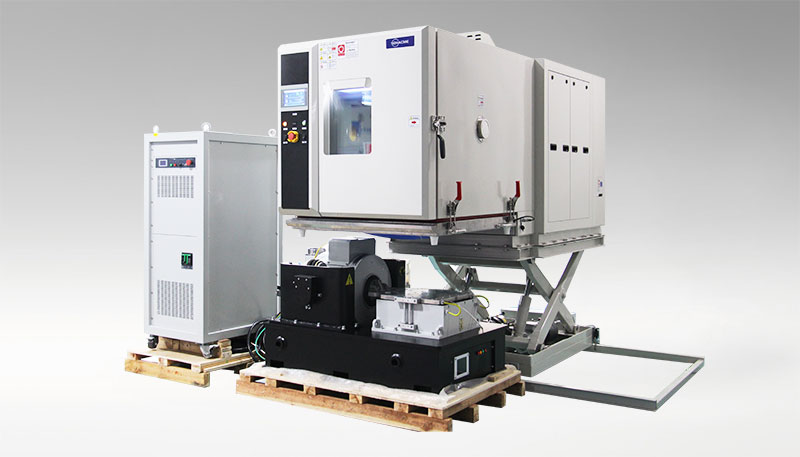

Sonacme AGREE combined vibration and climatic test chamber

AGREE Combined Environmental & Vibration Chambers

Simultaneous temperature, humidity and vibration excitation in a single chamber, four volumes from 500L to 3400L.
Enquire About This Series →

Technical Specifications

Temperature range-70°C to +100°C (+150°C/+180°C option)
Humidity range20-95%RH
Temperature / humidity fluctuation±0.5°C / ±2.0%RH
Temperature uniformity1.5°C
Temperature change rateHeating 3.0°C/min, cooling 2.0°C/min
Vibration control modesLinear, logarithmic and dual-frequency sweep; random vibration with temperature/humidity change
Standards referencedIEC 60068-2-30, IEC 60068-2-38, GJB 150-09, JPCA-ET05/ET06, GB 2423.4, GB 2423.34, JIS 5016-9.4, MIL-STD-202-106, AEC-Q200
Power supply380V AC, 50/60Hz

Which model do I need?

Climate performance is the same across the range, so choose by test space: the product plus its vibration fixture must fit inside. Sonacme doesn’t publish external sizes for this series, so ask us for the footprint with your shaker. Click a model for its full specifications.

ModelVolumeTest space W×H×D (mm)
SA/500/70(H)500L800×800×800
SA/1000/70(H)1000L1000×1000×1000
SA/1700/70(H)1700L1200×1200×1200
SA/3400/70(H)3400L1500×1500×1500

Model specifications

500L

SA/500/70(H) Chamber

Volume500L
Test space (W×H×D)800×800×800mm
Temperature range−70 to +100°C (+150/+180°C option), 20–95%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SA/500/70(H) →
1000L

SA/1000/70(H) Chamber

Volume1000L
Test space (W×H×D)1000×1000×1000mm
Temperature range−70 to +100°C (+150/+180°C option), 20–95%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SA/1000/70(H) →
1700L

SA/1700/70(H) Chamber

Volume1700L
Test space (W×H×D)1200×1200×1200mm
Temperature range−70 to +100°C (+150/+180°C option), 20–95%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SA/1700/70(H) →
3400L

SA/3400/70(H) Chamber

Volume3400L
Test space (W×H×D)1500×1500×1500mm
Temperature range−70 to +100°C (+150/+180°C option), 20–95%RH
Other specificationsAs listed under Technical Specifications above
Enquire about SA/3400/70(H) →
Frequently Asked Questions
What does 'AGREE' testing mean?
AGREE (Advisory Group on Reliability of Electronic Equipment) combined-environment testing runs temperature cycling, humidity and vibration simultaneously rather than sequentially, uncovering failure modes that only appear when environmental stresses interact — closer to real in-service conditions than single-stress testing.
What vibration profiles can this chamber run?
Linear, logarithmic and dual-frequency sweep control, plus random vibration, run concurrently with the chamber's temperature and humidity cycling.
What standards does this chamber support?
IEC 60068-2-30, IEC 60068-2-38, GJB 150-09, JPCA-ET05, JPCA-ET06, GB 2423.4, GB 2423.34, JIS 5016-9.4, MIL-STD-202-106 and AEC-Q200, including the condensation and damp-freeze tests used for outdoor electronics and automotive parts.
