LISUN ZY-3 Needle Flame Tester (IEC 60695-11-5)

Overview

A fault inside equipment, such as a short circuit or an overheated component, can produce a small flame. The needle flame test (IEC 60695-11-5) simulates this with a small butane flame applied to a part, then measures whether it ignites, how long it burns and whether flaming drops ignite the layer below.

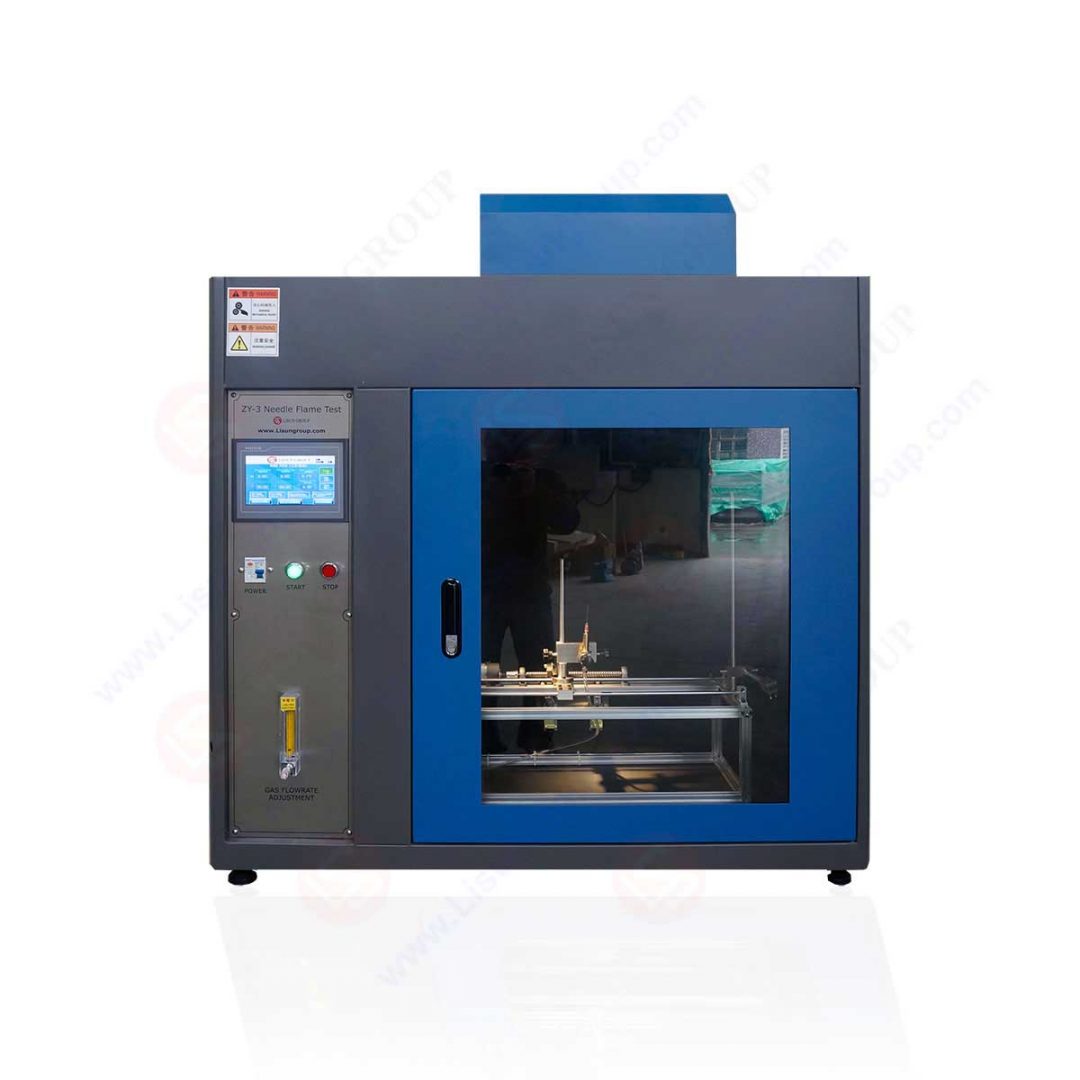

The ZY-3 uses a standard needle burner fed with 95% butane, set to a 12 ±1mm flame and held at 45° during testing, upright for calibration. A K-type thermocouple confirms the flame by its rise from 100°C to 700°C in 23.5 ±1s. Application time is set from 0 to 999.9s (30s is typical), and burn time is recorded automatically with manual pause. A touch screen and remote operation simplify testing. The ZY-3 has a cabinet; the ZY-3S is the open version.

Key Specifications

SpecificationZY-3ZY-3S
ConstructionWith cabinetWithout cabinet
Burner angle45° for testing, vertical for calibration
Application time0~999.9s ±0.1s (30s typical)
Burn time recorder0~999.9s ±0.1s, automatic with manual pause
Flame height12 ±1mm
GasButane ≥95% (electronic flow meter optional)
Flame confirmation100 ±2°C to 700 ±3°C in 23.5 ±1s
ThermocoupleØ0.5mm type K
Temperature range0~1000°C
Applications per testSingle or multiple

Features

Applications

Frequently asked questions

How is the flame confirmed?

A copper block with a K-type thermocouple must rise from 100°C to 700°C in 23.5 ±1s, as IEC 60695-11-5 specifies.
