ZRS-3H Glow Wire Tester (IEC 60695-2-10 to 2-13) – LISUN

ZRS-3H / ZRS-3HS

LISUN ZRS-3H glow wire tester to IEC 60695-2-10 to 2-13: up to 1100°C, 0.95N contact force, automatic timing and sample release for GWEPT, GWFI, GWIT.

Electrical Safety Test Equipment
Glow Wire Test
Floor-standing Cabinet
IEC 60695-2-10:2021; IEC 60695-2-11:2021; IEC 60695-2-12:2021; IEC 60695-2-13:2021; UL 746A:2023 Clause 35; GB/T 5169.10-2023; GB/T 5169.11-2017; GB/T 5169.12-2024; GB/T 5169.13-2024
Enquire About This Product
LISUN ZRS-3H Glow Wire Tester (IEC 60695-2-10 to 2-13)

Overview

The glow wire test simulates an overheated component or connection touching a plastic part. A heated nichrome loop is pressed against the sample, and the test checks whether it ignites and how quickly any flames go out. Appliance, lighting and electrical standards call for it at temperatures up to 960°C.

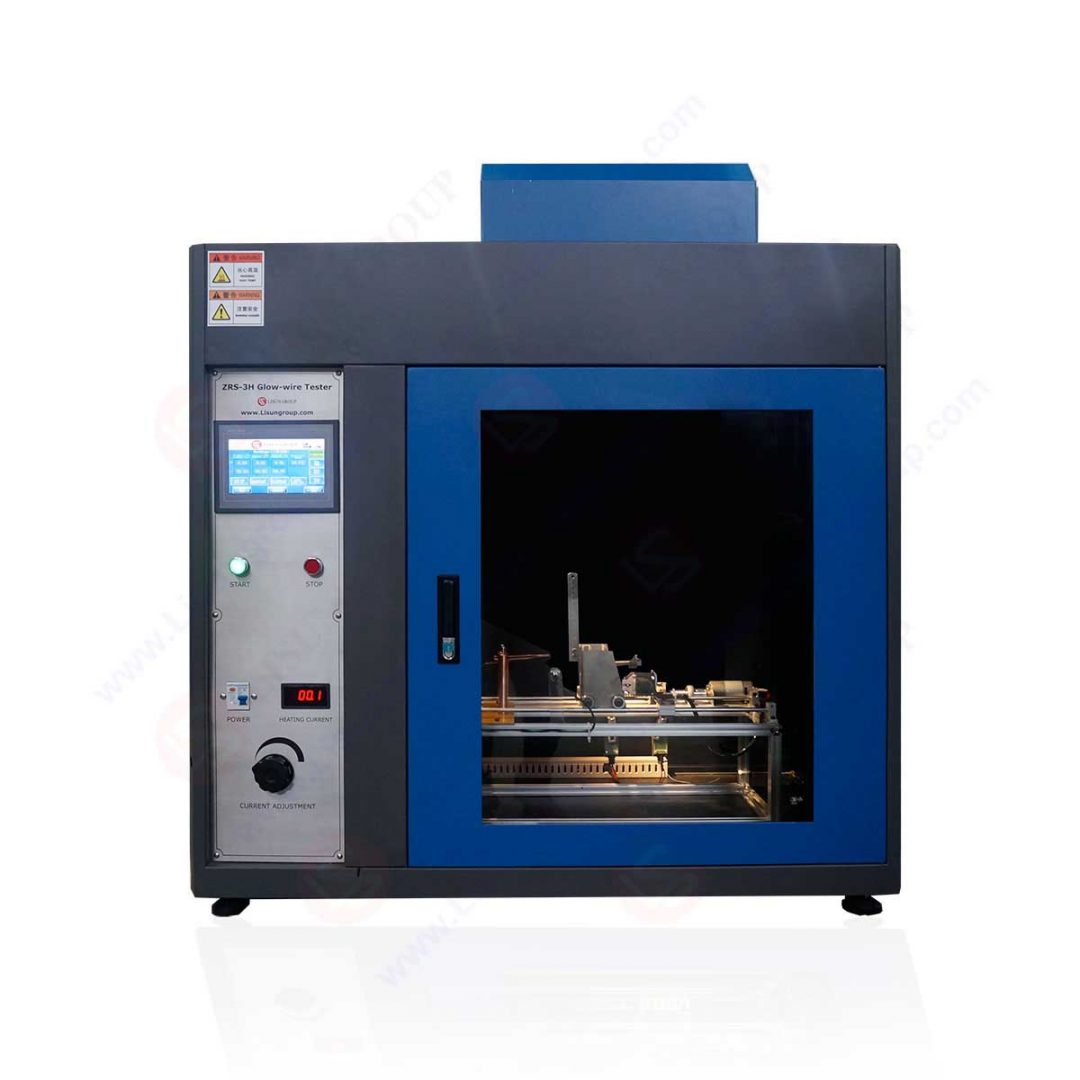

The ZRS-3H heats the glow wire from room temperature to 1100°C with ±3°C measurement accuracy, presses it against the sample with 0.95 ±0.1N to a limited depth of 7mm, and automatically times the contact, records ignition and extinction times, and withdraws the wire after the set time, as GB/T 4706.1-2024 requires. It covers end-product testing (GWEPT), material flammability index (GWFI) and ignition temperature (GWIT). The ZRS-3H has a cabinet; the ZRS-3HS is the open version.

Key Specifications

SpecificationZRS-3HZRS-3HS
ConstructionWith cabinetWithout cabinet
TemperatureRoom temperature to 1100°C; ±3°C accuracy
Glow time0.1~999.9s, ±0.1s
Ignition / extinction timing0.1~999.9s, automatic with manual pause
Contact force0.95 ±0.1N, 7mm depth limit
Glow wireØ4mm, 80/20 nickel-chromium
ThermocoupleØ1mm sheathed type K
Sample releaseAutomatic after the set glow time

Features

Applications

Frequently asked questions

What temperature is used?

The product standard sets it, commonly 550°C to 960°C. The ZRS-3H reaches 1100°C.

What is the difference between GWFI and GWIT?

GWFI is the highest temperature at which a material passes without sustained burning; GWIT is the temperature 25K above the highest at which it does not ignite. Both use the same apparatus.
