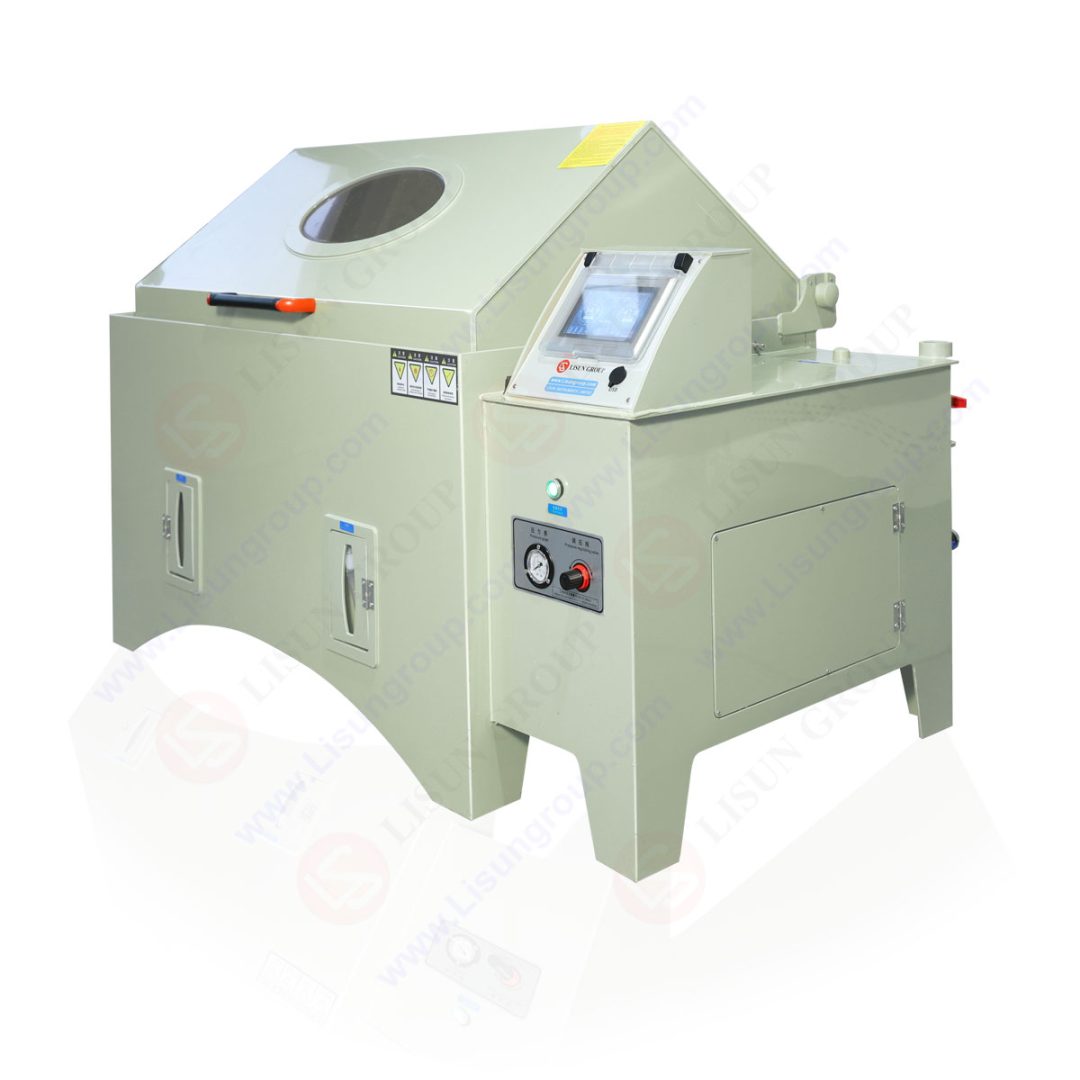

LISUN YWX/Q Series Salt Spray Test Chamber

Overview

The LISUN YWX/Q series reproduces marine and industrial salt-laden atmospheres to speed up corrosion of metal coatings, paints, electronic components and complete products. It runs the three main salt spray methods: neutral salt spray (NSS), acetic acid salt spray (AASS) and copper-accelerated acetic acid salt spray (CASS), to ASTM B117, ASTM B368, ISO 9227, IEC 60068-2-11 and related standards.

The cabinet is moulded in one piece from imported corrosion-resistant PP, with no welded seams to leak. Compressed air is heated and humidified in a saturator tower before it reaches the nozzle, which reduces salt crystallisation at the nozzle. Spraying can be continuous, intermittent or programmed, and the test timer runs to 9999 hours. Alarms cover low water level, low air pressure and over-temperature (with both mechanical and electronic protection).

Six sizes run from the 108-litre YWX/Q-150 for laboratory samples to the 1200-litre YWX/Q-020 for large products and batches. Larger models have air-spring or cylinder-assisted lids. Each chamber comes with V-groove and round-rod sample racks that hold samples at 20 ±5°, two 500g bottles of sodium chloride, a 5L container and a spare nozzle. The user supplies compressed air (0.4MPa or more), or LISUN can supply a matching compressor.

Key Specifications

ModelYWX/Q-150YWX/Q-250YWX/Q-750YWX/Q-010YWX/Q-016YWX/Q-020
Capacity108L270L412L480L960L1200L
Working space (mm)600 × 450 × 400900 × 600 × 5001100 × 750 × 5001200 × 800 × 5001600 × 1000 × 6002000 × 1000 × 600
External size (mm)1100 × 670 × 10501410 × 900 × 10501600 × 1050 × 12001700 × 1150 × 12002300 × 1250 × 14502800 × 1350 × 1450
Sample space (mm)500 × 300 × 250800 × 450 × 250900 × 600 × 3001000 × 600 × 3001400 × 800 × 3501800 × 800 × 350
Salt solution tank15L25L30L32L40L45L
Power220V, 1.5kW220V, 2.0kW220V, 2.5kW220V, 2.5kW380V 3-phase, 5.0kW380V 3-phase, 6.0kW
LidManualManualManualAir springCylinderCylinder
Chamber temperatureRoom temperature to 55°C
Saturator temperatureRoom temperature to 70°C
Temperature uniformity / fluctuation≤2°C / ≤±0.5°C
Salt fog deposition1–2ml per 80cm² per hour (16-hour average)
Spray pressure0.07–0.17MPa, adjustable

Features

Applications

Frequently asked questions

What is the difference between NSS, AASS and CASS?

NSS uses neutral salt solution and is the most common. AASS adds acetic acid, and CASS adds acetic acid and copper chloride, to speed up testing of decorative and protective coatings such as nickel-chrome.

Is an air compressor needed?

Yes. The chamber needs compressed air at 0.4MPa or more. LISUN can supply a matching compressor.
