UV-263 Series UV Accelerated Weathering Chamber – LISUN

UV-263LV / UV-263LS / UV-263LT

LISUN UV-263 fluorescent UV weathering chambers to ISO 4892-3, ASTM G154 and SAE J2020: UVA-340 lamps, 0.35–1.2W/m², condensation and water spray.

Environmental Test Equipment
UV Aging Chamber
Floor-Standing / Bench-top Chamber
ISO 4892-3:2013; ISO 11507; ASTM G154; ASTM G151; ASTM G53; ASTM D4329; ASTM D3794; SAE J2020; JIS D0205; AATCC TM186; DIN 53384
Enquire About This Product

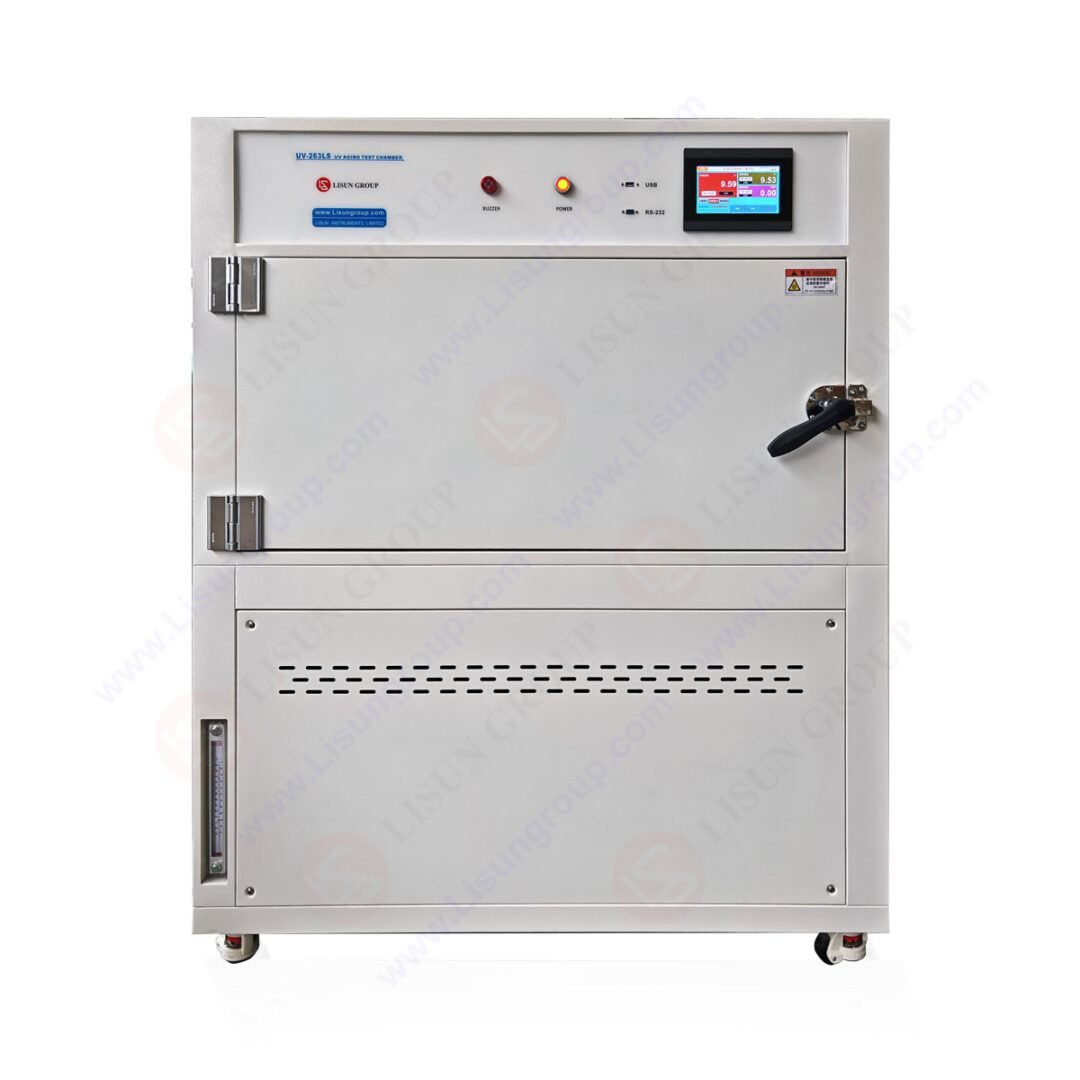

LISUN UV-263 Series UV Accelerated Weathering Chamber

Overview

The LISUN UV-263 series are fluorescent UV weathering chambers. UV lamps reproduce the damaging short-wave ultraviolet in sunlight, and condensation and water spray reproduce dew and rain. Running the samples through cycles of UV, heat, condensation and darkness reproduces in days or weeks the fading, chalking and cracking that take months or years outdoors.

They are used for coatings, resins, plastics and rubber in the automotive, electronics and other industries, to screen new materials, optimise formulations and compare weathering performance.

Three versions

The LV and LS use eight 1200mm, 40W ATLAS lamps; the LT uses three 20W lamps. UVA-340 lamps (315–400nm, peak 340nm) are standard, matching sunlight in the short-wave UV; UVB-313 and UVA-351 lamps are available as options. An integrated irradiance meter controls the irradiance, and the LCD controller programs UV, heat, humidity, spray, condensation and dark periods.

Key Specifications

ModelUV-263LVUV-263LSUV-263LT
ChamberTrapezoidalSquareBench-top
Inner size (W × D × H)450 × 1140 × 500mm550 × 1140 × 450mm500 × 400 × 400mm
Outer size (W × D × H)600 × 1325 × 1500mm650 × 1300 × 1750mm960 × 460 × 630mm
Lamps8 × 40W, 1200mm (ATLAS)8 × 40W, 1200mm (ATLAS)3 × 20W
Irradiance0.35–1.2W/m², adjustable0.35–1.2W/m², adjustable0.35–1.0W/m², adjustable
Sample to lamp distance70mm70–300mm adjustable50mm
Samples48 × 70 × 150mmIrregular samples18 × 70 × 150mm
Temperature rangeRT+10 to 70°C
Black panel temperature50–70°C
Temperature fluctuation / uniformity≤±1°C / ≤±2°C
Humidity≥75%RH
Chamber materialSUS304 stainless steel
Test time0–9999h/min/s
WaterClean or distilled, 8–10 L/day
PowerSingle phase 220–240V, 50/60Hz, 5kVA max

Features

Applications

Frequently asked questions

UV or xenon?

Fluorescent UV is a cost-effective way to compare durability against short-wave UV and moisture. Xenon arc reproduces the full sunlight spectrum and is better for colour and appearance testing.

What water is needed?

Clean or distilled water, about 8 to 10 litres a day, supplied by the user.
