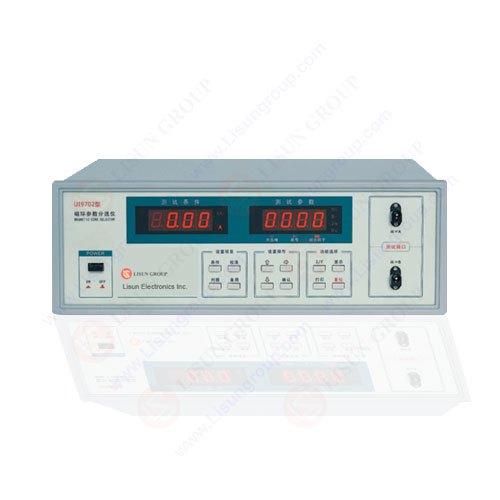

LISUN UI9702 Magnetic Core Selector

Overview

The magnetic cores in electronic ballasts and switching supplies vary from batch to batch, which changes how the finished circuit behaves. The UI9702 sorts cores by measuring a combined relative factor of permeability (μm), saturation flux density (Bs), remanence (Br) and coercivity (Hc).

Cores are tested directly without winding them, at a drive current of 0–2A and frequency of 20–50kHz, both continuously adjustable to match the real operating conditions of an electronic ballast. Selection is automatic, with freely set limits and out-of-limit alarms, and the B-H curve can be printed. It needs no daily adjustment and has a clear digital display.

Key Specifications

ItemSpecification
MeasuredRelative μm, Bs, Br, Hc combined factor
Drive current0~2A, continuously adjustable
Test frequency20~50kHz, continuously adjustable
ConnectionDirect test, no winding needed
SortingAutomatic, user limits, out-of-limit alarm
OutputDigital display, B-H curve printing

Features

Applications

Frequently asked questions

Does it give absolute values?

It gives a relative combined factor for sorting. For absolute B-H measurements, see LISUN's UI9730 magnetic material analyzer.

Do I need to wind each core?

No. Cores are tested directly.
