TMP-8 and TMP-16 Multiplex Temperature Testers – LISUN

TMP-8 / TMP-16

LISUN TMP-8 and TMP-16 multiplex temperature testers: 8 or 16 K-type thermocouple channels, -40 to 300°C, 0.5% accuracy, PC temperature rise curves.

Lighting & Photometric Test Instruments
Temperature Test
Bench-top Instrument
Temperature rise tests in IEC safety standards (luminaires, plugs and sockets, appliances)
Enquire About This Product

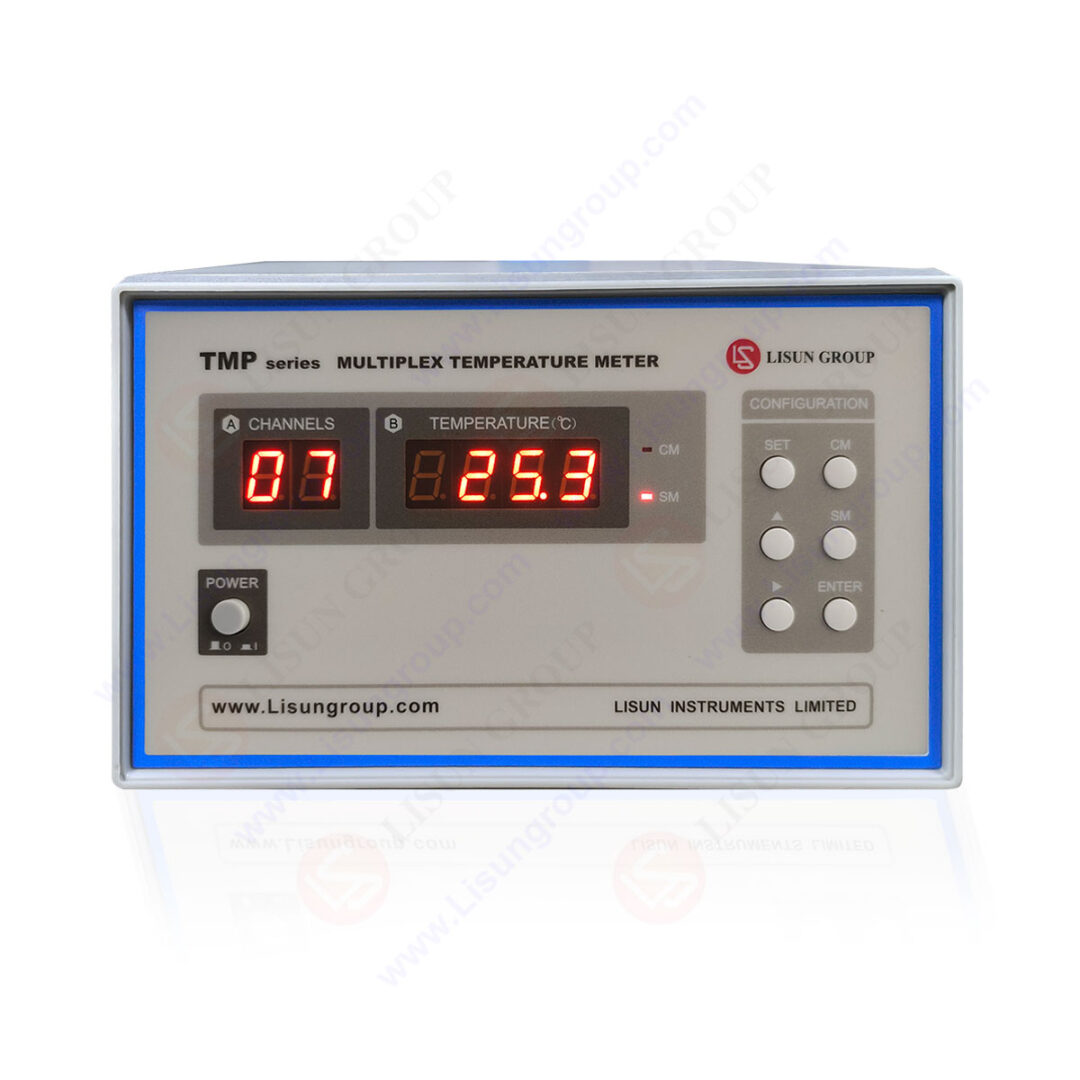

LISUN TMP-8 and TMP-16 Multiplex Temperature Testers

Overview

The TMP-8 and TMP-16 record temperatures at several points at once during safety temperature rise tests on plugs, sockets, luminaires, power tools, connectors and other products. They take K-type thermocouples, cover -40°C to 300°C with 0.5% accuracy, and show the channel number and live temperature on two digital displays.

You can scan channels in turn or monitor one point, print locally or connect to a PC. The English and Chinese software logs temperature against time, draws temperature rise curves, and exports and prints the data for certification records. They are used with LISUN's TMP-L lamp cap test chamber, LEDLM lumen maintenance systems and constant temperature integrating spheres.

Key Specifications

SpecificationTMP-8TMP-16
Channels816
SensorK-type thermocouple
Temperature range-40°C~300°C
Accuracy0.5%
DisplayDual digital displays for channel and temperature
Operating modesCyclic scan, single-point monitoring, local printing, PC communication
Channel scanCustom scan order
PC softwareEnglish and Chinese; Windows 7/8/10/11

Features

Applications

Frequently asked questions

Which thermocouples does it use?

K-type thermocouples.

TMP-8 or TMP-16?

Same specification; the TMP-16 has 16 channels instead of 8.
