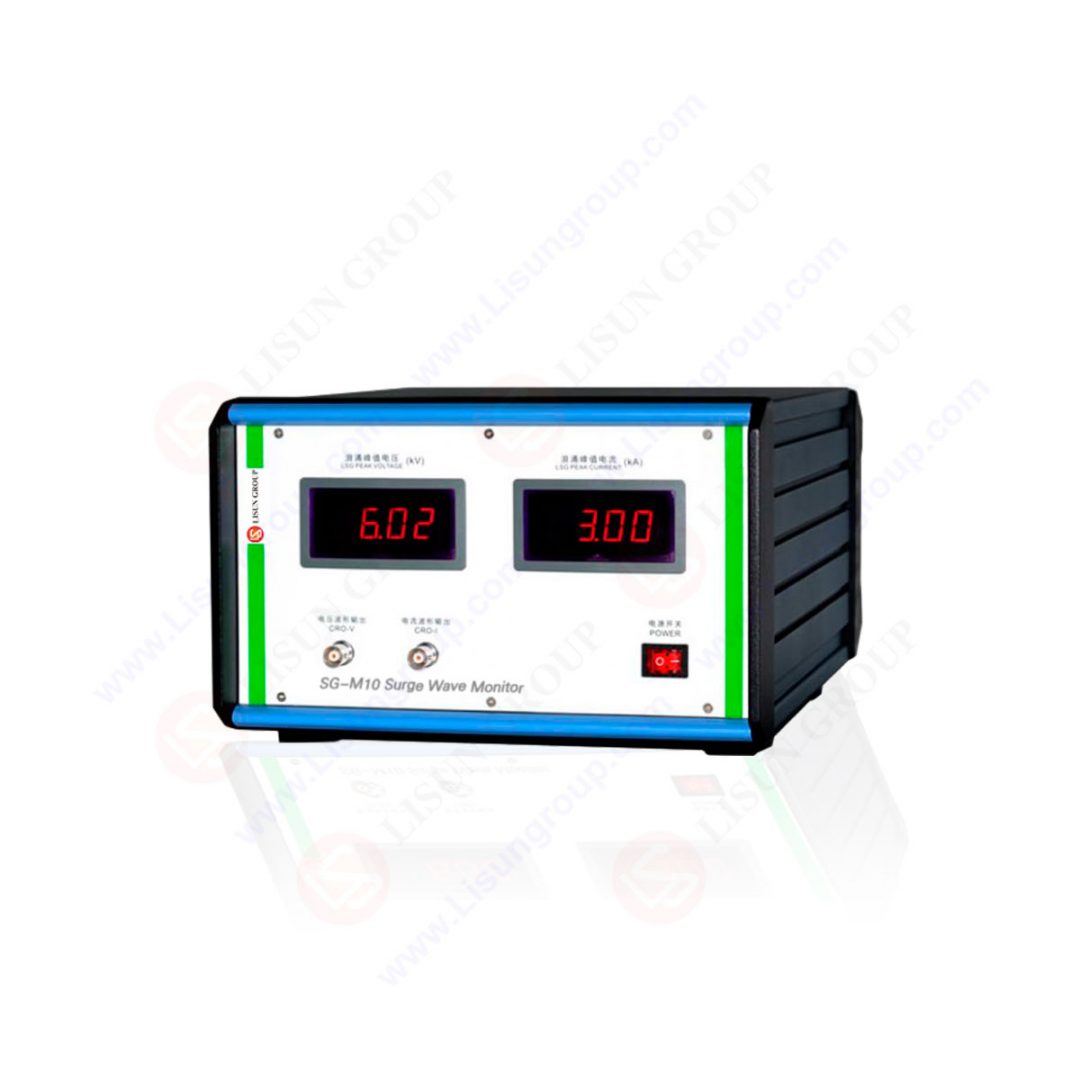

LISUN SG-M10 surge monitor with built-in V and I probes: shows surge peak voltage to ±10kV and current to ±5kA, with BNC outputs for an oscilloscope.

EMC & EMI Test Equipment
EMS Test System
Bench-top Instrument
IEC 61000-4-5; EN 61000-4-5; GB/T 17626.5
Enquire About This Product
LISUN SG-M10 Surge Monitor for Surge Generators

Overview

Seeing the surge waveform during a test makes it much easier to tell whether a product failed and why. The SG-M10 has built-in surge voltage and current probes and shows the peak voltage and peak current of each surge on its LCD.

Connected to a LISUN OSP1102 digital oscilloscope through its BNC outputs, it lets you watch the 1.2/50μs and 8/20μs waveforms from LISUN SG61000-5SA/SB and SG61000-5NA/NB surge generators in real time, and see the breakdown voltage and current when the EUT fails. It is optimised for the surge waveforms of IEC 61000-4-5 and GB/T 17626.5.

Key Specifications

ItemSpecification
Max peak voltage±10kV ±10%
Max peak current±5kA ±10%
Voltage attenuation1000:1
Current attenuation1000:1
DisplayPeak voltage and current on LCD
Monitor outputsBNC, ≥1MΩ
SupplyAC 220V ±10%, 50/60Hz (110V available)

Features

Applications

Frequently asked questions

Which surge generators does it work with?

LISUN lists the SG61000-5SA/SB and SG61000-5NA/NB surge generators. Most current LISUN SG61000-5 models have waveform measurement built in.

Do I need an oscilloscope?

The LCD shows peak values on its own. To see the full waveform, connect an oscilloscope such as the LISUN OSP1102.
