SQ Series Sulphur Dioxide Corrosion Test Chamber – LISUN

SQ-150 / SQ-250 / SQ-750 / SQ-010 / SQ-016 / SQ-020

LISUN SQ sulphur dioxide test chambers to IEC 60068-2-42, ISO 6988, DIN 50018 and ASTM G87: 25pphm or 0.1–1% SO2, RT+5 to 50°C, six sizes.

Environmental Test Equipment
Sulfur Dioxide Test Chamber
Floor-Standing Chamber
IEC 60068-2-42:2013; IEC 60068-2-43:2013; ISO 6988:1985; DIN 50018:2017; ASTM G87-2015; ASTM B845-2020; GB/T 2423.19-2013; GB/T 2423.33-2005; GB/T 9789-2008; GB/T 5938-2017
Enquire About This Product

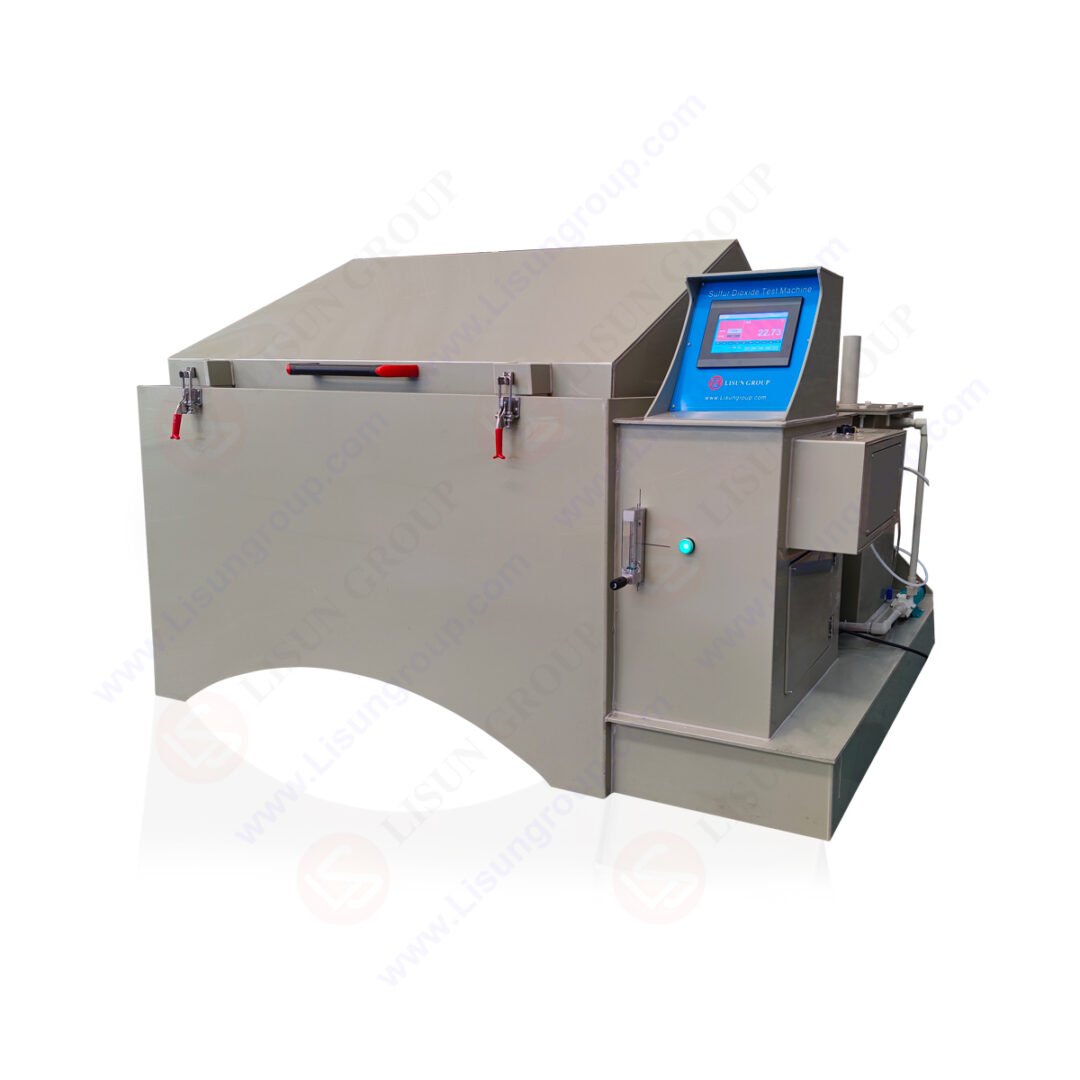

LISUN SQ Series Sulphur Dioxide Corrosion Test Chamber

Overview

The LISUN SQ series simulates the sulphur dioxide found in polluted industrial atmospheres. By holding a controlled SO2 concentration at a set temperature, it speeds up the sulphide corrosion of metals, coatings and platings, contacts and connections and complete products, so protection weaknesses and design flaws show up quickly. It is used to check corrosion resistance of electrical contacts, industrial equipment, building materials and hardware.

Two SO2 ranges cover the different standards: a low concentration of 25pphm, and 0.1% to 1% by volume for higher-concentration methods.

Construction

The working chamber is moulded in one piece from imported corrosion-resistant PP sheet, with no welded seams for gas to leak through or corrode. Heating is by U-shaped titanium alloy heaters, and a gas concentration control system works together with the temperature control. The chamber tops up gas automatically, monitors concentration in real time and times the test. Spraying can be continuous or intermittent.

Key Specifications

Specifications

ModelWorking space (mm)External size (mm)SupplyPower
SQ-150450 × 600 × 400800 × 1070 × 1050AC 220V2.5kW
SQ-250600 × 900 × 500870 × 1400 × 1150AC 220V3kW
SQ-750750 × 1100 × 5001030 × 1680 × 1260AC 220V4kW
SQ-010850 × 1300 × 6001160 × 2000 × 1390AC 380V6kW
SQ-016850 × 1600 × 6001280 × 2320 × 1500AC 380V7.5kW
SQ-020900 × 2000 × 6001220 × 2530 × 1410AC 380V9kW

Performance (all models)

ParameterValue
Temperature rangeRoom temperature +5°C to 50°C
Temperature uniformity≤±2°C
Temperature fluctuation≤±1°C or ±0.5°C (two grades)
SO2 concentration25pphm, or 0.1–1% by volume
Test time0–999h/min/s, continuous or cyclic spray

Standards differ slightly in their requirements. Tell us your standard and we will confirm the right model with LISUN.

Features

Applications

Frequently asked questions

Which concentration do I need?

The standards specify different SO2 concentrations and test cycles. Tell us your standard and we will confirm the right range and model with LISUN.

Which size is the SQ-010?

The SQ-010 has an 850 × 1300 × 600mm working space and runs on 380V.
