LMS-6600TR Transmittance and Reflectance Tester – LISUN

LMS-6600TR / LMS-6600T / LMS-6600R

LISUN LMS-6600TR handheld spectral meter: transmittance, reflectance, colour and light-source parameters from 350–950nm on a 5-inch touch screen.

Material & Optical Analysis
Object Color & Glossiness Test
Handheld Instrument
CIE 177; CIE 13.3
Enquire About This Product

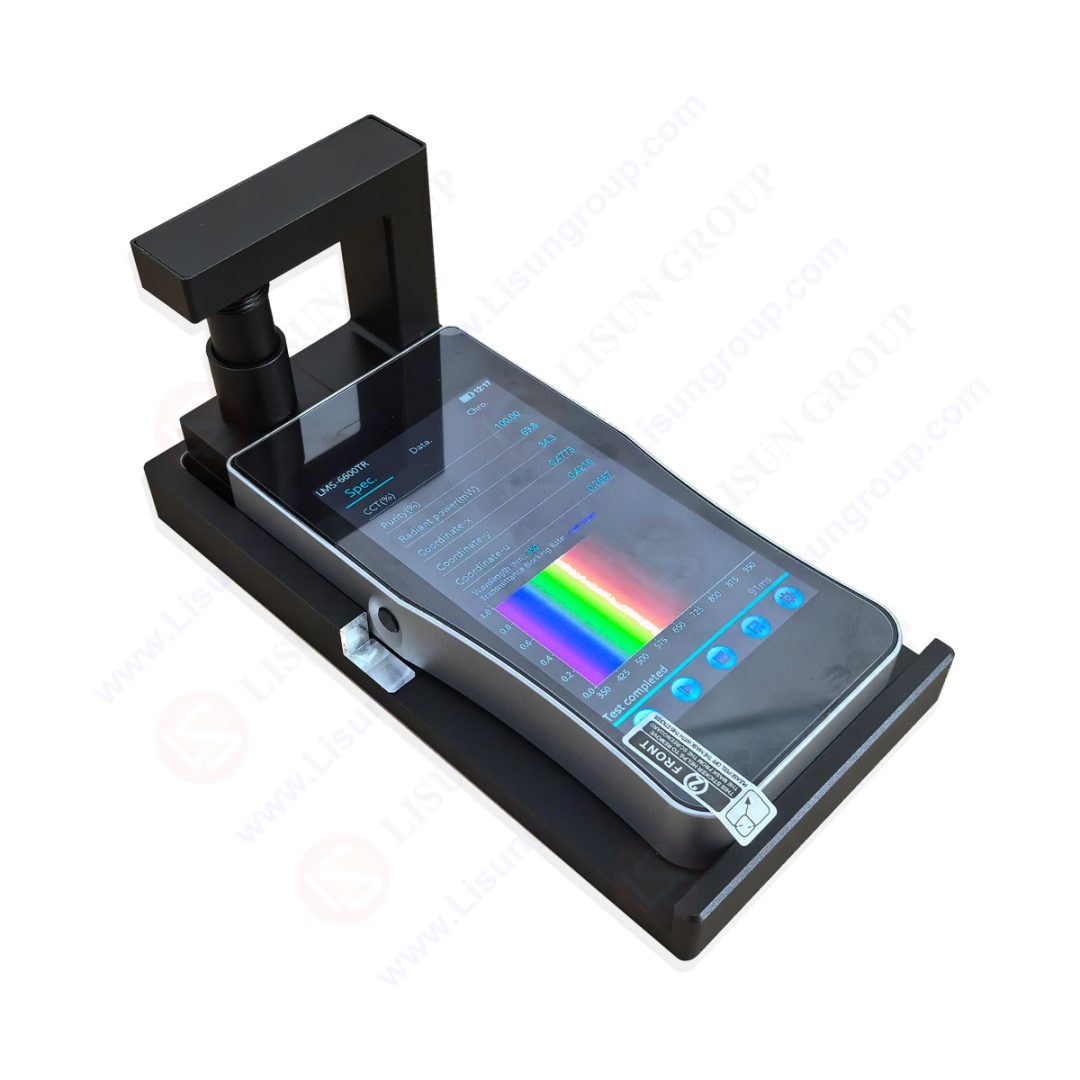

LISUN LMS-6600TR Transmittance and Reflectance Tester

Overview

The LMS-6600TR puts spectral transmittance, reflectance and light-source measurement into one handheld unit measuring 135×80×23mm. It covers 350nm to 950nm, so it reaches into the near-infrared, and shows results and spectral curves in real time on a 5-inch touch screen. It is built for quick checks on materials and lenses: transmittance, absorbance, reflectance and colour values (L*, a*, b*, C*, H*), plus cut-off, peak, dominant and centre wavelengths.

Because it is also a spectral light meter, the same instrument measures illuminance (5 to 200,000 lx), correlated colour temperature (1,000K to 100,000K), chromaticity coordinates and colour rendering index. A 4,000mAh battery runs it for 20 hours, and it connects to a Windows PC over USB.

Model options

Key Specifications

SpecificationLMS-6600TR
Wavelength range350~950nm
MeasurementsTransmittance, reflectance, total transmittance, saturation (C*), L*, a*, b*, absorbance, hue (H*), illuminance (lx), E (fc), Ee (W/m²), CCT, Duv, chromaticity coordinates, CRI, purity, cut-off, peak, dominant, centre and centroid wavelength, half bandwidth, colour difference, brightness difference, CCT difference, SDCM diagram, spectrum diagram
Spectral resolution / reproducibility±0.2nm / ±0.5nm
Chromaticity accuracy (Δx, Δy)±0.005
CCT range1,000K~100,000K (±0.6%)
Illuminance range5~200,000 lx
Display5-inch IPS capacitive touch screen, 480×854
Battery4,000mAh Li-ion, about 20 hours continuous use
Dimensions135×80×23mm
PC connectionUSB; software for Windows 7, 8, 10, 11

LMS-6600T and LMS-6600R share the LMS-6600TR specification without the reflectance or transmittance function respectively.

Features

Applications

Frequently asked questions

Can it measure the transmittance of lenses and filters?

Yes. LISUN designs it to test materials and lenses directly, reporting transmittance, absorbance and cut-off wavelength across 350–950nm.

Does it measure light sources as well as materials?

Yes. It reports illuminance, CCT, Duv, chromaticity coordinates, CRI, peak and dominant wavelength for light sources.
