LISUN SPA series spectrum analyzers from 9kHz to 1.5, 3.6 or 7.5GHz: 10Hz to 3MHz RBW, -140dBm DANL, 20dB preamplifier, for RF and EMI pre-compliance work.
Enquire About This Product
A spectrum analyzer shows the amplitude of a signal against frequency, for measuring the power of known signals and finding unknown ones. It is a basic tool for RF design, production test and EMI troubleshooting.

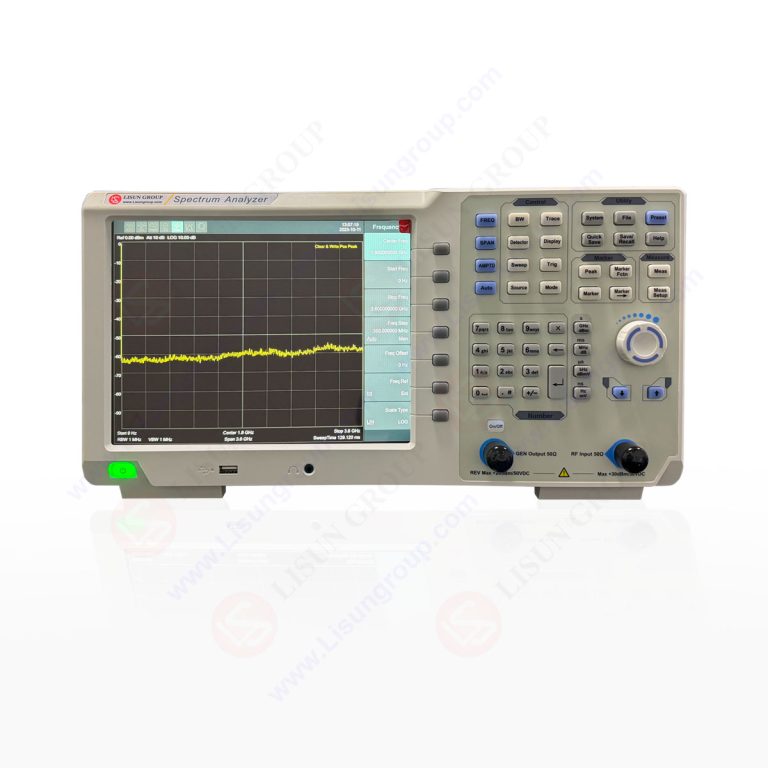

The LISUN SPA series covers 9kHz up to 1.5GHz, 3.6GHz or 7.5GHz. Resolution bandwidth runs from 10Hz to 1MHz and 3MHz, with video bandwidth from 10Hz to 3MHz. The displayed average noise level is about -140dBm with the preamplifier off, and a 20dB preamplifier is built in for weaker signals. Inputs accept up to +30dBm continuous power and 50V DC, with an input attenuator of up to 40 or 50dB.
| Specification | SPA-1P5G | SPA-3P6G | SPA-7P5G |
|---|---|---|---|
| Frequency range | 9kHz~1.5GHz | 9kHz~3.6GHz | 9kHz~7.5GHz |
| Frequency resolution | 1Hz | ||
| Span | 0Hz, 100Hz to maximum | ||
| Reference frequency | 10MHz; aging <1ppm/year | ||
| Temperature stability | <2.5ppm | <1ppm | |
| RBW (-3dB) | 10Hz~500kHz (1-10 sequence), 1MHz, 3MHz | ||
| VBW (-3dB) | 10Hz~3MHz | ||
| Reference level | -80~+30dBm, 0.01dB steps | ||
| Preamplifier | 20dB nominal | ||
| Input attenuator | 0~40dB, 1dB steps | 0~50dB, 1dB steps | |
| Max input | +30dBm continuous; 50V DC | ||
| DANL, 10MHz~1GHz | -140dBm nominal, preamp off (0dB attenuation, 1Hz RBW) | ||
It is suited to pre-compliance and troubleshooting. Full compliance measurements to CISPR 16-1-1 need an EMI test receiver such as the LISUN EMI-9KC.
