SG61000-5 Lightning Surge Generator (IEC 61000-4-5) – LISUN

SG61000-5SB / SG61000-5 / SG61000-5H-SP / SG61000-5H15-SP / SG61000-5H / SG61000-5C

LISUN SG61000-5 combination wave surge generators to IEC/EN 61000-4-5: 1.2/50μs and 8/20μs, up to 15kV/7.5kA, built-in CDN and waveform display.

EMC & EMI Test Equipment
Surge Generator
Bench-top / Floor-standing Instrument
IEC 61000-4-5:2014; EN 61000-4-5:2019; ANSI/IEEE C62.41.1; ANSI/IEEE C62.41.2; ANSI/IEEE C62.45; GB/T 17626.5-2019
Enquire About This Product

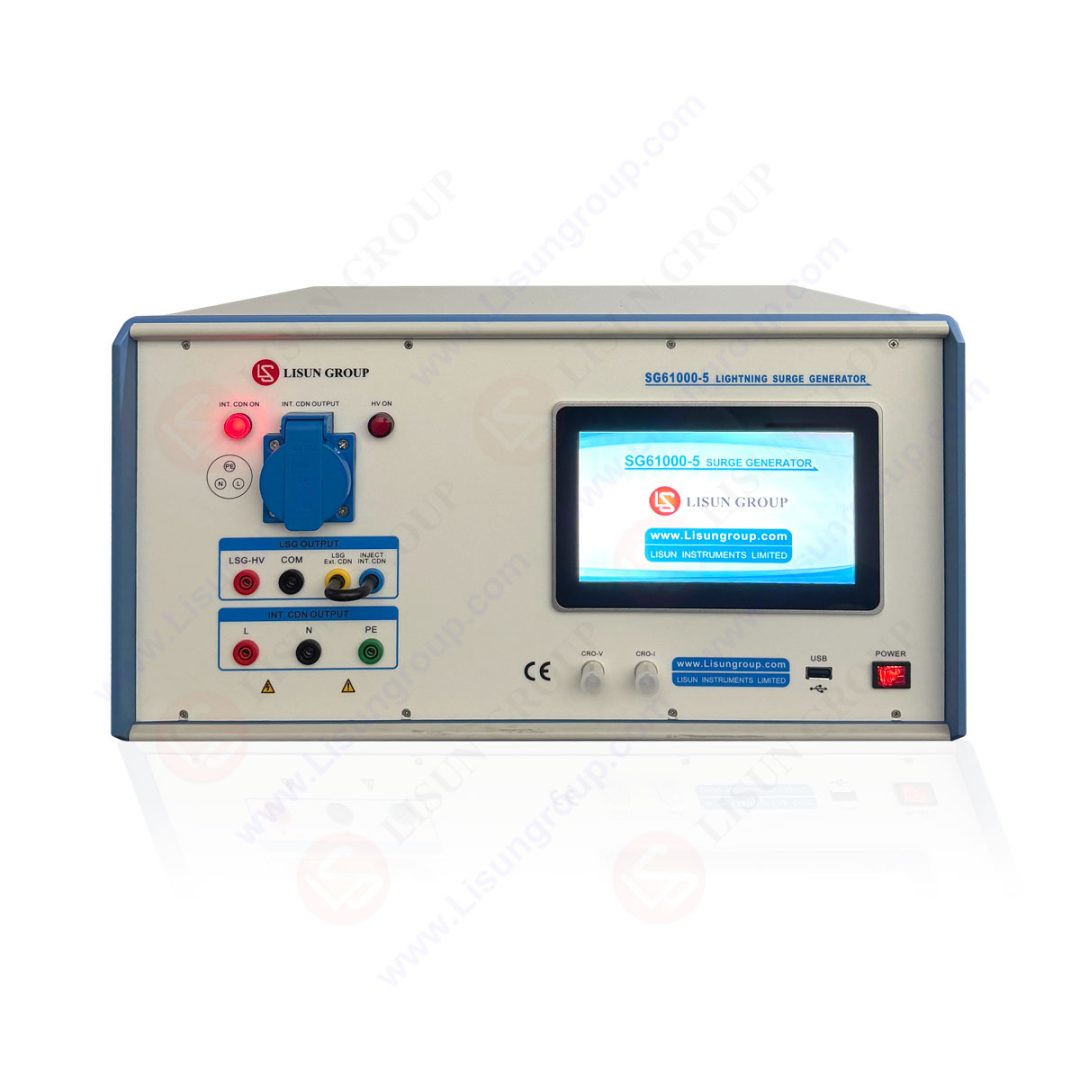

LISUN SG61000-5 Lightning Surge Generator (IEC 61000-4-5)

Overview

A surge generator simulates the high-energy transients caused by lightning and by switching large inductive or capacitive loads, to test how well power and signal ports withstand them. LISUN's SG61000-5 series are fully automatic combination wave generators producing the 1.2/50μs open-circuit voltage and 8/20μs short-circuit current waveforms of IEC 61000-4-5, with the SG61000-5C producing the 10/700μs and 5/320μs telecom waveform.

Most models have built-in voltage and current probes and a digital oscilloscope, so you can see the output waveform on the touch screen without external instruments. Surge polarity, count and phase angle (0–360° synchronised) are programmable, and a single-phase or three-phase CDN is built in. They are used by LED lighting, consumer electronics, renewable energy, telecom and industrial control manufacturers and test labs for EMC certification.

Key Specifications

SpecificationSG61000-5SBSG61000-5SG61000-5H-SPSG61000-5H15-SPSG61000-5HSG61000-5C
Voltage waveform1.2/50μs ±20%10/700μs ±20%
Current waveform8/20μs ±20%5/320μs ±20%
Output impedance2Ω and 12Ω2Ω, 12Ω and 500Ω15Ω and 40Ω
Output voltage0~4.8kV0~6kV0~10kV0~15kV0~10kV0~6kV
Output current0~2.4kA0~3kA0~5kA0~7.5kA0~5kA0~150A
Surge count1~9,999
PolarityPositive, negative, automatic
PhaseAsynchronous or synchronous 0°~360°
Waveform displayNoneBuilt-in V/I probes and oscilloscope, shown on screen
Built-in CDNAC 240V/16A single phaseAC 440V/32A three phase4-line symmetric
Size (W×D×H)44×45×35cm44×45×35cm72×61×175cm72×61×175cm72×61×175cm44×45×155cm
Weightabout 30kgabout 30kgabout 120kgabout 150kgabout 130kgabout 130kg
External CDNCDN61000-5P for power lines; CDN61000-5C for signal lines

Higher-voltage versions are available: single-phase SG61000-5H20-SP (20kV/10kA) and SG61000-5H30-SP (30kV/15kA), and three-phase SG61000-5H15, SG61000-5H20 and SG61000-5H30.

Features

Applications

Frequently asked questions

Which surge generator do I need?

Choose by the highest test level in your product standard. The SG61000-5 covers 6kV/3kA, enough for most household and lighting products; the H models reach 10–15kV for outdoor and industrial equipment.

Do I need extra equipment?

For signal and communication ports you need a CDN61000-5C. LISUN also recommends the PD-E01 protective enclosure, SG-DESK test table and an ITEU-SP4K isolation transformer.
