SC Series IP5X/IP6X Dust Test Chamber – LISUN

SC-500 / SC-010 / SC-015 / SC-020 / SC-010-56K / SC-015-56K

LISUN SC dust chambers for IP5X and IP6X to IEC 60529 and IP5KX/IP6KX to ISO 20653: talc dust, 75µm mesh, vacuum to 10kPa, RT+10 to 60°C, 0.5 to 2m³.

Environmental Test Equipment
Dustproof Test Chamber
Floor-Standing Chamber
IEC 60529:2013 Clauses 13.4–13.6; ISO 20653:2023; IEC 60598-1:2024; IEC 60034-5:2020; VDE 0470-1; GB/T 4208-2017; GB/T 30038-2013
Enquire About This Product
LISUN SC Series IP5X/IP6X Dust Test Chamber

Overview

The LISUN SC series tests how well enclosures keep out dust, to IP5X and IP6X of IEC 60529 and, on the 56K models, IP5KX and IP6KX of ISO 20653 for road vehicle parts. It is used for electrical and electronic products, luminaires, electrical cabinets and components, and automotive and motorcycle parts.

Dry talc is kept circulating in the sealed chamber by a blower so that the dust stays evenly suspended, and settles back to be blown again. A vacuum system can draw air out of the sample enclosure, as IEC 60529 requires for category 1 enclosures, pulling dust-laden air towards any gaps. Vibration stops dust sticking to the walls, and the chamber can be heated. A window and internal LED lamp let you watch the sample, and the dust is easily changed from the bottom of the chamber.

Construction and control

The outer case is baked-enamel steel and the inner chamber and sample rack are stainless steel. A metal mesh with 50µm wires and 75µm gaps controls the dust particle size. A 7-inch touchscreen and Panasonic PLC run the test, and a sample power outlet supports powered testing up to 10A. Earth-leakage and short-circuit protection are fitted.

Key Specifications

Models

ModelWorking spaceStandardDoor / supply
SC-500800 × 800 × 800mmIEC 60529 IP5X, IP6XSingle door, 220V single phase
SC-0101000 × 1000 × 1000mmIEC 60529 IP5X, IP6XSingle door, 220V single phase

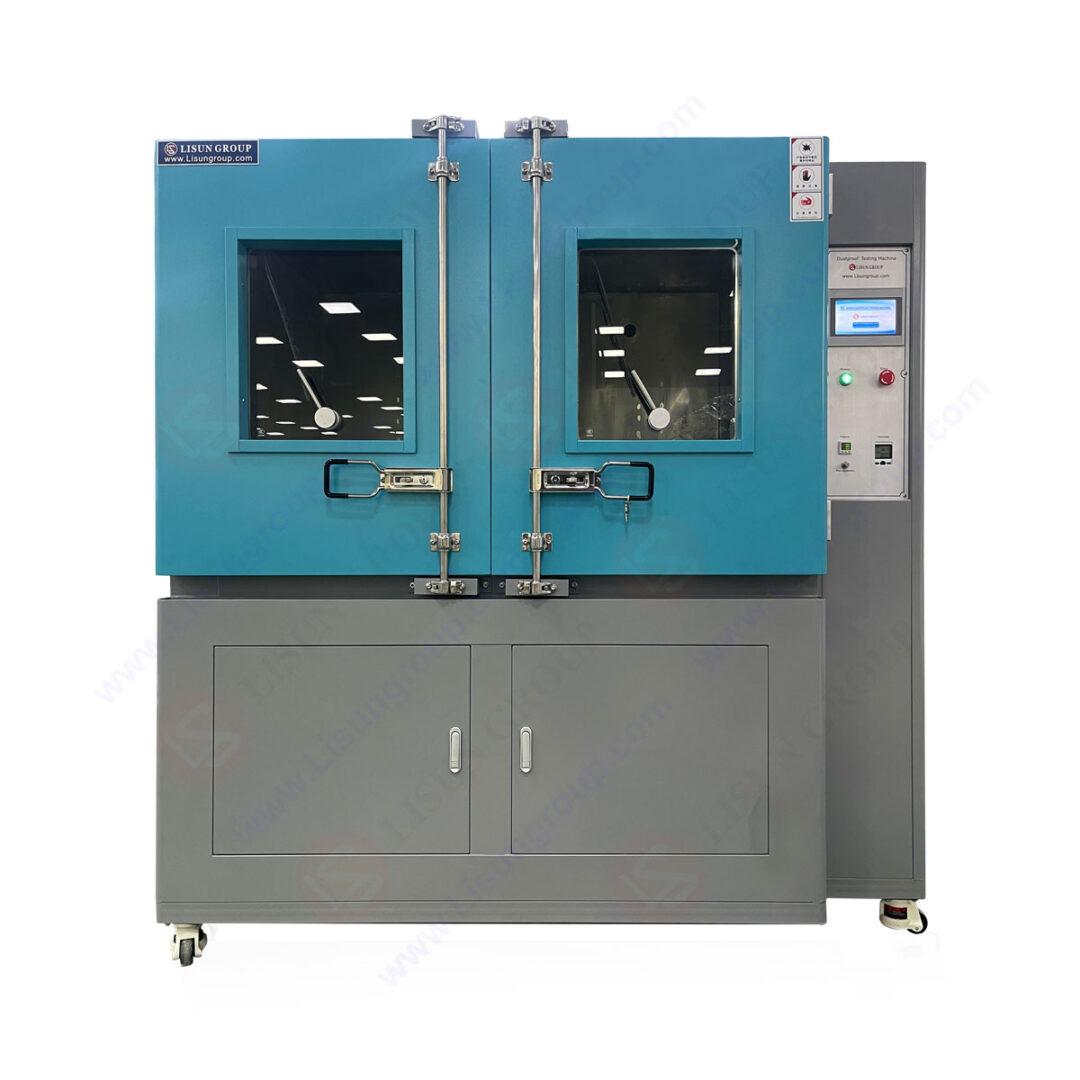

SC-0151000 × 1500 × 1000mmIEC 60529 IP5X, IP6XDouble door, 380V three phase
SC-0201000 × 2000 × 1000mmIEC 60529 IP5X, IP6XDouble door, 380V three phase
SC-010-56K1000 × 1000 × 1000mmIEC 60529 and ISO 20653 IP5KX, IP6KXSingle door, 220V single phase
SC-015-56K1000 × 1500 × 1000mmIEC 60529 and ISO 20653 IP5KX, IP6KXDouble door, 380V three phase

Performance

ParameterValue
TemperatureRT+10 to 60°C
Test dustDry talc, 2–4kg/m³, free-fall circulation
Mesh50µm wire, 75µm spacing
Vacuum0–10kPa, 0–4800 L/h adjustable
Test / vibration time0–999h, ±1s
Sample powerUp to 10A
Control7-inch touchscreen, Panasonic PLC

50Hz as standard, 60Hz to order. Other sizes and walk-in dust rooms can be built.

Features

Applications

Frequently asked questions

What is the difference between IP5X and IP6X?

IP5X is dust-protected: some dust may enter but not enough to affect operation. IP6X is dust-tight: no dust may enter. Both use the same chamber; IP6X is assessed more strictly.

Which model for automotive parts?

The SC-010-56K or SC-015-56K, which also meet ISO 20653 for IP5KX and IP6KX.
