RWG61000-12 Ring Wave Generator (IEC 61000-4-12) – LISUN

RWG61000-12 / RWG61000-12T / RWG61000-12A / RWG61000-12AT

LISUN RWG61000-12 ring wave generators to IEC/EN 61000-4-12 and ANSI C62.41: 100kHz ring wave to 4kV or 6kV, 12Ω/30Ω, built-in single or three-phase CDN.

EMC & EMI Test Equipment
Ring Wave Generator
Bench-top Instrument
IEC 61000-4-12:2017; EN 61000-4-12:2017; ANSI/IEEE C62.41-1991 Clause 10.3; GB/T 17626.12-2023; GJB 151B-2013
Enquire About This Product

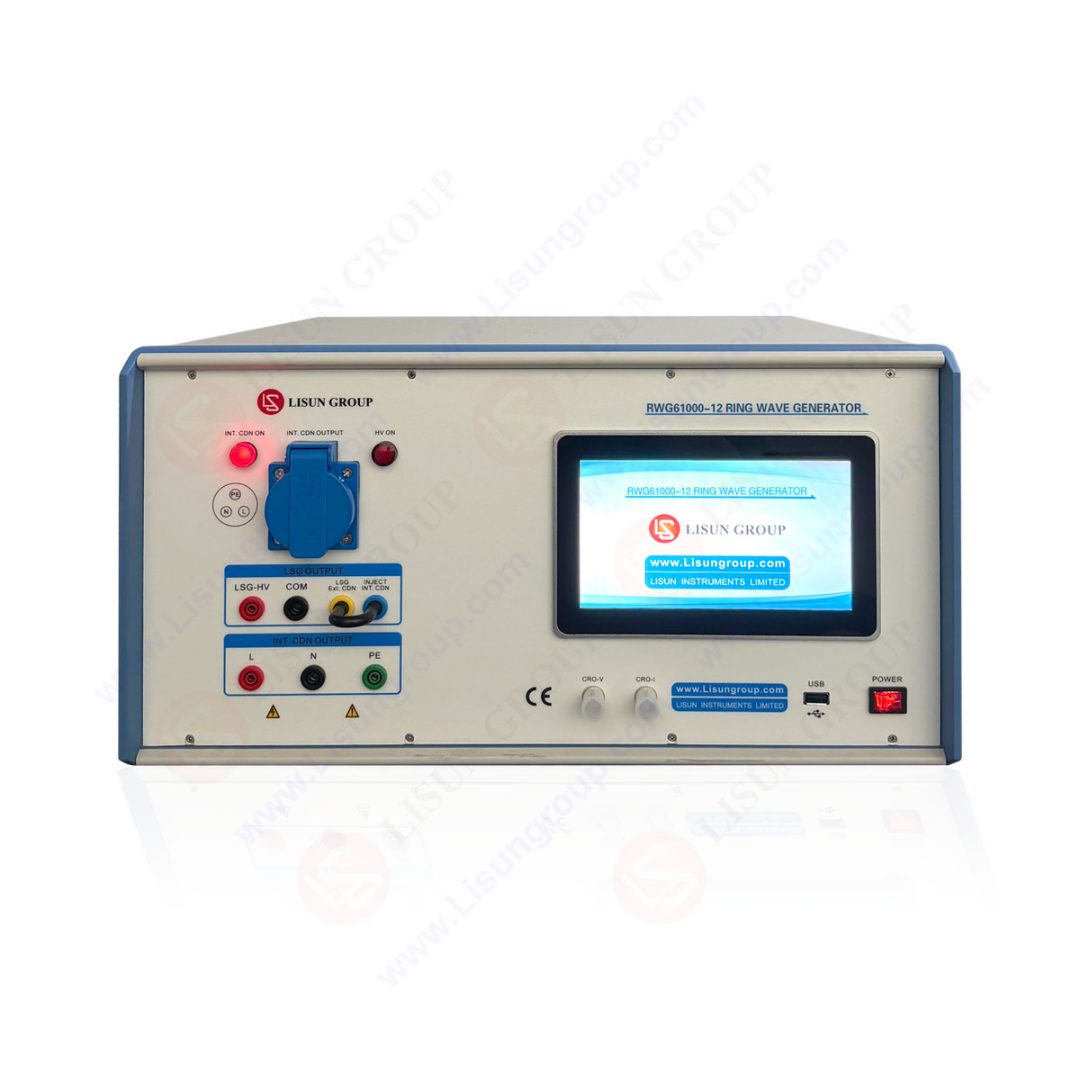

LISUN RWG61000-12 Ring Wave Generator (IEC 61000-4-12)

Overview

A ring wave is a damped 100kHz oscillation caused by switching transients and faults in power systems. The RWG61000-12 series generates the IEC 61000-4-12 ring wave to test how equipment withstands it, revealing weak insulation and poor immunity in power input circuits.

Output reaches 4kV (RWG61000-12/12T) or 6kV (RWG61000-12A/12AT) into 12Ω or 30Ω, with programmable polarity and phase angle. Single-phase models have a built-in 16A CDN and the T models a 20A three-phase, five-wire CDN. A large Android touch screen in English and Chinese runs the tests. Uses include industrial controls, power metering, EV chargers, household appliances and medical equipment.

Key Specifications

SpecificationRWG61000-12RWG61000-12TRWG61000-12ARWG61000-12AT
Output voltageMax 4kVMax 6kV
Max output current333A ±10% at 12Ω; 133A ±10% at 30Ω500A ±10% at 12Ω; 200A ±10% at 30Ω
WaveformOpen-circuit voltage rise 0.5μs; short-circuit current rise 0.2~1μs; oscillation 100kHz ±10%
PolarityPositive, negative, automatic
PhaseAsynchronous or synchronous 0°~360°
Output impedance12Ω, 30Ω
Built-in CDNAC 240V/16A single phaseAC 440V/20A three phase, 5 wireAC 240V/16A single phaseAC 440V/20A three phase, 5 wire
Working powerAC 220V (110V option) ±10%, 50/60Hz
Weightabout 28kgabout 46kgabout 45kgabout 48kg

Features

Applications

Frequently asked questions

Which model do I need?

Pick by test voltage (4kV or 6kV) and whether the product is single or three phase. The T models include a three-phase, five-wire CDN.

Is this the same as a surge test?

No. A surge test (IEC 61000-4-5) uses a unipolar 1.2/50μs pulse; the ring wave is an oscillating 100kHz waveform that stresses circuits differently.
