RSY-LT Hot Wire Ignition Tester (IEC 60695-2-20) – LISUN

RSY-LT

LISUN RSY-LT hot wire ignition (HWI) tester to IEC 60695-2-20 and UL 746A: Ni80/Cr20 coil at 0.26W/mm, 5.4N winding tension, automatic timing, 0.5m³ chamber.

Electrical Safety Test Equipment
Hot Wire Ignition Test
Floor-standing Cabinet
IEC TS 60695-2-20:2024; IEC 60947-1:2020 Annex M; IEC 61800-5-1:2022 Clause 5.2.5.4; UL 746A:2023 Clause 32; GB/T 14048.1-2023 Annex M
Enquire About This Product

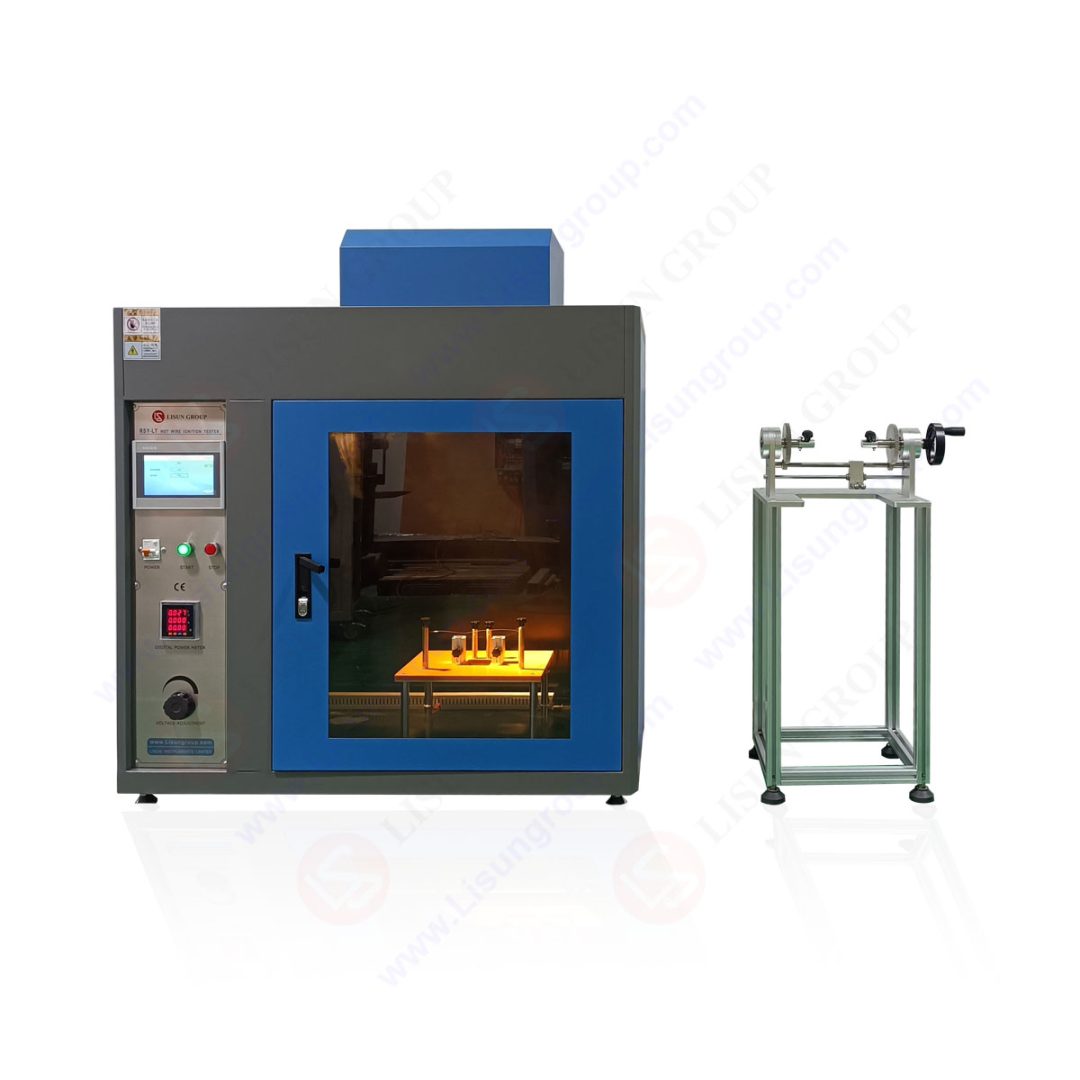

LISUN RSY-LT Hot Wire Ignition Tester (IEC 60695-2-20)

Overview

When a resistance wire or motor winding overheats, the insulating material wrapped around it can ignite. The hot wire ignition (HWI) test reproduces this: a nickel-chromium wire is wound around a plastic bar and heated at a fixed power, and the time until the material ignites is measured. UL 746A uses the result in the HWI performance level category for polymeric materials.

The RSY-LT combines the hot wire supply, a coil winding fixture and the combustion chamber. It pre-anneals the wire, winds it around the sample with 5.4N tension in five turns at 6.3mm spacing, heats it at 0.26W/mm and times the test automatically, reducing operator error and improving repeatability. It is used for plastics, rubber and composites in electrical, appliance, new energy and insulating material industries.

Key Specifications

ItemSpecification
Heating wireNi80/Cr20, Ø0.5mm, 250 ±5mm long, 5.28Ω/m
Heating power0.26W/mm ±4%
Pre-annealing8~12s at 0.26W/mm
Coil winding5 turns, 5.4 ±0.05N tension, 6.3 ±0.2mm spacing, within Ø31.5 ±0.5mm
Test time120s (1~999.9s preset)
Samples125 × 13mm; 0.75, 1.5 or 3mm thick; 5 per test
Sample holder70mm to connector plate, 60mm high
Chamber≥0.5m³ (custom sizes available)
ConstructionHigh-temperature coated steel
OperationLCD touch screen with remote control

Features

Applications

Frequently asked questions

What does the HWI test measure?

The time for a material to ignite when wrapped in an electrically heated wire coil. UL 746A uses it to rate materials for parts that touch or sit near current-carrying conductors.

How many samples are needed?

Five samples per test, 125 × 13mm, in the thickness being evaluated.
