RSB-WC Wire and Cable Flame Tester (IEC 60332-1) – LISUN

RSB-WC / RSB-WC1 / RSB-WC2

LISUN RSB-WC wire and cable vertical flame testers to IEC 60332-1, 1kW flame; RSB-WC1 adds IEC 60695-11-2, RSB-WC2 covers IEC 61386-1 conduit.

Electrical Safety Test Equipment
Flame Test
Floor-standing Cabinet
IEC 60332-1-1:2015; IEC 60332-1-2:2015; IEC 60332-1-3:2015; IEC 60695-11-2:2021 (RSB-WC1); IEC 61386-1:2008 Clause 13.1.3 (RSB-WC2); GB/T 18380.11-2022; GB/T 18380.12-2022; GB/T 18380.13-2022; GB/T 5169.14-2017; GB/T 20041.1-2015
Enquire About This Product

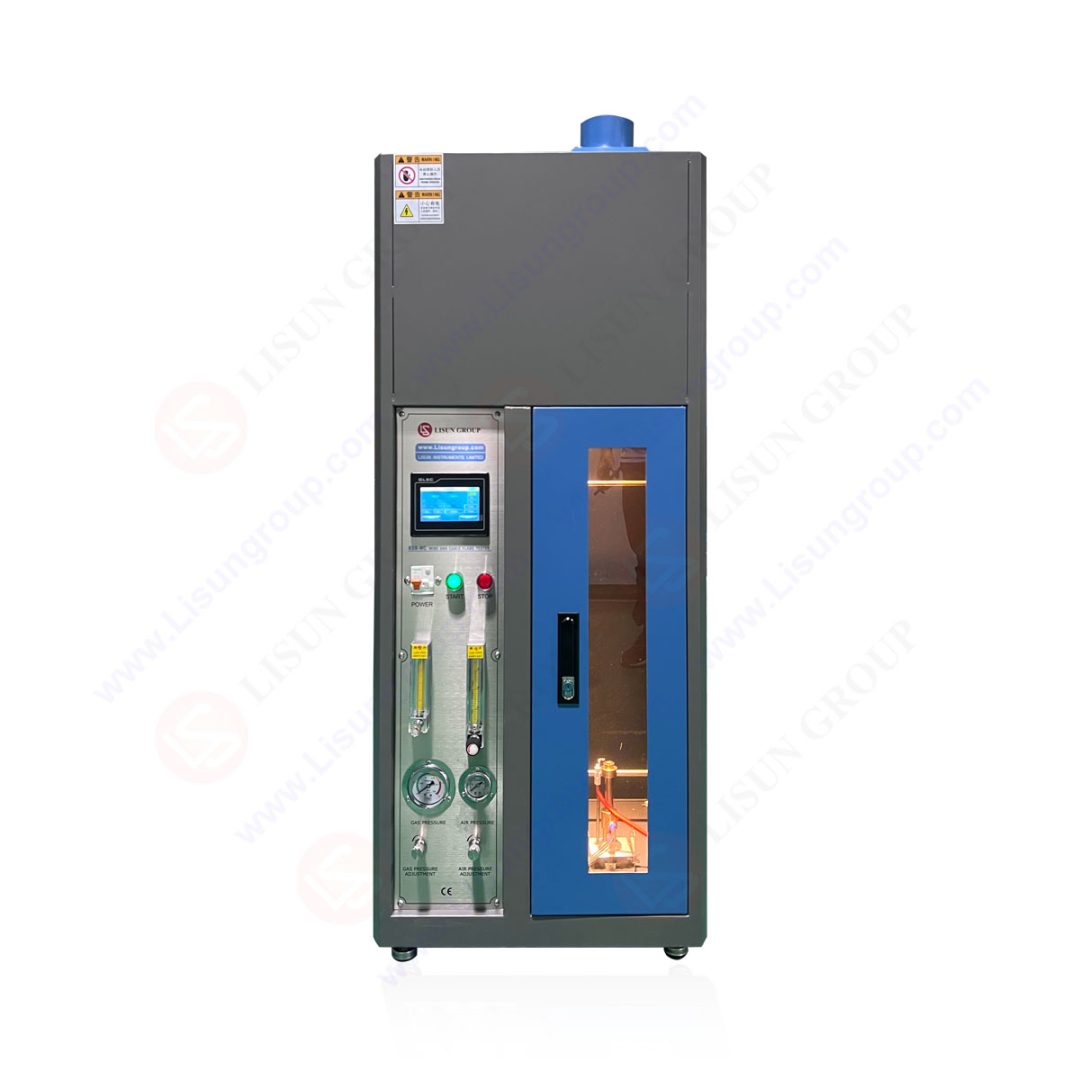

LISUN RSB-WC Wire and Cable Flame Tester (IEC 60332-1)

Overview

IEC 60332-1 is the basic flame test for single insulated wires and cables: a 600mm sample is held vertically and exposed to a 1kW premixed flame, then checked for how far it burns and whether it drops flaming particles. The RSB-WC series are combustion testers built for that test.

The burn chamber is made of steel coated to resist smoke corrosion, with key flame-control and timing components from imported suppliers, automatic test sequencing and digital display of burn time. It takes wires and cables with a conductor diameter over 0.8mm or cross-section over 0.5mm². The RSB-WC1 adds a fume cabinet and meets IEC 60695-11-2 for 1kW flame calibration; the RSB-WC2 meets IEC 61386-1 Clause 13.1.3 for cable conduit systems.

Key Specifications

SpecificationRSB-WCRSB-WC1RSB-WC2
Burn chamber (W×H×D)300×1200×450mm–300×1300×450mm
Fume cabinet (W×H×D)–930×1680×720mm–
StandardsIEC 60332 seriesIEC 60695-11-2 and IEC 60332 seriesIEC 61386-1 Clause 13.1.3
SampleSingle insulated wire or cable, 600 ±25mm
Sample sizeConductor >0.8mm diameter or >0.5mm²
Burner1kW nominal premixed flame
GasPropane ≥95% (user supplied)
Gas flow0.1~1L/min (electronic flow meter optional)

Features

Applications

Frequently asked questions

Which model do I need?

The RSB-WC for IEC 60332-1 cable tests; the RSB-WC1 if you also need IEC 60695-11-2 flame confirmation; the RSB-WC2 for conduit to IEC 61386-1.

Can it test bunched cables?

No. It is for single wires and cables. Bunched cable tests (IEC 60332-3) need a large vertical tray chamber.
