RFCI61000-6 RF Conducted Immunity Test System – LISUN

RFCI61000-6

LISUN RFCI61000-6 conducted RF immunity system to IEC/EN 61000-4-6: 150kHz–230MHz, signal generator, 85W amplifier, power meter and coupler in one 4U unit.

EMC & EMI Test Equipment
RF Conducted Immunity Test
19-inch 4U Instrument
IEC 61000-4-6:2023; EN 61000-4-6:2023; GB/T 17626.6-2017
Enquire About This Product

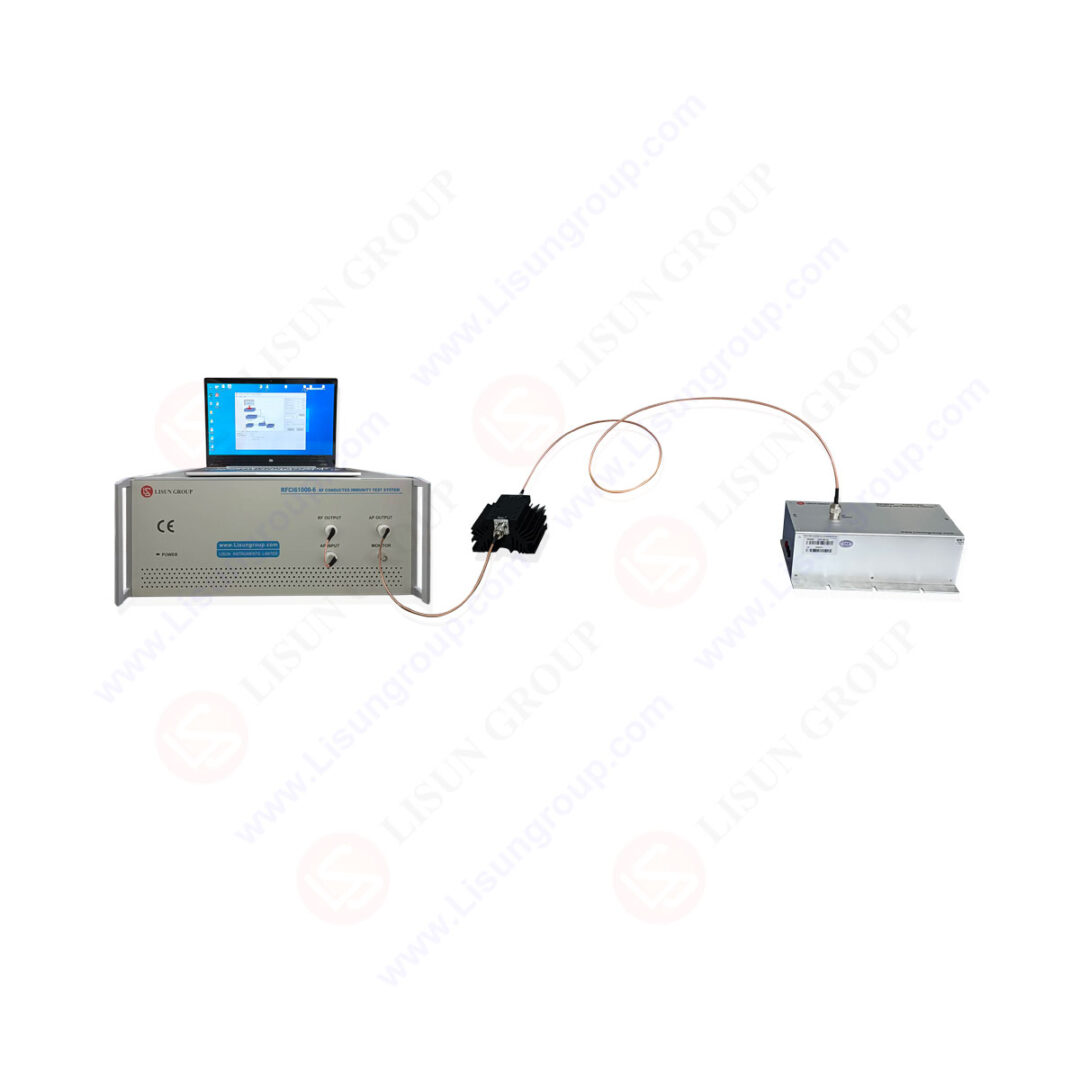

RFCI61000-6 RF Conducted Immunity Test System

Overview

IEC 61000-4-6 tests how equipment copes with RF energy picked up by its cables, from 150kHz to 230MHz. The RFCI61000-6 puts everything needed for that test into one 4U, 19-inch unit: a signal generator, a three-channel power meter, an 85W RF power amplifier and a dual directional coupler.

It supports CW, AM and pulse modulation, measures in average or pulse mode, and works with CDNs, EM injection clamps or current injection clamps, the three injection methods the standard allows. Full-band calibration is automatic and takes under a minute. A 10.1-inch Android touch screen runs it, or it can be controlled from a PC. It is used for power and signal line testing of lighting, medical, power, industrial, renewable energy and communications equipment.

Key Specifications

ItemSpecification
Signal generator
Frequency range / resolution100kHz~300MHz / 1Hz
Frequency stability±0.5ppm
Harmonics / non-harmonics≤-30dBc / ≤-50dBc
Output power-100dBm~3dBm
Amplitude modulation1Hz~10kHz, depth 1%~99%, internal or external
Pulse modulation1Hz~10kHz, duty cycle 1%~99%
Three-channel power meter
Frequency range100kHz~300MHz
Input range / accuracy-85dBm~+10dBm / ±0.5dB
Sampling modesAverage, integration, pulse
RF power amplifier and coupler
Amplifier100kHz~300MHz, 85W, N-type output
Dual directional coupler100kHz~300MHz, 50dB, 100W max input
System
Test frequency range150kHz~230MHz
Test voltageCDN 1~30Vrms; EM clamp 1~18Vrms; current clamp 1~10Vrms
InterfacesLAN, USB, RS485
Control10.1-inch Android touch screen (English/Chinese) or PC software
Supply / sizeAC 100~250V, 50/60Hz / 4U 19-inch

Features

Applications

Frequently asked questions

Which injection method should I use?

IEC 61000-4-6 Clause 7.4.2 (Figure 20) sets the order of preference: CDN where one exists for the cable, otherwise EM clamp or current clamp. The RFCI61000-6 supports all three.

Do I need a separate amplifier?

No. An 85W amplifier is built in.
