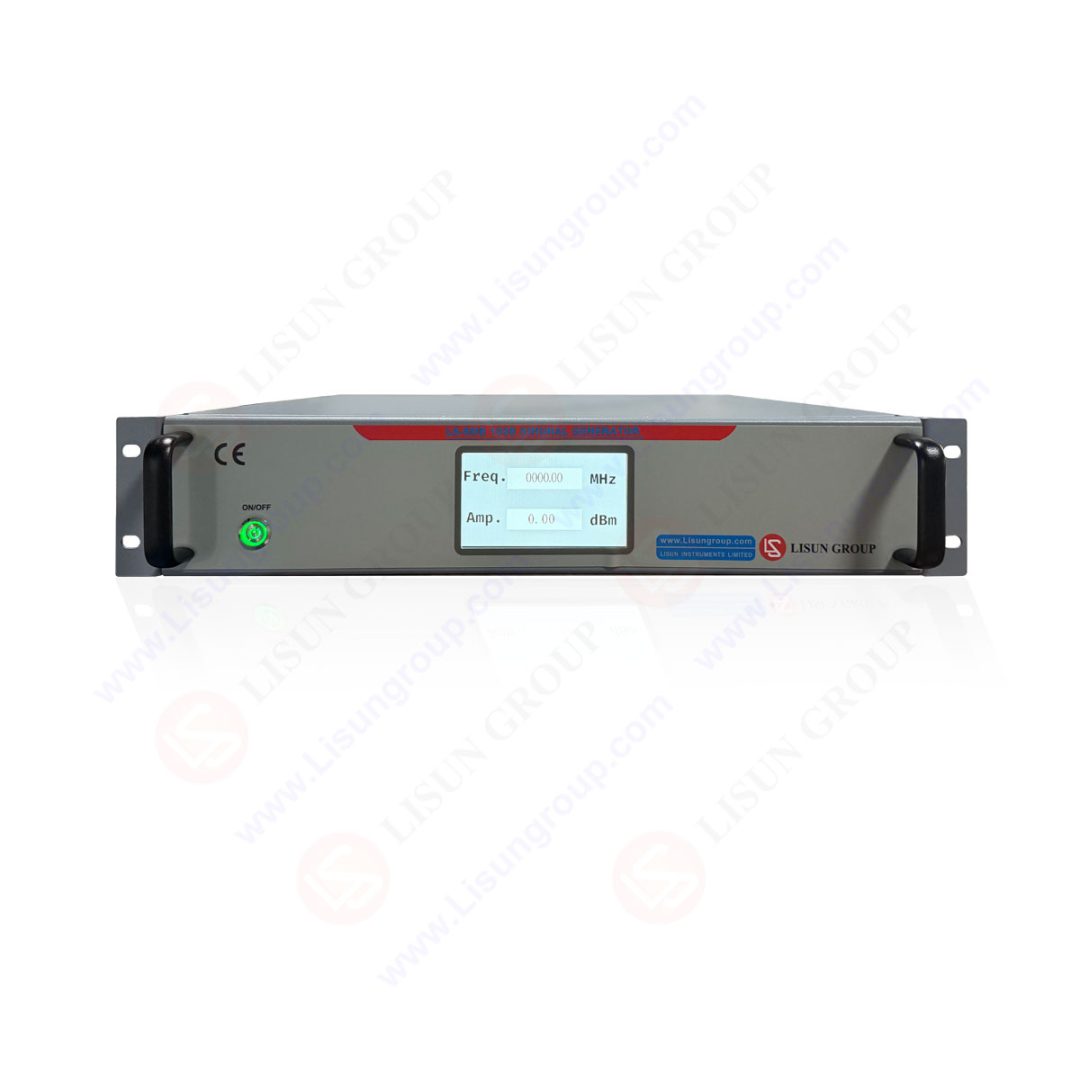

LISUN LS-SMB100B RF Signal Generator (9kHz–6GHz)

Overview

The LS-SMB100B is an RF signal generator covering 9kHz to 6GHz with good level accuracy and spectral purity. It has AM, FM and PM analogue modulation and pulse modulation as standard, and can link to a power meter to compensate for cable loss and flatten the output.

It serves as a signal source in EMC immunity systems, a local oscillator, a transmitter simulator for receiver testing, and an interference source for RF component and production testing. Linear, logarithmic and list sweeps support filter and antenna characterisation. The industrial chassis is built for long continuous runs, and LAN, USB and web control make it easy to integrate into automated systems.

Key Specifications

ItemSpecification
RF
Frequency range9kHz~6GHz
Resolution0.001Hz
Switching speed<5ms (ALC on), <10ms (ALC off) typical
Phase noise<-120dBc/Hz at 1GHz, 20kHz offset (typical)
ReferenceBuilt-in 10MHz, initial accuracy <0.2ppm
Output level
Level range-110~15dBm (9kHz~1MHz); -140~26dBm (1MHz~4GHz); -130~24dBm (4~6GHz)
Resolution / accuracy0.01dB / ≤0.7dB typical
Output VSWR≤1.8
Reverse DC withstand50V
Modulation and sweep
Analogue modulationAM, FM, PM; internal, external or mixed sources
Pulse modulationSingle and double pulse; rise/fall <15ns; period 40ns~300s
SweepLinear/log step (65,535 points), list (500 points); dwell 10ms~100s
General
InterfacesUSB host, USB-TMC, LAN, web control
RF outputN-type female, 50Ω
Supply100~240V, 50/60Hz, 75W
TemperatureOperating 0~50℃; storage -20~70℃

Features

Applications

Frequently asked questions

Can it drive an RF power amplifier for immunity tests?

Yes. Its output level and AM modulation suit driving amplifiers such as LISUN's LS-PA series for IEC 61000-4-3 and 61000-4-6 tests.

Can it be automated?

Yes. It supports LAN, USB-TMC and web remote control.
