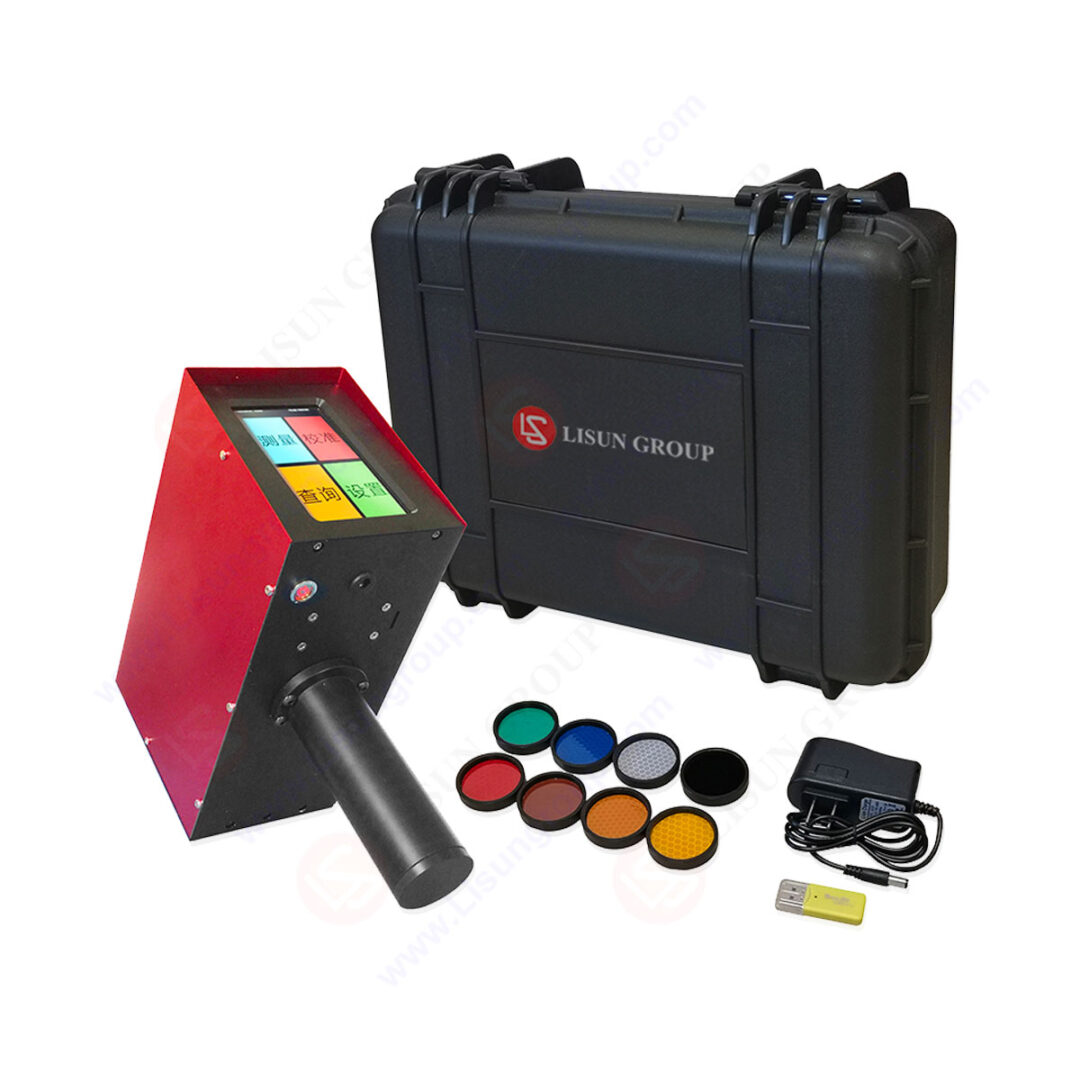

LISUN LS-101 and LS-201C Retroreflectometers

Overview

Retroreflective materials only work if they send enough light back towards the driver. These LISUN instruments measure that performance on site or in the lab, using a CIE Standard Illuminant A light source (2856K) and a silicon detector corrected to the CIE V(λ) function. The series covers two different measurements, so the model you need depends on what you are testing.

LS-101C and LS-101A: retroreflective sheeting and markings

The LS-101C and LS-101A are handheld photoelectric instruments that measure the coefficient of retroreflection (R′) of retroreflective materials. LISUN designs them for quality inspection of traffic sign materials, for material manufacturers, quality supervision bodies and construction and supervision contractors, and for on-site checks by road, rail and aviation authorities. They can also test reflective markings on truck bodies. The LS-101C works at a single geometry (0.2° observation, -4° entrance); the LS-101A adds adjustable observation angles from 0° to 2.0° and entrance angles from -45° to +45°. Both read R′ from 0 to 3,000 cd/lx/m² on an LCD and run from a lithium battery, with a calibration block supplied.

LS-201C: raised pavement markers

The LS-201C measures the coefficient of luminous intensity of raised retroreflective pavement markers (road studs), the main performance figure for these products. It is designed for rectangular markers and suits photometric laboratories, testing centres, highway construction sites and manufacturers checking production quality. It runs on an embedded Windows CE platform with a 320×240 colour display, continuously adjustable observation angle from 0.2° to 2.0°, and stores, recalls and deletes results.

Key Specifications

LS-101C / LS-101A

SpecificationLS-101CLS-101A
Test anglesSingle angleMulti-angle
Observation angle (α)0.2° (accuracy 0.002°)0°~2.0° (accuracy 0.002°)
Angle of incidence (β)-4° (accuracy 0.1°)-45°~+45° (accuracy 0.1°)
Light sourceStandard A light source, colour temperature 2856K
DetectorSilicon diode conforming to the CIE spectral luminous efficiency function V(λ)
DisplayLCD screen
R′ measurement range0~3,000 cd/lx/m²
R′ measurement accuracy (as published)0.1 cd/lx/m²
DataStored on the instrument; export to TF card as CSV

LS-201C

SpecificationLS-201C
Measured quantityCoefficient of luminous intensity of raised pavement markers
Observation angle (α)Continuously adjustable from 0.2° to 2.0°
Incident anglesβ1: ±0°; β2: ±0°, ±5°, ±10°, ±15°, ±20°
Light source colour temperature2856K (CIE Standard Illuminant A)
DetectorSilicon diode with V(λ) correction (CIE standard photometric observer)
Measurement range0~1,999 mcd·lx⁻¹
DisplayLED-backlit colour screen, 320×240
Processor / memory32-bit ARM, 500MHz; SDRAM 64MB; Windows CE platform
FunctionsParameter calibration, automatic zero adjustment, data storage, deletion and query
Power supply7.4V lithium battery pack, 12Ah

LISUN titles the LS-101 page "Pavement Marking Retroreflectometer", while its description and R′ geometry describe retroreflective sheeting and sign materials. Check your test standard's geometry with Finch before ordering.

Features

Applications

Frequently asked questions

Which model do I need for traffic sign sheeting?

The LS-101C or LS-101A. Both measure the coefficient of retroreflection R′ of retroreflective materials; the LS-101A adds adjustable observation and entrance angles for testing at more than one geometry.

Which model measures road studs?

The LS-201C. It measures the coefficient of luminous intensity of raised retroreflective pavement markers, and LISUN lists ASTM E1696, ASTM D4280 and BS EN 1463 among its standards.

Is there an LS-201A?

LISUN currently publishes the LS-201C only. Contact Finch if you need a multi-angle version for raised pavement markers.
