LISUN LS-RCT-500MA tester for RCD trip current and time to IEC 60755 and IEC 61009-1: 0-500mA AC, Type A pulsating DC at 0/90/135°, 6mA DC offset, 1ms timing.
Enquire About This Product

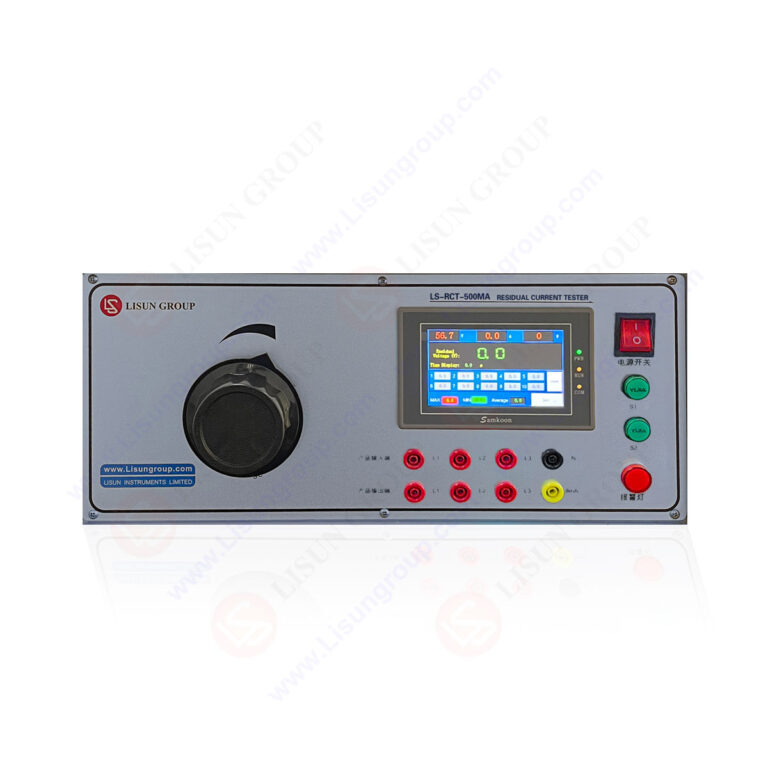

Every residual current device must trip within set limits of current and time. The LS-RCT-500MA tests these operating characteristics on RCDs, RCBOs and residual current circuit breakers, supplying a controlled residual current and measuring the trip current and break time.
It outputs AC residual current from 0 to 500mA and three-phase voltage from 0 to 420V. For Type A devices it supplies pulsating DC at phase angles of 0° (500mA), 90° (500mA) and 135° (300mA), in either polarity and with or without a 6mA smooth DC offset. Trip time is measured with 1ms resolution and 5ms accuracy, and the tester is operated from a touch screen.
| Item | Specification |
|---|---|
| Supply | AC 220~240V, 50/60Hz |
| Control | Touch screen |
| Residual current | AC 0~500mA, 0.1mA resolution |
| Voltage output | Three-phase 0~420V, 0.1V resolution |
| Display accuracy | Class 1 |
| Type A / AC phase angles | 0° (500mA), 90° (500mA), 135° (300mA) |
| Polarity | Positive, negative, positive + 6mA DC, negative + 6mA DC |
| Timing | 5ms accuracy, 1ms resolution |
| Weight | About 20kg |
No. It covers Type AC and A; for Type B and F, see the LS-RCT-ABCF7A.
